Description

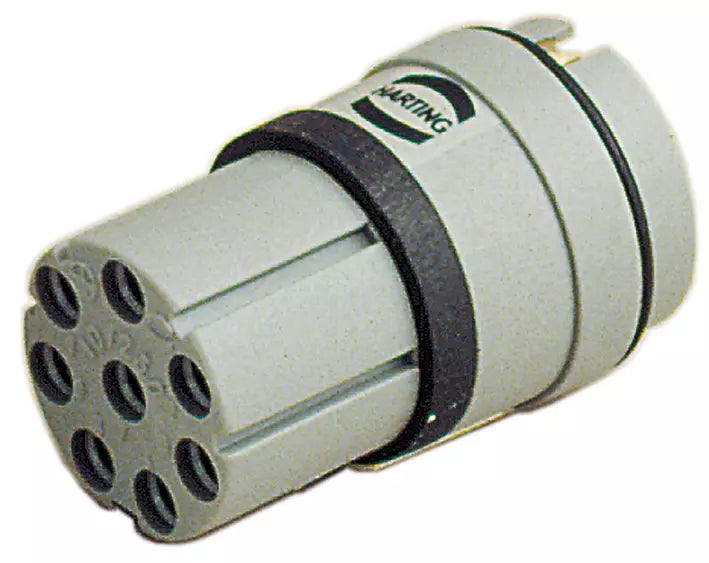

xThis insert is a female crimp-termination component with 7 contacts, rated for 250 V and 10A, housed in a PA insert body in pebble grey. It forms part of a modular connector system used to build up multi-contact connections in industrial enclosures and machine wiring. With a mating cycle rating of 500 or more, it suits applications requiring repeated connect/disconnect operations, such as panel interconnects and field wiring on automation equipment.
Key specifications
- Rated voltage: 250 V
- Connection: Female / 7 Contacts
- Flammability: HB
Specifications
x| Tariff | 85366990 |
| GTIN | 5713140022706 |
| ETIM | EC003557 |
| Compliance/Certifications | UL 1977 ECBT2.E235076 CSA-C22.2 No. 182.3 ECBT8.E235076 |
| Flammability | HB |
| Material: Insert | PA |
| Packaging Size | 10 pc(s) |
| Weight (g) | 8.46g |
| Connection Type | Female / 7 Contacts |
| Connection Style | Crimp termination |
| Mating Cycles / Life Span | ≥500 |
| Rated Voltage | 250 V |
| Rated Operating Current | 10A |
