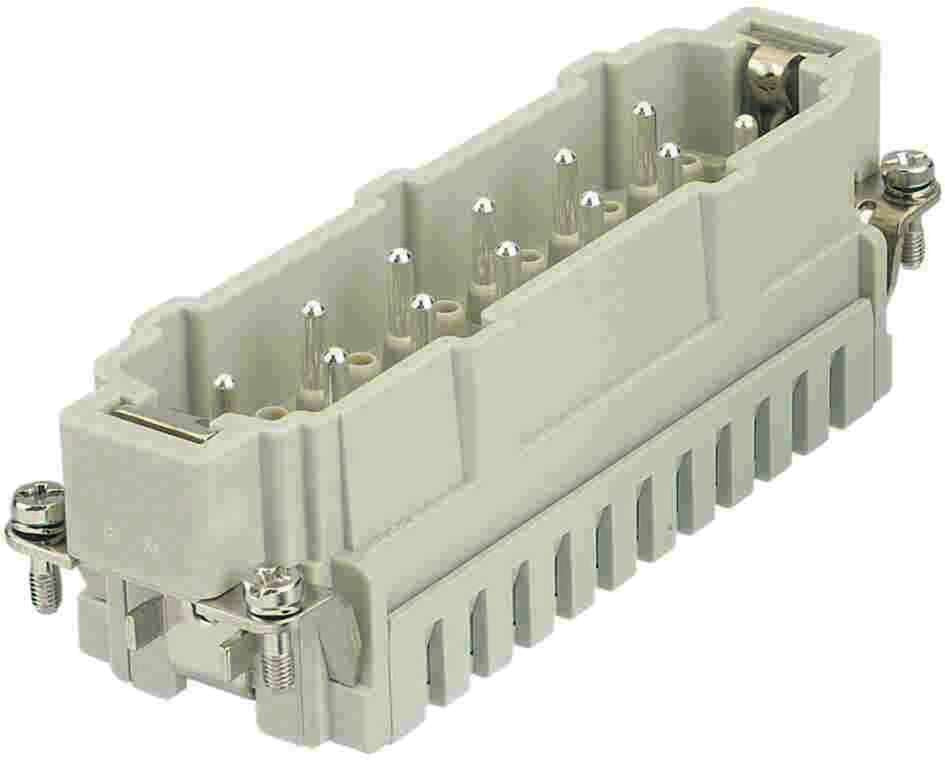

Harting Insert, cage-clamp, male, size 24B, c/s 0.14 - 2.5mm² Part number 09340102616

Product Overview

The Han 10HvES-M is a high-voltage male connector insert featuring innovative cage-clamp termination technology for quick, tool-free wire connections. Part of the Han® Hv ES series, this insert is specifically designed for high-voltage applications up to 830V, combining the convenience of cage-clamp technology with the robust performance required for demanding industrial environments. The insert offers 10 positions plus PE contact, making it ideal for applications requiring reliable high-voltage connections with rapid installation capabilities.

Key Features

• 10 positions plus PE contact for high-voltage connectivity
• Cage-clamp termination technology - no tools required for wire connection
• Male gender configuration
• Designed for high-voltage applications up to 830V
• Wide conductor cross-section range: 0.14 to 2.5 mm²
• Silver-plated copper alloy contacts for optimal conductivity
• Pebble grey (RAL 7032) polycarbonate housing
• Quick and secure wire insertion without special tools
• Vibration-proof design with spring-loaded cage mechanism

Technical Specifications

• Current Rating: 16A
• Rated Voltage: 830V
• Rated Impulse Voltage: 8kV
• Conductor Cross-Section: 0.14 - 2.5 mm²
• Wire Size: AWG 26 - AWG 14
• Number of Contacts: 10 + PE
• Temperature Range: -40°C to +125°C
• Housing Size: 10B
• Series: Han® Hv ES
• Termination Type: Cage-clamp
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper alloy with silver plating
• Flammability Rating: UL94 V-0
• Pollution Degree: 3
• Stripping Length: 8-9mm

Installation Advantages

• Tool-Free Connection: Cage-clamp technology eliminates need for crimping or screwing tools
• Time-Saving: Significantly reduces installation time compared to traditional termination methods
• Secure Connection: Spring-loaded cage mechanism ensures consistent contact pressure
• Visual Inspection: Clear access for verifying proper wire insertion
• Vibration Resistant: Maintains secure connection even under vibration or shock
• Reusable: Wires can be easily removed and reconnected using release tool
• Error Prevention: Reduced risk of incorrect torque or loose connections

Applications

Ideal for high-voltage industrial applications requiring quick installation:

• Railway and transportation systems with high-voltage requirements
• Wind energy installations
• Solar power systems and inverters
• Industrial machinery with elevated voltage circuits
• Power distribution systems above 600V
• Electric vehicle charging infrastructure
• High-voltage control cabinets
• Applications subject to vibration where cage-clamp reliability is essential

Compatibility

• Compatible with Han® Hv E series hoods and housings
• Works with Size 10B housings designed for high-voltage applications
• Can be used for rack and panel mounting applications
• Compatible with corresponding Han 10HvES-F female inserts for complete connectivity
• Suitable for use in Han-Modular® systems where high voltage is required

Safety Features

• High Voltage Rating: Specifically designed for applications up to 830V
• Touch Protection: Integrated design prevents accidental contact
• Secure Locking: Spring mechanism prevents loosening under vibration
• Clear Marking: Numbered contacts for proper wire identification
• Pollution Degree 3: Suitable for industrial environments

Important Configuration

• Connectors should not be mated or unmated under electrical load
• Ensure proper high-voltage safety procedures during installation
• Wire stripping length of 8-9mm is critical for proper cage-clamp connection
• Use appropriate high-voltage rated hoods and housings
• Follow all applicable electrical codes for high-voltage installations

Certifications and Compliance

• Standards: IEC 61984, EN 60664-1
• High Voltage Standards: Compliant with 830V requirements
• UL Certification: According to applicable standards
• CSA Certification: According to applicable standards
• RoHS: Compliant with applicable exemptions
• ELV Status: Compliant
• REACH Compliance: According to current regulations
• Fire Protection: EN 45545-2 compliant for railway vehicles
• Country of Origin: Germany

Environmental Compliance

• Operating temperature: -40°C to +125°C
• Storage temperature: -40°C to +85°C
• Contains lead as part of copper alloy composition
• California Proposition 65: Contains lead and nickel
• REACH SVHC substance declaration available
• Meets railway vehicle fire protection standards
