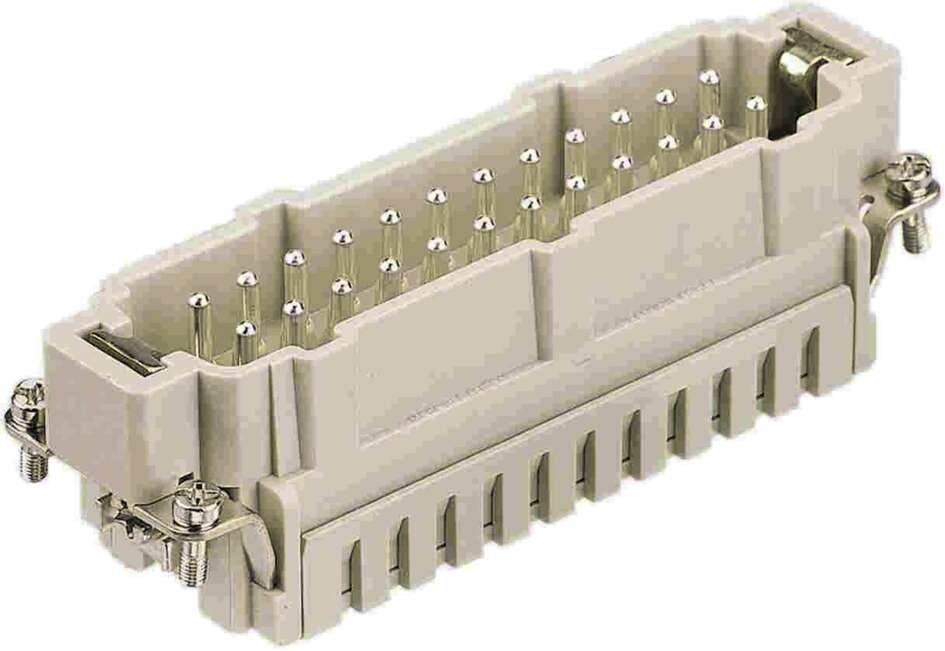

Harting Insert, cage-clamp, male, size 24B, 0.14 - 2.5mm²

Product Overview

The Han 24 ES-M insert is a high-performance male connector insert featuring cage-clamp termination technology for quick and tool-free wire connections. This 24-contact rectangular Han ES insert is designed for heavy-duty power applications where rapid and reliable termination is essential. With its innovative cage-clamp design, this insert eliminates the need for special tools while ensuring secure connections in demanding industrial environments.

Key Features

• 24 positions plus PE contact for comprehensive connectivity
• Cage-clamp termination technology - no tools required for wire connection
• Male gender configuration with numbered contacts (1-24)
• Wide wire cross-section range: 0.14 to 2.5 mm²
• Silver-plated copper alloy contacts for optimal conductivity
• Light grey (RAL 7032) polycarbonate housing
• Quick and simplistic termination for time-saving installation
• Mechanical working life of ≥500 mating cycles

Technical Specifications

• Current Rating: 16A
• Rated Voltage: 500V (600V UL/CSA)
• Rated Impulse Voltage: 6kV
• Conductor Cross-Section: 0.14 - 2.5 mm²
• Wire Size: AWG 26 - AWG 14
• Contact Resistance: ≤1 mΩ
• Insulation Resistance: >10¹⁰ Ω
• Temperature Range: -40°C to +125°C
• Pollution Degree: 3
• Stripping Length: 8-9mm
• Housing Material: Polycarbonate (PC)
• Contact Material: Copper alloy with silver plating
• Flammability Rating: UL94 V-0
• Housing Size: 24B
• Number of Contacts: 24 + PE (25 total)

Installation Advantages

• Tool-Free Connection: Cage-clamp technology allows for quick wire insertion without special tools
• Time-Saving: Significantly reduces installation time compared to screw termination
• Secure Connection: Spring-loaded cage mechanism ensures consistent contact pressure
• Visual Inspection: Clear access for checking wire insertion and connection integrity
• Vibration Resistant: Cage-clamp design maintains secure connection even under vibration
• Reusable: Wires can be easily removed and reconnected using release tool

Applications

Ideal for industrial connectivity applications requiring quick installation:

• Factory automation systems with frequent configuration changes
• Industrial machinery and equipment requiring rapid maintenance
• Rail technology installations
• Wind energy applications
• Control cabinet wiring where tool-free installation is preferred
• Power distribution systems
• Field installations where tooling availability is limited
• Applications subject to vibration or shock

Compatibility

• Compatible with Size 24B hoods and housings
• Works with all Han® B series housings
• Can be used for rack and panel mounting applications
• Compatible with corresponding Han ES female inserts for complete connectivity solutions
• Part of the comprehensive Han® ES series with cage-clamp technology

Important Configuration

• Connectors should not be mated or unmated under electrical load
• Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection
• Wire stripping length of 8-9mm is critical for proper cage-clamp connection

Certifications and Compliance

• Standards: IEC 60664-1, IEC 61984
• UL Certification: Compliant with applicable standards
• CSA Certification: Compliant with applicable standards
• RoHS: Compliant with applicable exemptions
• ELV Status: Compliant
• China RoHS: Compliant
• REACH Compliance: SVHC substances present (Lead)
• Fire Protection: EN 45545-2 compliant for railway vehicles
• ECCN: EAR99
• Country of Origin: Germany

Environmental Compliance

• Contains lead as part of copper alloy composition
• California Proposition 65: Contains lead and nickel
• REACH SVHC substance declaration available
• Meets railway vehicle fire protection standards
