Harting Insert, cage-clamp, male, c/s 0.14 - 2.5mm², 16A

Product Overview

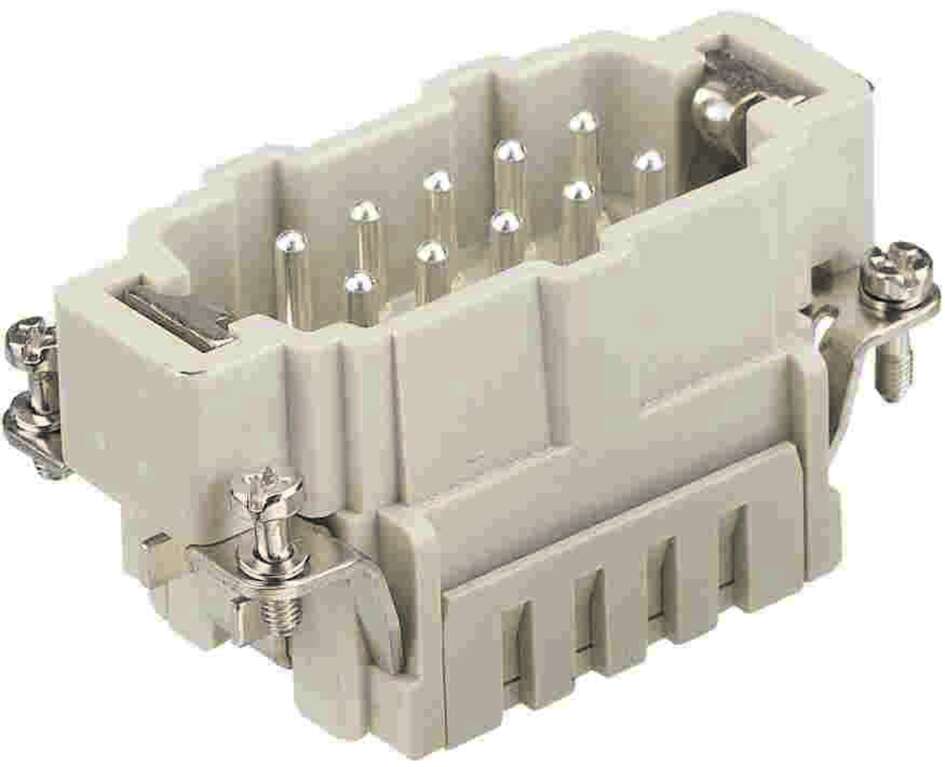

The Han ES 10 POS. M INSERT (SKU: 09330102616) is an advanced 10-position male insert featuring cage-clamp termination technology for tool-free wire connections. Part of the Han® ES series, this insert provides reliable 16A current capacity with spring-loaded terminals that ensure secure connections without the need for special tools. Featuring a 10+PE configuration in size 10B format, this insert delivers efficient power distribution for mechanical engineering, wind energy, and industrial automation applications requiring quick, reliable terminations.

Key Features:

• 10-Position Configuration: 10 contacts plus protective earth (PE) connection
• Cage-Clamp Technology: Tool-free, spring-loaded wire termination
• 16A Current Rating: Robust current capacity for industrial applications
• Wide Wire Range: Accepts conductors from 0.14mm² to 2.5mm²
• Temperature Resistant: Operating range from -40°C to +125°C
• Quick Installation: No special tools required for wire termination
• Long Service Life: Mechanical working life ≥500 mating cycles
• UL/CSA Certified: Rated for 600V according to UL and CSA standards

Technical Specifications:

• Article Number: 09 33 010 2616
• Category: Inserts
• Series: Han® ES
• Termination Method: Cage-clamp termination
• Gender: Male
• Number of Contacts: 10 + PE
• Rectangular Shell Size: 10B
• Current Rating: 16A
• Voltage Rating: 500V (IEC), 600V (UL/CSA)
• Wire Size Range: AWG 26 to AWG 14 (0.14mm² to 2.5mm²)
• Stripping Length: 7-9mm
• Operating Temperature: -40°C to +125°C
• Flammability Class: UL 94 V-0
• Mechanical Life: ≥500 mating cycles
• Certification: CSA-C22.2 No. 182.3 PVVA8.E318390

Applications:

Essential for industrial power distribution requiring quick, tool-free wire connections. Ideal for mechanical engineering equipment, wind energy installations, industrial automation systems, control cabinet connections, field installations, and applications where rapid assembly and maintenance accessibility are critical for operational efficiency and reduced downtime.

Compatibility:

• Housing Compatibility: Compatible with 10B size hoods and housings
• Series Compatibility: Works with Han® ES power connector components
• Mating Insert: Pairs with Han 10 ES-F insert (09330102716)
• System Integration: Designed for Han® ES industrial connector systems
• Wire Compatibility: Accepts wire sizes from 0.14mm² to 2.5mm²
• Standard Compliance: UL508 certified
• RoHS Compliance: Yes

Installation & Tools:

• Tool-Free Termination: Cage-clamp technology requires no crimping or screwing tools
• Wire Preparation: Strip wire to 7-9mm length
• Wire Range: Accommodates AWG 26 to AWG 14 (0.14mm² to 2.5mm²)
• Spring-Loaded Contacts: Maintains consistent contact pressure
• Mechanical Security: Locking clamp provides vibration and shock resistance
• Quick Connection: Push-in wire termination for rapid assembly
• PE Connection: Integrated protective earth terminal
• Maintenance Friendly: Easy wire removal and replacement

Download existing graphical data for this product:

• Product Datasheet
• Technical Drawing
• Product Declaration Certificate
