Harting Insert, cage-clamp, female, c/s 0.14 - 2.5mm²

Product Overview

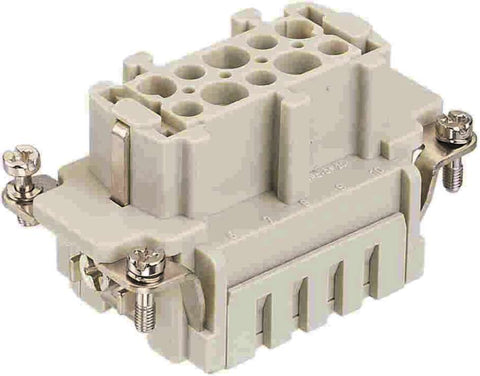

The Han 10 ES-F insert (SKU: 09330102716) is an advanced 10-position female insert featuring cage-clamp termination technology for tool-free wire connections. Part of the Han® ES series, this insert provides reliable 16A current capacity with spring-loaded terminals that ensure secure connections without requiring special tools. Featuring a 10+PE configuration in size 10B format with durable polycarbonate construction, this insert delivers efficient power reception for mechanical engineering, wind energy, and industrial automation applications requiring quick, reliable terminations.

Key Features:

• 10-Position Configuration: 10 female contacts plus protective earth (PE) connection
• Cage-Clamp Technology: Tool-free, spring-loaded wire termination
• 16A Current Rating: Robust current capacity for industrial applications
• Wide Wire Range: Accepts conductors from 0.14mm² to 2.5mm² (AWG 26-14)
• Temperature Resistant: Operating range from -40°C to +125°C
• Quick Installation: No crimping or screwing tools required
• Long Service Life: Mechanical working life ≥500 mating cycles
• Silver-Plated Contacts: Copper alloy contacts with silver plating for superior conductivity

Technical Specifications:

• Article Number: 09 33 010 2716
• Category: Inserts
• Series: Han® ES
• Termination Method: Cage-clamp termination
• Gender: Female (socket)
• Number of Contacts: 10 + PE
• Rectangular Shell Size: 10B
• Current Rating: 16A
• Voltage Rating: 500V AC, 6kV impulse rated
• Wire Size Range: AWG 26 to AWG 14 (0.14mm² to 2.5mm²)
• Operating Temperature: -40°C to +125°C
• Housing Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy, silver plated
• Flammability Class: UL 94 V-0
• Mechanical Life: ≥500 mating cycles
• Dimensions: 63.8mm L x 35.6mm W x 34mm H
• Pollution Degree: 3

Applications:

Essential for industrial power distribution requiring quick, tool-free wire connections with female receiving contacts. Ideal for mechanical engineering equipment, wind energy installations, industrial automation systems, control cabinet connections, field installations, and applications where rapid assembly, maintenance accessibility, and reliable power reception are critical for operational efficiency and reduced downtime.

Compatibility:

• Housing Compatibility: Compatible with 10B size hoods and housings
• Series Compatibility: Works with Han® ES power connector components and Han® 3A series
• Mating Insert: Pairs with Han ES 10 POS. M INSERT (09330102616)
• System Integration: Compatible with Han D®, Han DD®, Han E®, Han® EE/EEE, Han® ES series
• Wire Compatibility: Accepts wire sizes from 0.14mm² to 2.5mm²
• Standard Compliance: UL508 certified
• RoHS Compliance: Yes

Installation & Tools:

• Tool-Free Termination: Cage-clamp technology requires no special tools
• Wire Preparation: Simple wire stripping for insertion
• Wire Range: Accommodates AWG 26 to AWG 14 (0.14mm² to 2.5mm²)
• Spring-Loaded Contacts: Maintains consistent contact pressure
• Mechanical Security: Locking clamp provides vibration and shock resistance
• Quick Connection: Push-in wire termination for rapid assembly
• PE Connection: Integrated protective earth terminal
• Maintenance Friendly: Easy wire removal and replacement
