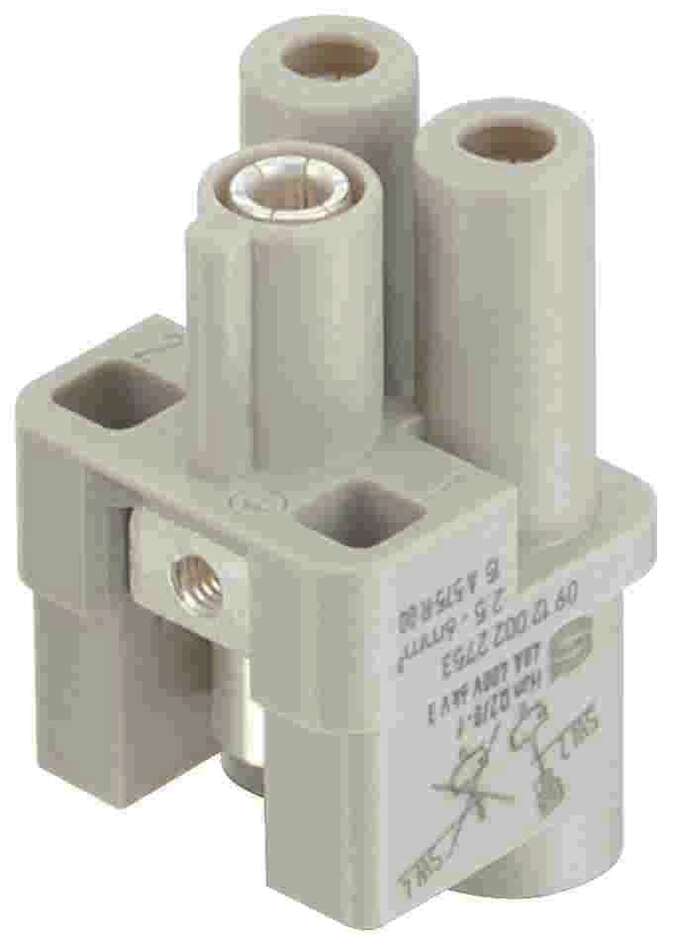

Harting Insert, axial screw, female, size 3A, c/s 2.5 - 6mm² Part number 09120022753

Product Overview

The Han Q 2/0-sti 2,5-6 mm² is a high-performance connector insert designed for the HARTING Han® Q series. This compact insert features finger protection and is optimized for power applications requiring high contact density in space-constrained installations. The insert accommodates conductor cross-sections from 2.5 to 6 mm², making it ideal for control and signal applications.

Key Features

• Series: Han® Q
• Identification: 2/0
• Conductor Cross-Section: 2.5 - 6 mm²
• Features: Finger protection (sti)
• Category: Inserts
• Rated Voltage (UL): 400 V
• Rated Voltage (CSA): 400 V
• Operating Temperature: -40°C to +125°C
• Flammability Rating: UL 94 V-0
• Certification: CSA-C22.2 No. 182.3

Technical Specifications

This insert is part of the Han® Q series, characterized by its high contact density and space-saving, compact design. The 2/0-sti configuration provides finger protection safety features while accommodating conductor cross-sections from 2.5 to 6 mm². The insert operates reliably across a wide temperature range from -40°C to +125°C and is rated for 400V applications according to both UL and CSA standards. The UL 94 V-0 flammability rating ensures safe operation in demanding industrial environments.

Compliance & Environmental

• UL 94 V-0 flammability rating
• CSA-C22.2 No. 182.3 certified
• UL and CSA voltage ratings: 400V
• Wide operating temperature range: -40°C to +125°C
• Finger protection safety features

Applications

Ideal for power, signal, and control applications where panel space is at a premium. The Han® Q series is perfect for industrial automation, control panels, machinery, and equipment requiring high contact density in compact installations. The finger protection feature makes it suitable for applications where safety is paramount, while the 400V rating supports a wide range of industrial power applications.

Download existing graphical data for this product:

• Product Datasheet (PDF)
• Product Details & CAD Models
• Technical Specifications & 3D Models
• HARTING eCatalogue
