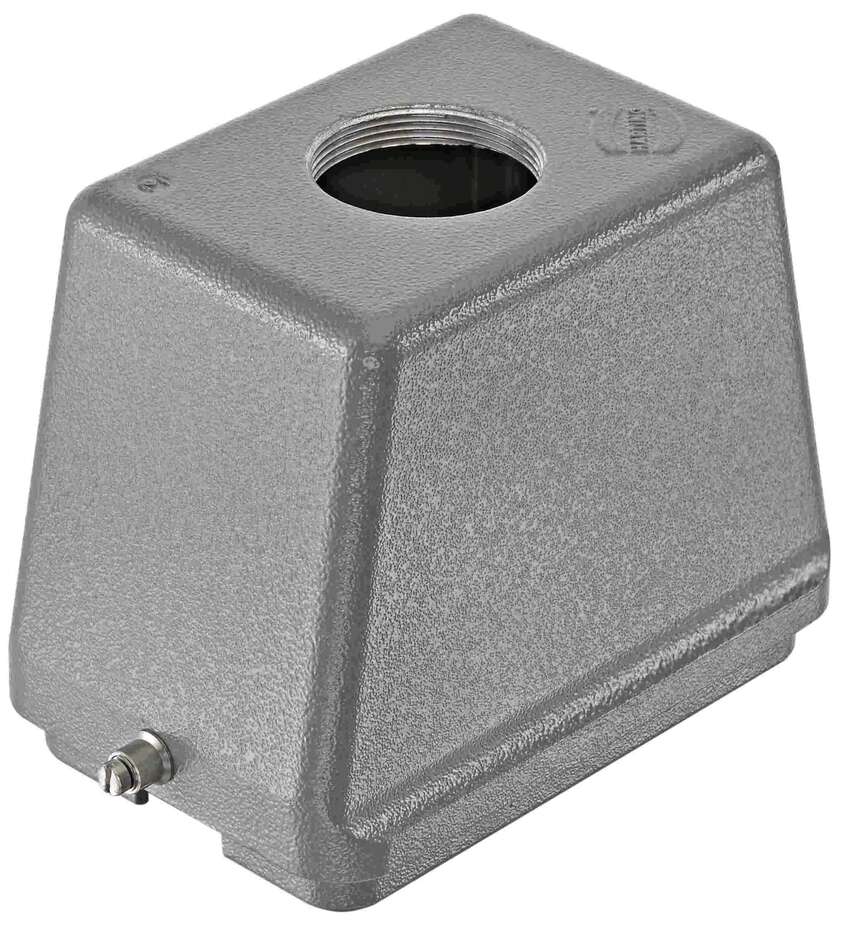

Harting Hood, top entry, M40, single locking, size 48B

Product Overview

The Han 48 B Hood Top Entry M40 is a high construction connector hood for industrial applications requiring vertical cable routing with maximum cable capacity and internal volume. Features aluminum die-cast construction with single locking lever mechanism and top entry M40 cable gland for reliable electrical connections in demanding heavy-duty industrial environments with streamlined operation and vertical access.

Key Features

• Top entry hood with high construction design
• Single locking lever mechanism for quick connections
• Size 48B with single M40 top cable entry
• Aluminum die-cast construction, RAL 7037 finish
• High construction profile for maximum internal volume
• IP65 protection, suitable for harsh industrial environments

Technical Specifications

• Housing Size: 48B
• Construction: High construction top entry hood
• Cable Entry: Top entry, 1 x M40
• Locking System: Single locking lever
• Temperature Range: Industrial operating range per IEC 61984
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: High-cycle industrial rating
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• High construction design provides maximum internal volume
• Single locking lever provides quick and secure mechanical connection
• Top entry configuration for vertical cable routing and access
• M40 entry accommodates maximum cable capacity requirements

Applications

• Heavy-duty industrial automation systems requiring maximum internal volume
• High-power machinery with vertical cable routing and large cable requirements
• Control systems needing maximum space with M40 connections
• Applications demanding quick single-lever operation with top-entry access

Compatibility

• Compatible with Han 48B series bases and inserts
• Part of Han B® connector system
• High construction top entry hood for heavy-duty applications

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Durability: Industrial-grade construction for harsh environments
• Internal Volume: Maximum space provided by Size 48B high construction design

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
