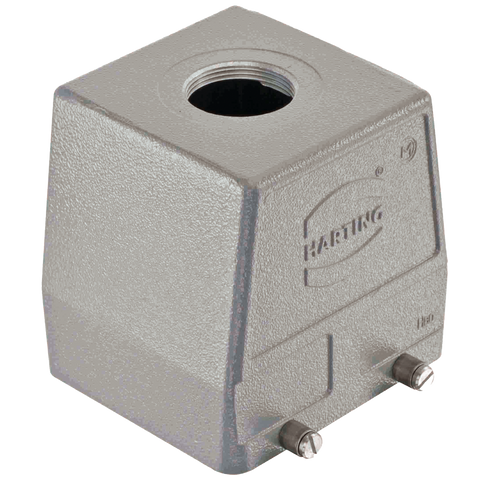

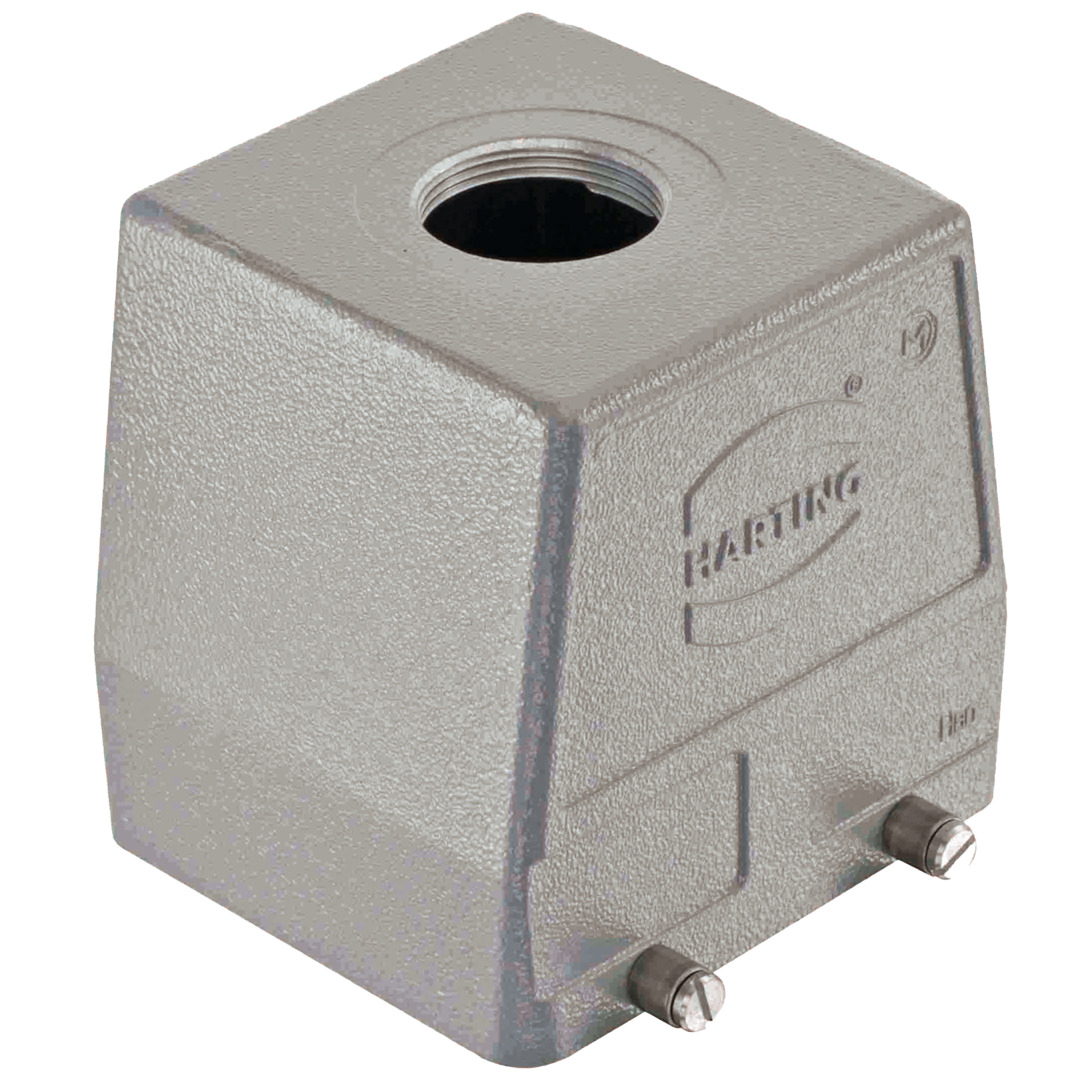

Harting Hood, top entry, M40, double locking, size 32B Part number 19300320428

Product Overview

The Han B Hood Top Entry 4 Reels M40 is a high construction connector hood for industrial applications requiring vertical cable routing with advanced cable management systems and larger cable capacity. Features aluminum die-cast construction with double locking lever mechanism and top entry M40 cable gland with four-reel system for enhanced cable strain relief and routing control in demanding heavy-duty industrial environments.

Key Features

• Top entry hood with high construction design
• Four-reel system for advanced cable management
• Size 32B with single M40 top cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Double locking lever mechanism for secure connections
• IP65 protection, suitable for harsh industrial environments

Technical Specifications

• Housing Size: 32B
• Construction: High construction top entry hood
• Cable Entry: Top entry, 1 x M40 with 4-reel system
• Cable Management: Four-reel system for enhanced strain relief
• Locking System: Double locking lever
• Temperature Range: Industrial operating range per IEC 61984
• Protection: IP65, UL 50/UL 50E type rating
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: High-cycle industrial rating
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• High construction design provides maximum internal volume
• Four-reel system offers superior cable strain relief and management
• Top entry configuration for vertical cable routing and access
• Double locking lever system ensures secure mechanical connection
• M40 entry accommodates larger cable requirements

Applications

• Heavy-duty applications requiring advanced cable management with large cable capacity
• Industrial systems with extreme cable stress and maximum strain relief requirements
• High-power equipment needing enhanced cable protection with M40 capacity
• Control systems demanding superior cable management with top entry access

Compatibility

• Compatible with Han 32B series bases and inserts
• Part of Han B® connector system
• High construction hood with advanced cable management for heavy-duty applications

Environmental Protection

• Protection: IP65 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Durability: Industrial-grade construction with maximum cable protection
• Cable Management: Four-reel system for superior strain relief

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Origin: Germany
