Harting Hood, single locking, top entry, PG11, size 3A

Product Overview

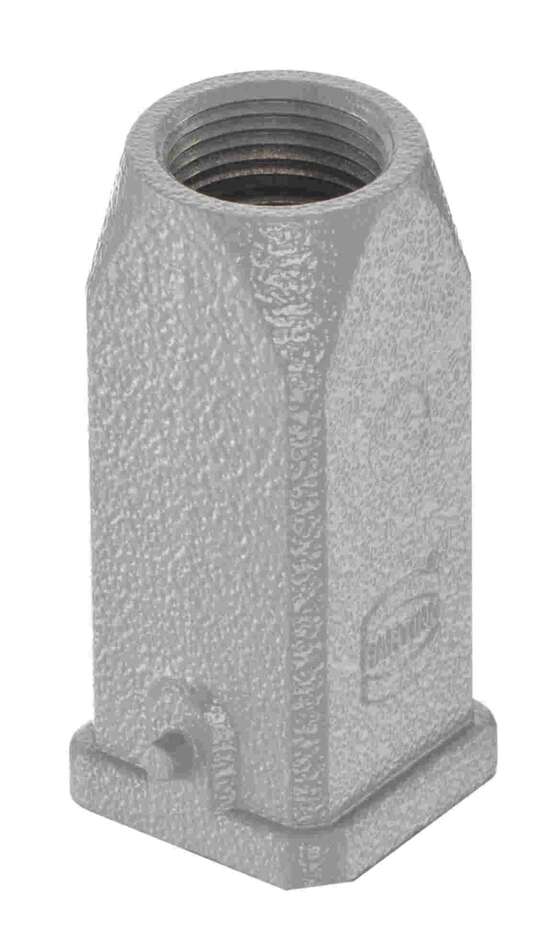

The Han 3A-HTE-PG11 (Article No.: 09 20 003 1440) is a top entry hood from HARTING's Han A® series, specifically designed for heavy duty connector applications. This metal hood features a single locking lever mechanism with PG11 thread entry, providing excellent mechanical and electrical protection in demanding industrial environments.

Key Features:

• Belongs to the Han A® series for hoods/housings applications
• Top entry design for convenient cable management from above
• Single lever locking system (Han-Easy Lock®) for secure connection
• PG11 thread entry for standard industrial cable applications
• Zinc die-cast construction for maximum durability
• Powder-coated finish in dust grey (RAL 7037)
• IP44/IP65/IP67 degree of protection capabilities
• Compatible with Han 3A inserts and components

Technical Specifications:

• Article Number: 09 20 003 1440
• Category: Hoods/Housings
• Series: Han A®
• Size: 3A
• Type: HDC (Heavy Duty Connector) enclosure
• Entry Configuration: Top entry (HTE)
• Cable Entry: 1x PG11 thread
• Material: Zinc die-cast
• Finish: Powder-coated
• Color: Dust grey (RAL 7037)
• Locking System: Single locking lever (Han-Easy Lock®)
• Operating Temperature: -40°C to +125°C
• Degree of Protection: IP44, IP65/IP67 (with seal screw 09 20 000 9918)
• Type Rating: acc. to UL 50 / UL 50E 12

Applications: This top entry hood is designed for heavy duty rectangular connector applications in demanding industrial environments. Ideal for use in automobile industry, mechanical engineering, process control, and regulation control applications where excellent mechanical and electrical protection is required. The top entry design makes it particularly suitable for applications where cable routing from above is preferred.

Benefits:

• Top entry configuration facilitates easy cable installation and maintenance access
• Single locking lever provides quick and secure connection/disconnection operations
• Zinc die-cast construction ensures long-term reliability in harsh environments
• Wide operating temperature range (-40°C to +125°C) suitable for extreme conditions
• High degree of protection (up to IP67) safeguards against environmental ingress
• Powder-coated finish provides excellent corrosion resistance
• Compatible with Han A® ecosystem for flexible system integration
• Han-Easy Lock® system requires no special tools for termination

Compatible Products: Compatible with all metal and plastic hoods and housings of the Han® 3A series. Designed for use with Han 3A inserts and terminal block connectors, providing flexibility for various power and signal connectivity requirements up to 10A current rating.
