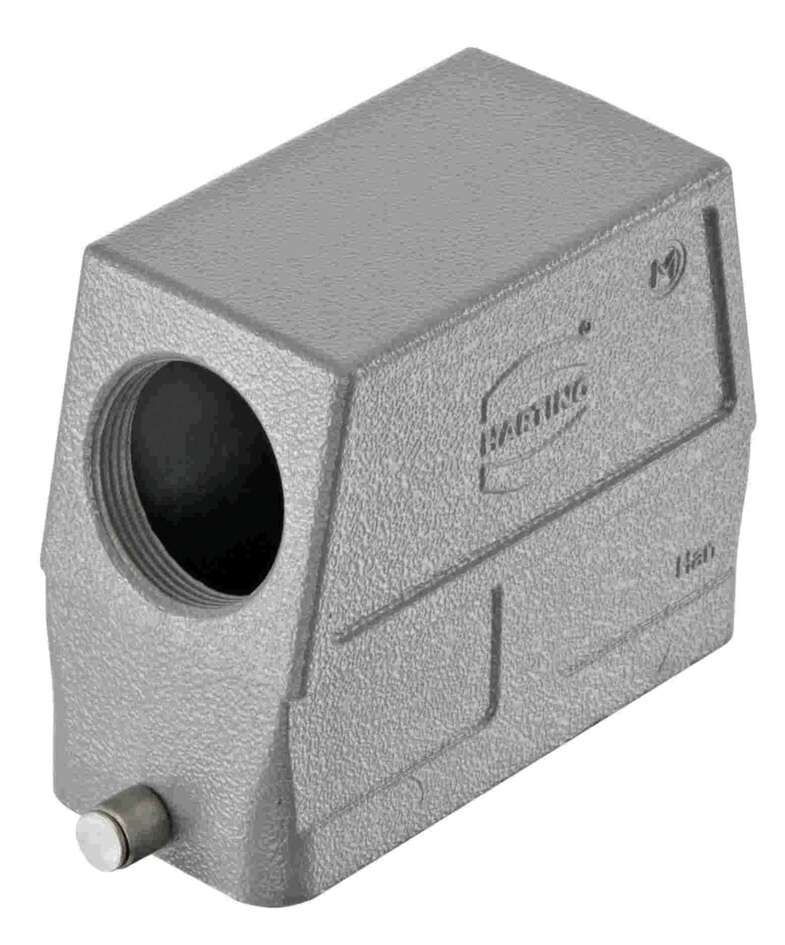

Harting Hood, single locking, side entry, size 16B

Product Overview

The Han B Hood Side Entry 2 Reels M32 is a standard construction connector hood for industrial applications requiring lateral cable routing with advanced cable management and large cable capacity. Features aluminum die-cast construction with dual reel mechanism and side entry M32 cable gland for enhanced cable strain relief and routing control with maximum cable diameter accommodation.

Key Features

• Standard construction design for conventional installations
• Side entry configuration with dual reel system
• Size 16B with M32 side cable entry for large cables
• Aluminum die-cast construction, RAL 7037 finish
• Dual reel mechanism for enhanced cable management
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 16B
• Construction: Standard construction
• Cable Entry: Side entry, 1 x M32 with dual reels
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Cable Management: Dual reel system for strain relief
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Standard construction for conventional mounting
• Dual reel system provides enhanced cable strain relief
• M32 cable gland accommodates large cable diameters
• Compatible with Han 16B series bases and inserts

Applications

• Applications requiring advanced cable management with large cables and lateral routing
• Industrial systems with high cable stress and side access requirements
• Equipment needing enhanced strain relief with M32 cable capacity
• Standard height installations where cable protection and side entry are critical

Compatibility

• Compatible with Han 16B series bases and inserts
• Part of Han B® connector system
• Standard construction hood with advanced cable management

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with enhanced cable protection

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
