Harting Hood, single locking, side entry, PG16, size 10B

Product Overview

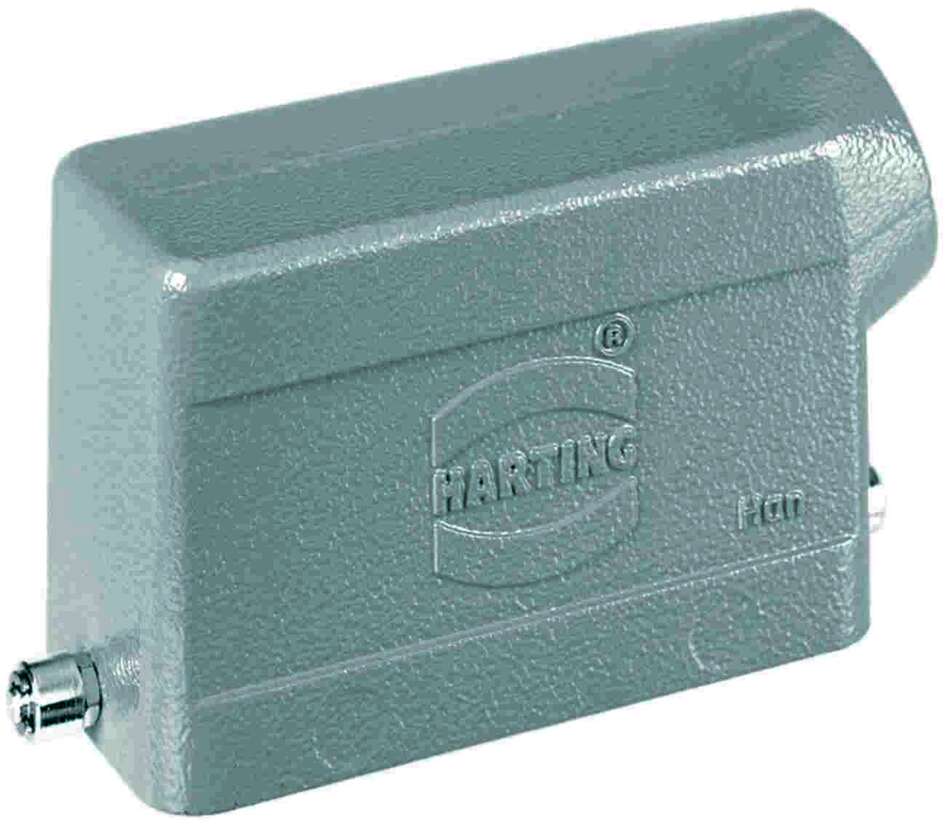

The Han B Hood Side Entry LC 2 Reels PG 16 (SKU: 09300101541) is a low-construction aluminum die-cast hood with side cable entry and reel mounting configuration. Features single locking lever mechanism and PG 16 cable entry for secure industrial connector applications.

Key Features:

• Low Construction (LC): Space-saving design for height-restricted applications
• Side Entry Configuration: Lateral cable routing with PG 16 threading
• 2-Reel Mounting: Secure mechanical attachment for frequent connect/disconnect
• Single Locking Lever: Reliable connection with easy operation
• Die-Cast Aluminum: RAL 7037 (dust grey) powder-coated finish

Technical Specifications:

• Article Number: 09 30 010 1541
• Series: Han® B, Size 10 B
• Type: Hood, side entry, low construction
• Mounting: 2 reels
• Cable Entry: 1x PG 16
• Material: Aluminum die-cast, powder-coated
• Locking: Single lever

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating (locking levers)
• Industry Standards: CSA-C22.2 No. 182.3 ECBT8.E235076
• ELV Status: Compliant
• REACH: No restricted substances

Applications: Ideal for industrial machinery, control panels, and automation equipment requiring side cable entry with reel mounting. Low profile design suitable for space-constrained installations with frequent mating requirements.

Compatibility: Compatible with Han® B series base housings and inserts. Works with 38 combinable products and accessories.
