Harting Hood, single locking, no cable entry, size 6B

Product Overview

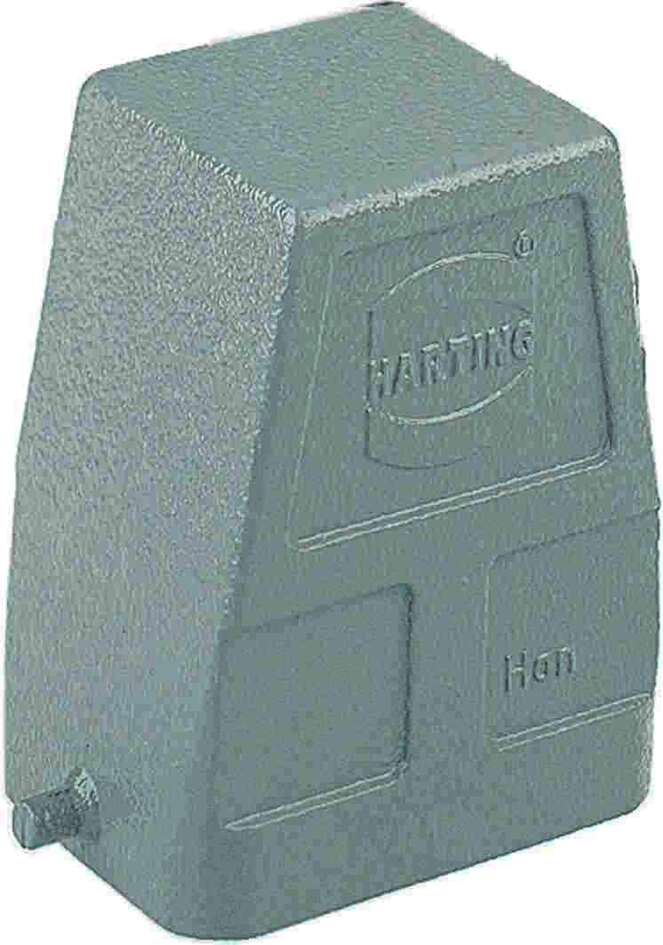

The Han B Hood HC 2 Pegs without PG is a high construction cable-side housing from HARTING's Han® B series, designed for applications requiring flexible cable entry options. This hood features a single lever locking mechanism and includes preparation for two cable entries without pre-installed cable glands, allowing for custom cable entry solutions.

Key Specifications

• Article Number: 09 30 006 0801
• Series: Han® B
• Category: Hoods/Housings
• Type: Hood (cable-side housing)
• Size: 6B
• Construction: High construction design
• Locking Type: Single locking lever
• Cable Entry: 2 pegs without PG glands

Technical Features

• Material: Aluminum die-cast construction
• Surface: Powder-coated finish
• Color: RAL 7037 (dust grey)
• Cable Preparation: Two cable entry positions without installed glands
• Locking System: Single lever mechanism
• Operating Temperature: -40°C to +125°C
• Customizable: Flexible cable entry configuration

Cable Entry Configuration

• Entry Points: Two prepared positions for cable glands
• Without PG Glands: No pre-installed cable glands for maximum flexibility
• Custom Installation: Allows selection of appropriate cable gland sizes
• Versatile Design: Accommodates various cable types and sizes

Environmental & Safety Ratings

• IP Protection: IP65, IP66, IP67 (when properly sealed)
• UL Type Rating: UL 50/UL 50E compliant
• Temperature Range: -40°C to +125°C operating temperature
• Industrial Grade: Suitable for demanding industrial environments

Applications & Usage Ideal for cable-side connections where custom cable entry requirements exist. Perfect for applications requiring specific cable gland sizes or types not covered by standard configurations. Commonly used in industrial automation, machinery control, and custom installations where flexibility in cable entry is essential.

Compatibility

• Series Compatibility: Han® B series inserts and accessories
• Insert Accommodation: Compatible with 6B size inserts
• Cable Gland Options: Accepts standard PG and metric cable glands
• Customization: Allows field installation of preferred cable entry solutions

Certifications & Compliance

• UL Listed: UL 50/UL 50E certified
• IEC Standards: Connector according to IEC 61984
