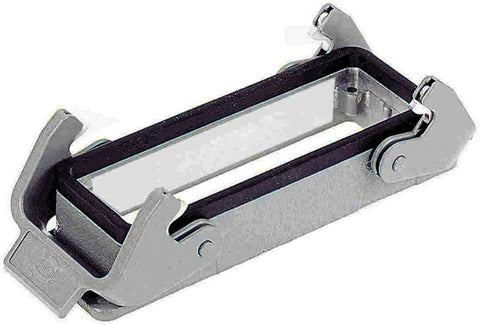

Harting Hood, low construction, double lever, size 24B

Product Overview

The Han 10HvE-HBM-Double lever is a robust bulkhead-mounted housing designed for high-voltage applications within the Han Hv E® series. This housing features a double lever locking mechanism that ensures secure and reliable connections in demanding industrial environments. Engineered for panel mounting applications, this housing provides excellent protection and durability for electrical connections requiring higher voltage ratings than standard Han E series products.

Key Features

• Double lever locking mechanism for secure mating
• Bulkhead mounting design for panel installations
• Part of the Han Hv E® series for high-voltage applications
• Robust die-cast aluminum construction
• Powder-coated finish for corrosion resistance
• Compatible with Han Hv E® inserts
• Designed for protected switch rooms and switch cabinets
• IP65/67 protection rating when properly mated

Technical Specifications

• Series: Han Hv E®
• Type: Bulkhead mounting housing (HBM)
• Locking Type: Double lever
• Size: 10B
• Housing Material: Die-cast aluminum
• Surface Treatment: Powder-coated
• Temperature Range: -40°C to +125°C
• Protection Class: IP65/67 (when mated)
• Flammability Rating: Compliant with industrial standards
• Mechanical Durability: ≥500 mating cycles

Installation Features

• Mounting Type: Bulkhead/panel mounting
• Lever System: Two levers for enhanced locking security
• Panel Cutout: According to Han 10B specifications
• Mounting Hardware: Standard fixing screws included
• Gasket/Seal: Integrated sealing for IP protection

Applications

Ideal for high-voltage industrial connectivity applications:

• Railway and transportation systems
• Wind energy installations
• Industrial machinery requiring high-voltage connections
• Power distribution systems
• Factory automation with elevated voltage requirements
• Control cabinets in protected electrical areas
• Applications requiring robust bulkhead mounting
• Systems requiring secure double-lever locking

Compatibility

• Compatible with Han Hv E® series inserts
• Accommodates Size 10B inserts
• Works with Han® modular system components where applicable
• Compatible with various cable gland options
• Suitable for use with Han Hv E® hoods for complete connector systems

Key Benefits

• Enhanced Safety: Double lever mechanism prevents accidental disconnection
• High Voltage Capability: Designed specifically for Hv E® high-voltage applications
• Robust Construction: Die-cast aluminum provides excellent mechanical strength
• Environmental Protection: IP65/67 rating ensures protection against dust and water
• Versatile Mounting: Bulkhead design allows for panel-mounted installations
• Long Service Life: Rated for minimum 500 mating cycles

Important Configuration

• Ensure proper insert selection for voltage requirements
• Connectors should not be mated or unmated under electrical load
• Proper torque specifications must be followed during installation
• Verify panel cutout dimensions before installation
• Use appropriate cable glands to maintain IP rating

Certifications and Compliance

• Standards: IEC 61984, EN 60664-1
• RoHS: Compliant
• ELV Status: Compliant
• REACH Compliance: According to current regulations
• Industrial Standards: Meets requirements for industrial connectivity
• Country of Origin: Germany

Environmental Specifications

• Operating temperature: -40°C to +125°C
• Storage temperature: -40°C to +85°C
• Relative humidity: Up to 95% (non-condensing)
• Vibration and shock resistant according to industrial standards
• Corrosion-resistant powder coating
