Harting Hood, double locking, top entry, PG29, size 16B

Product Overview

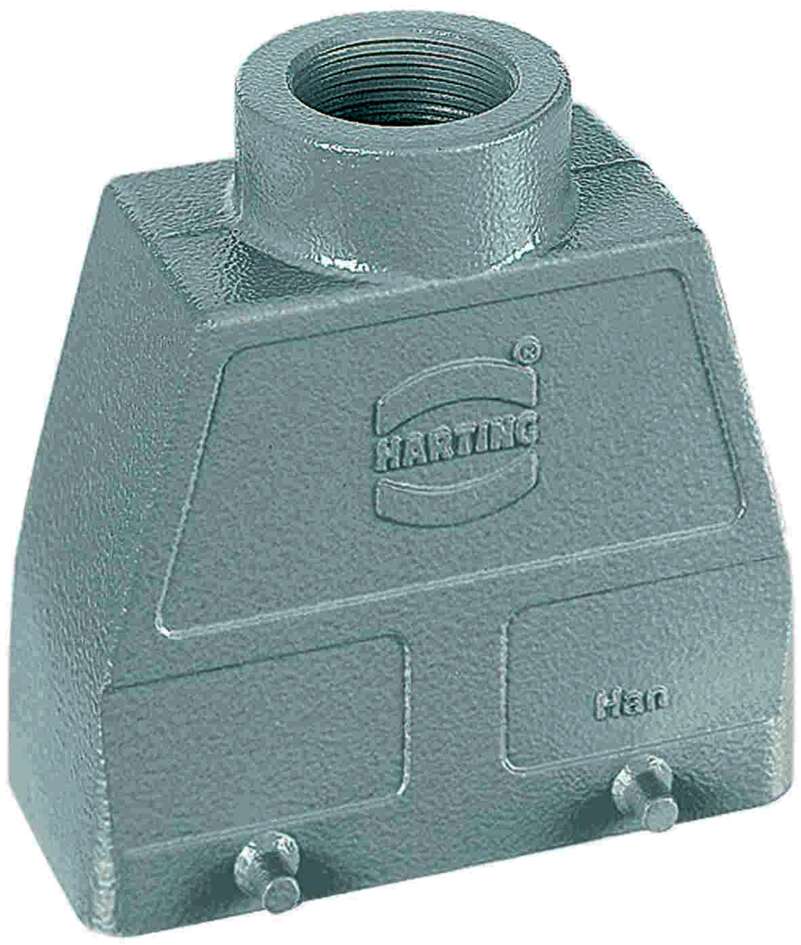

The Han B Hood Top Entry HC 4 Pegs PG 29 (SKU: 09300160421) is a high-construction aluminum die-cast hood designed for top cable entry applications. Features double locking lever mechanism with 4-peg mounting and PG 29 cable entry for secure industrial connector systems in the Han® B series.

Key Features:

• High Construction (HC): Increased height for enhanced cable management and bend radius
• Top Entry Configuration: Cable entry from the top for vertical routing applications
• 4-Peg Mounting: Secure mechanical attachment with four mounting pegs
• PG 29 Cable Entry: Large diameter PG 29 thread for heavy-duty cable glands
• Double Locking Lever: Enhanced connection security and reliability
• Die-Cast Aluminum: RAL 7037 (dust grey) powder-coated finish

Technical Specifications:

• Article Number: 09 30 016 0421
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Hood, top entry, high construction
• Construction: High construction (HC)
• Mounting: 4 pegs
• Cable Entry: 1x PG 29
• Locking System: Double locking lever
• Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: Suitable for demanding industrial applications

Applications: Ideal for industrial machinery and automation equipment where top cable entry with enhanced cable bend radius is required. The high construction design accommodates larger cables and provides superior cable management in applications with space above the connector.

Compatibility:

• Compatible with Han® B series base housings and inserts
• Works with 36 combinable products and 9 accessories
• Supports 66 different insert configurations and 2 frame options
• Requires appropriate Han B series inserts (sold separately)

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
