Harting Hood, double locking, top entry, PG21, size 24B

Product Overview

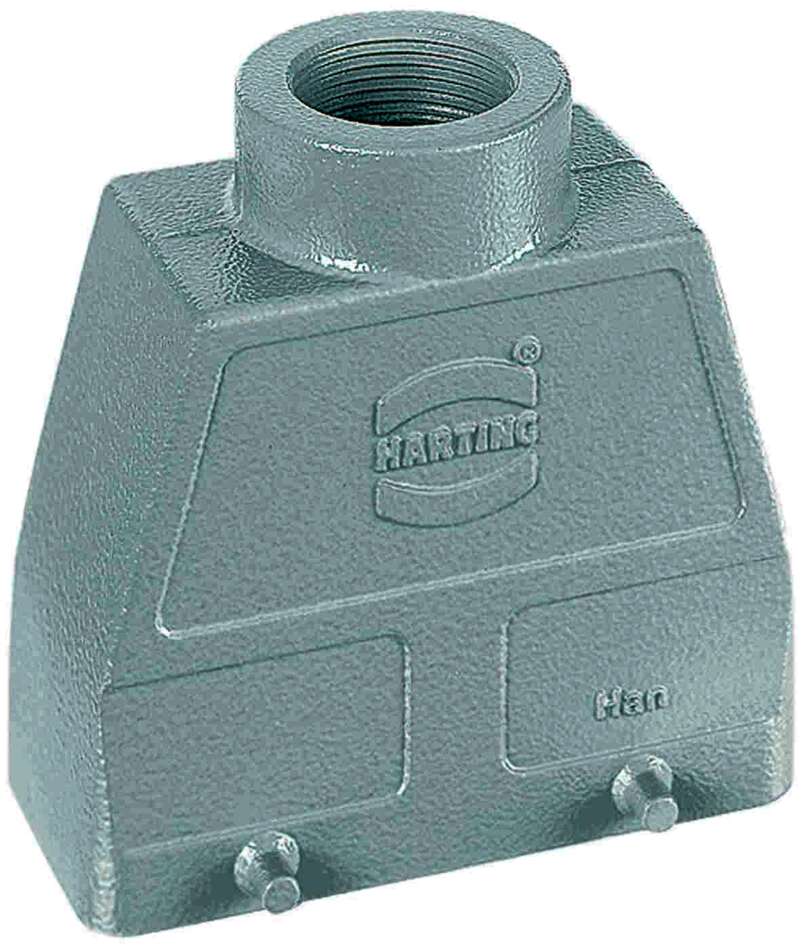

The Han B Hood Top Entry HC 4 Pegs PG 21 (SKU: 09300240420) is a high-construction aluminum hood designed for maximum capacity top cable entry applications. Features double locking lever mechanism with 4-peg mounting and PG 21 cable entry for secure industrial connector systems in size 24B applications requiring the highest connectivity density.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for highest density applications
• High Construction (HC): Enhanced height for superior cable management and bend radius
• Top Entry Configuration: Cable entry from the top for vertical routing applications
• 4-Peg Mounting: Secure mechanical attachment with four mounting pegs
• Double Locking Lever: Enhanced connection security and reliability
• Metal Construction: Strong aluminum body for optimum connector protection

Technical Specifications:

• Article Number: 09 30 024 0420
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Hood, top entry, high construction
• Construction: High construction (HC)
• Mounting: 4 pegs
• Cable Entry: 1x PG 21
• Locking System: Double locking lever
• Material: Metal (aluminum)
• Protection Rating: IP65

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Protection Rating: IP65 for industrial environments
• Industrial Standards: Suitable for demanding industrial applications

Applications: Essential for the most demanding high-density industrial applications requiring maximum connectivity capacity with superior cable management. Ideal for large-scale manufacturing equipment, complex automation systems, and high-power applications where extensive signal and power routing is critical.

Compatibility:

• Compatible with Han® B series size 24B base housings and inserts
• Works with Han D, DD, E, ES, EE, Com, D AV, E AV, and Modular series inserts
• Accommodates six inserts within 24B housing for modular applications
• Should not be mated or unmated under electrical load
• Polarization recommended for line arrangements to prevent wrong connections
