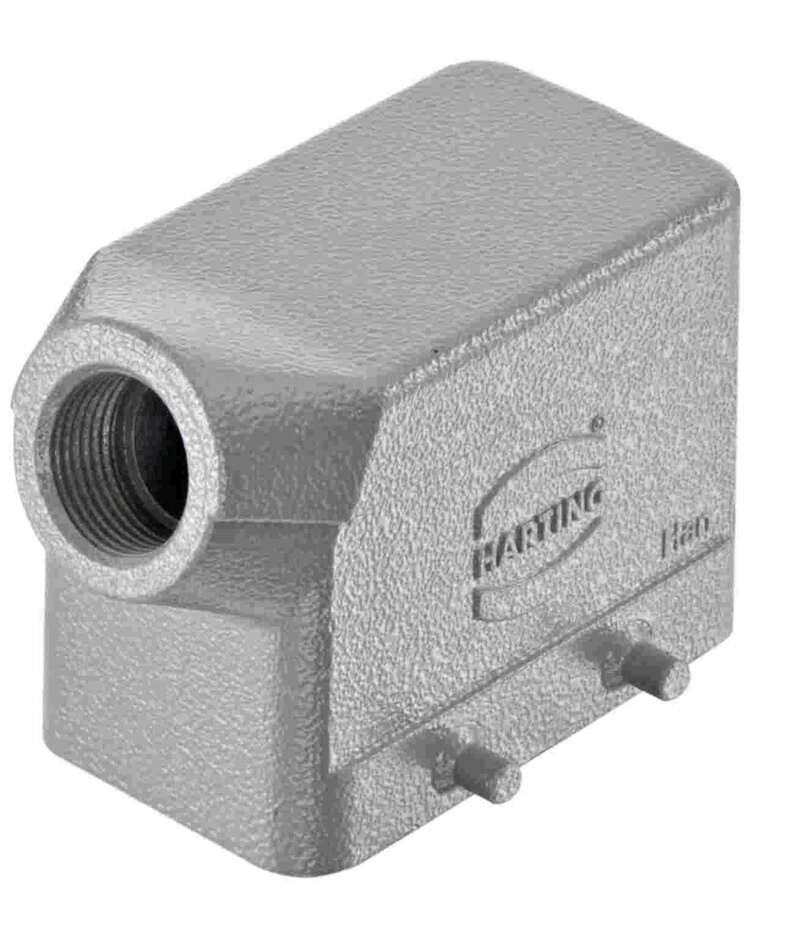

Harting Hood, double locking, side entry, M25, size 10B

Product Overview

The Han 10B Hood Side Entry LC M25 is a low construction connector hood for industrial applications requiring lateral cable routing with larger cable capacity. Features aluminum die-cast construction with side entry configuration and M25 cable gland for enhanced cable management in space-constrained installations requiring both minimal height profile and increased cable diameter accommodation.

Key Features

• Low construction (LC) design for minimal height profile
• Side entry (SE) configuration for lateral cable routing
• Size 10B with M25 cable entry for larger cables
• Aluminum die-cast construction, RAL 7037 finish
• Space-efficient design with enhanced cable capacity
• IP65 protection, -40°C to +125°C operation

Technical Specifications

• Housing Size: 10B
• Construction: Low construction (LC)
• Cable Entry: Side entry (SE), 1 x M25
• Temperature Range: -40°C to +125°C
• Protection: IP65, NEMA 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Low construction minimizes vertical space requirements
• Side entry design optimizes lateral cable routing
• M25 cable gland accommodates larger cable diameters
• Compatible with Han 10B series bases and inserts

Applications

• Industrial installations requiring larger cable capacity with lateral routing
• Space-constrained systems needing low profile with M25 accommodation
• Equipment requiring side cable access with enhanced cable management
• Applications combining height restrictions with larger cable requirements

Compatibility

• Compatible with Han 10B series bases and inserts
• Part of Han B® connector system
• Low construction hood for larger cable applications

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• Construction: Corrosion-resistant aluminum die-cast
• Durability: ≥500 mating cycles with M25 capacity

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94
• Origin: Germany
