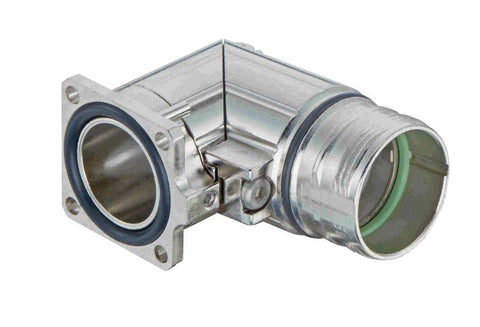

Harting HMB, M23, angled, rotatable

Product Overview

The M23 HMB angled – rotatable is a bulkhead mounted housing for HARTING Han® M23 Signal circular connectors. Features nickel-plated copper-zinc alloy construction with angled, rotatable design for optimal cable routing and space-saving installations in demanding industrial applications.

Key Features

• Series: Han® M23 Signal
• Type: Bulkhead mounted housing, angled and rotatable
• Size: M23 connector
• Material: Copper-zinc alloy, nickel plated
• Protection: IP67, IP69/IPX9K (locked position)
• Temperature: -40°C to +125°C
• Locking: Screw locking + ComLock rapid locking
• Mounting: Front mounting, angled configuration
• Seal: NBR material
• Design: Rotatable for flexible cable routing

Technical Specifications

Robust angled housing with rotatable design for flexible cable positioning and optimal space utilization. Nickel-plated copper-zinc alloy construction provides excellent mechanical strength and corrosion resistance. NBR sealing ensures reliable protection across full temperature range. Dual locking mechanism offers both screw locking and ComLock rapid locking. Compatible with Han® M23 Signal series inserts supporting various contact configurations.

Compliance & Environmental

• IP67/IP69K protection (locked position, ISO 20653)
• Operating temperature: -40°C to +125°C
• RoHS compliant
• Excellent EMC properties
• High contact density design

Applications

Industrial automation, machinery control, and space-constrained installations where angled cable routing is essential. Ideal for applications requiring flexible connector positioning, such as control panels, robotic systems, and equipment where straight connections are not feasible. Perfect for harsh environments needing IP69K protection with the added benefit of rotatable cable management for optimal installation flexibility.
