Harting Hinged frame plus for 3 modules, a - c, size 10B

Product Overview

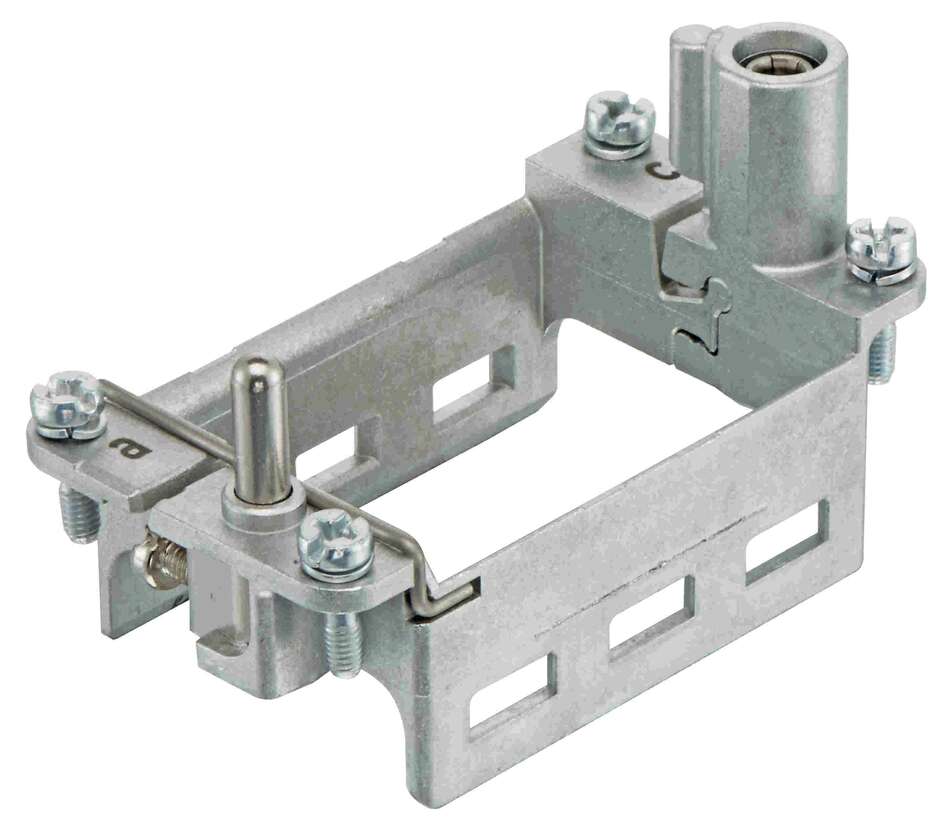

The Han hinged frame plus, for 3 modules a-c is an enhanced hinged frame accessory designed for the HARTING Han-Modular® connector system. This size 10B hinged frame plus accommodates 3 modules in positions a, b, and c, providing an improved mounting solution for Han-Modular® inserts within Han 10B housings. The frame features integrated PE (protective earth) connections with dual conductor cross-section specifications for power and signal applications, constructed from zinc die-cast and stainless steel materials for enhanced durability and performance.

Key Features

• Series: Han-Modular®
• Category: Frame Accessory
• Type: Hinged frame plus
• Size: 10B
• Module Capacity: 3 modules (positions a-c)
• Conductor Cross-Section: 1 - 10 mm²
• PE Conductor Cross-Section (Power): 1 - 10 mm²
• PE Conductor Cross-Section (Signal): 0.5 - 2.5 mm²
• Stripping Length: 8 - 10 mm
• Operating Temperature: -40°C to +125°C
• Mating Cycles: ≥500
• Material: Zinc die-cast, Stainless steel

Technical Specifications

This hinged frame plus provides secure mounting for 3 Han-Modular® modules in positions a, b, and c within size 10B housings with enhanced construction and performance. The frame features integrated protective earth (PE) connections with conductor cross-section support from 1-10 mm² and separate specifications for power (1-10 mm²) and signal (0.5-2.5 mm²) applications. The operating temperature range spans -40°C to +125°C with stripping length requirements of 8-10mm and mating cycles ≥500. The enhanced "plus" design incorporates zinc die-cast and stainless steel construction for improved durability and reliability. Note: Use of ferrules is recommended, and conductor cross-section 10 mm² requires ferrule crimping tool 09 99 000 0374. The hinged design allows for easy access to modules during installation and maintenance.

Compliance & Environmental

• Operating temperature range: -40°C to +125°C
• Mating cycles: ≥500
• Size 10B compatibility
• Zinc die-cast and stainless steel construction
• RoHS compliant with exemption
• RoHS exemption 6(c): Copper alloy containing up to 4% lead by weight
• Enhanced durability design
• Han-Modular® system compatibility

Applications

Ideal for demanding industrial automation systems, control panels, and machinery requiring robust 3-module configurations within size 10B connector housings. Perfect for applications where different types of Han-Modular® inserts need to be combined in positions a, b, and c with enhanced durability requirements, including power and signal combinations, data and pneumatic combinations, or mixed electrical connections in harsh environments. Excellent for heavy-duty control systems, manufacturing equipment, and industrial networks where modular flexibility, enhanced construction, and reliable performance are essential. The hinged frame plus design makes it particularly suitable for applications requiring frequent module changes, system upgrades, or field maintenance in the most demanding industrial environments with increased module capacity.
