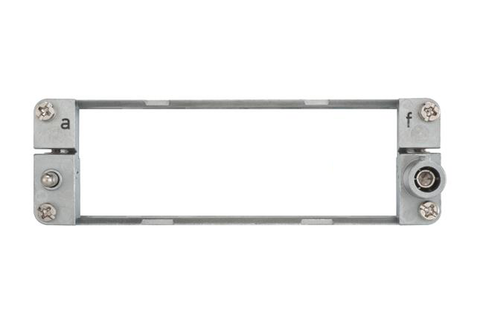

Harting Hinged frame for 6 modules, a - f, size 24B

Product Overview

The hinged frame 24B for 6 modules (a..f) is a large-capacity modular docking frame designed for the HARTING Han-Modular® connector system for housing applications. This hinged frame accommodates up to 6 modules in positions a through f and is engineered for use with Han 24B housings, providing comprehensive modular connectivity solutions for complex industrial applications requiring multiple connection types in a single housing-mounted assembly.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Hinged frame
• Configuration: 6 module positions (a-f)
• Frame Size: 24B
• Module Capacity: 6 modules maximum
• Application: Housing mounting
• Compatibility: Han 24B housings
• Design: Hinged construction for easy access
• PE Connection: Integrated PE contacts
• Conductor Cross-Section PE (Power): 4 - 10 mm²
• Conductor Cross-Section PE (Signal): 1 - 2.5 mm²
• Operating Temperature: -40°C to +125°C

Technical Specifications

This Han-Modular hinged frame 24B is specifically designed for housing applications and provides users with a very high degree of connectivity and manufacturing flexibility. The frame can combine electrical, optical, and gaseous signal and power connections in one easy assembly, with basic modules snapping into the mounting frame and exchangeable separately anytime. The 24B housing version accommodates up to 6 modules with lowercase marking (a-f), making it suitable for complex applications requiring extensive connectivity in housing configurations. The hinged design allows for easy module installation and maintenance while ensuring secure mechanical connection. Han-Modular housings are constructed using metal, plastic, and stainless steel, and are suited for the harshest requirements in industrial environments.

Compliance & Environmental

• Operating temperature: -40°C to +125°C
• Industrial-grade hinged construction
• Compatible with Han-Modular® system
• Suitable for Han 24B housing applications
• Designed for protected electrical areas
• Compatible with standard Han® B housings
• Supports modular connector configurations
• Integrated PE contact system
• Stripping length: 8-10 mm
• IP65 rated panel-feed housing compatibility

Applications

Ideal for complex industrial control systems, power distribution panels, and machinery requiring extensive modular connectivity solutions in housing configurations with up to 6 different connection types. Perfect for applications where multiple connection types (power, signal, data, pneumatic, optical) need to be consolidated into a single large housing-mounted connector assembly. Suitable for industrial automation equipment, manufacturing systems, and complex machinery installations requiring high connectivity density in housing applications. The 24B housing version makes it particularly useful for panel-mounted applications, control cabinets, and process control systems where comprehensive connectivity in a single housing-mounted connector is essential for system efficiency and maintenance accessibility.
