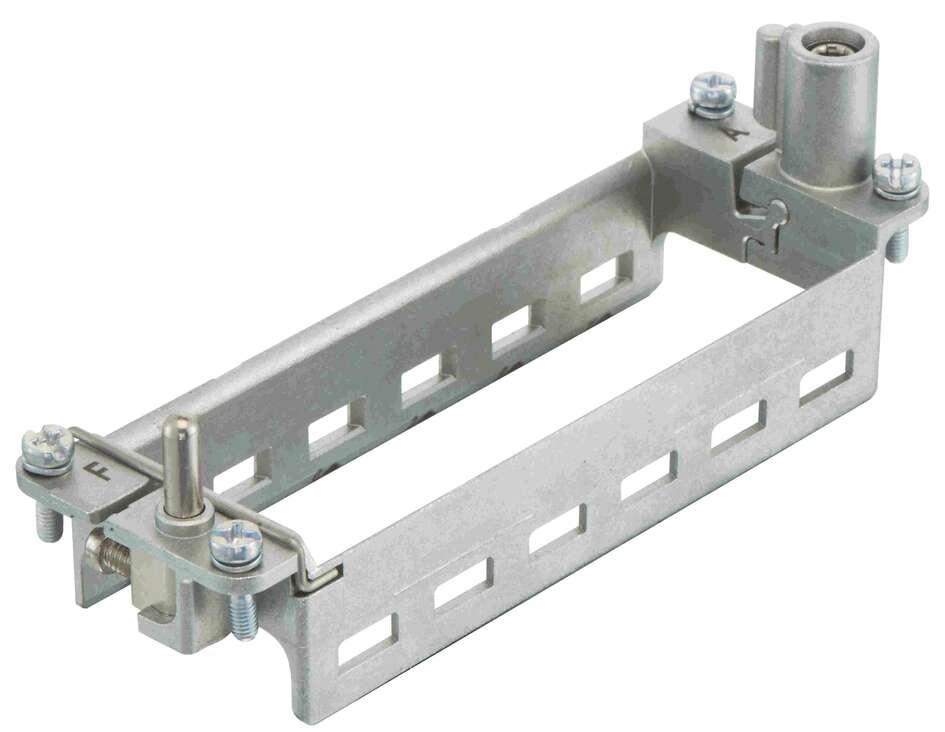

Harting Hinged frame for 6 modules A-F, size 24B.

Product Overview

The Han hinged frame plus for 6 modules A-F is an enhanced large-capacity modular docking frame designed for the HARTING Han-Modular® connector system. This advanced hinged frame plus accommodates up to 6 modules in positions A through F and features robust mechanical design with diecast zinc and stainless steel construction, providing superior modular connectivity solutions for complex industrial applications with integrated PE contacts and tool-free assembly capabilities.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Hinged frame plus
• Configuration: 6 module positions (A-F)
• Frame Type: Enhanced hinged design
• Module Capacity: 6 modules maximum
• Material: Diecast zinc and stainless steel construction
• Assembly: Tool-free module installation
• PE Contacts: Two leading PE contacts integrated
• Compatibility: Over 100 different Han-Modular modules
• Design: Robust mechanical construction
• Installation: Audible click confirmation
• Frame Size: 24B compatible

Technical Specifications

This Han-Modular hinged frame plus is designed for use with over 100 different modules within the Han-Modular interconnect system. Assembly is quick and easy with an audible click produced to confirm a secure fitting. Modules can be assembled and removed without the need for tooling. These Han-Modular hinged frames have a robust mechanical design and are made from diecast zinc and stainless steel. Two leading PE contacts are featured within the structure of the frame. The Han-Modular system allows a variety of insert configurations within one connector assembly and is designed to meet specific requirements of individual customers. The enhanced plus design provides superior durability and reliability for demanding industrial applications with 6 module capacity for comprehensive connectivity solutions.

Compliance & Environmental

• Robust diecast zinc and stainless steel construction
• Industrial-grade durability and reliability
• Compatible with Han-Modular® system
• Tool-free assembly and disassembly
• Audible click confirmation for secure fitting
• Two integrated leading PE contacts
• Suitable for protected electrical areas
• Designed for control cabinet and outdoor applications
• Compatible with standard Han® housings
• Wide range of configurations available

Applications

Ideal for complex industrial control systems, power distribution panels, and machinery requiring advanced large-scale modular connectivity solutions. Perfect for applications where multiple connection types (power, signal, data, pneumatic, optical) need to be consolidated into a single large connector assembly with enhanced reliability and expanded capacity. Suitable for demanding industrial environments where robust mechanical design, easy maintenance, and comprehensive connectivity are critical. The 6-module capacity makes it particularly useful for complex control systems, automated production lines, and applications requiring extensive connections in a single connector with superior durability and tool-free serviceability.
