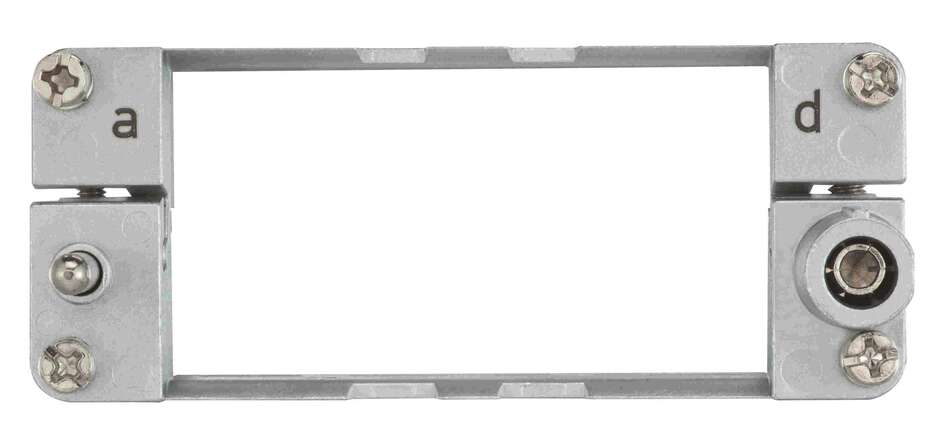

Harting Hinged frame for 4 modules, a - d, size 16B

Product Overview

The Han Modular frame 16 housing 4 module a-d is a zinc die-cast docking frame designed for the HARTING Han-Modular® connector system. This hinged frame accommodates up to 4 modules in positions A through D and is engineered for use with standard Han 16 housings, providing flexible modular connectivity solutions for industrial applications with secure module positioning and reliable mechanical connection.

Key Features

• Series: Han-Modular®
• Category: Accessories
• Type: Hinged modular frame
• Configuration: 4 module positions (A-D)
• Housing Size: Han 16B
• Frame Type: Hinged design
• Module Capacity: 4 modules maximum
• Material: Zinc die-cast construction
• Mounting: Housing mounting configuration
• Dimensions: 77.5 x 27 mm
• Compatibility: Standard Han housings
• Design: Hinged frame for easy module access

Technical Specifications

This Han-Modular hinged frame is designed for 4 Han modular modules with A to D marking and features zinc die-cast housing construction. The Han-Modular® series is a heavy duty connector system that provides users with a very high degree of interconnect design and manufacturing flexibility. The frame accommodates various Han-Modular inserts to create custom connector solutions for applications ranging from sensitive signals to high power connections. In addition to connections of electrical power and signals, it is also possible to make pluggable connections for both optical and gaseous mediums with the Han-Modular® system. The zinc die-cast construction ensures durability and reliable mechanical connection while the hinged design allows for easy module installation and maintenance.

Compliance & Environmental

• Robust zinc die-cast frame construction
• Industrial-grade durability
• Compatible with Han-Modular® system
• Suitable for protected electrical areas
• Designed for control cabinet and outdoor applications
• Supports modular connector configurations
• Hinged design for maintenance accessibility
• Size 16B housing compatibility

Applications

Ideal for industrial control systems, power distribution panels, and machinery requiring modular connectivity solutions. Perfect for applications where multiple connection types (power, signal, data, pneumatic, optical) need to be consolidated into a single connector assembly. Suitable for protected electrical areas including control cabinets and outdoor applications where reliable modular connections are essential. The frame enables custom connector configurations using standard Han-Modular modules, making it perfect for industrial automation, manufacturing equipment, and complex machinery installations requiring high flexibility in interconnect design.

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• 3D CAD Models & Technical Data
• HARTING eCatalogue
