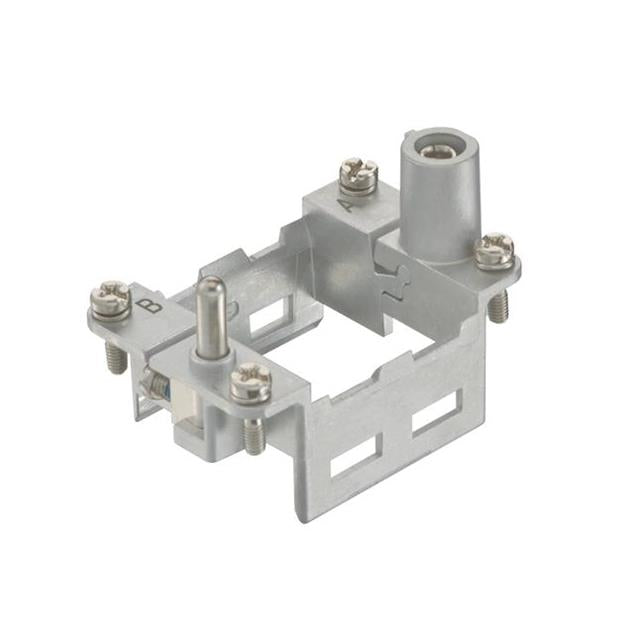

Harting Hinged frame for 2 modules, a - b, size 6B

Product Overview

The Han Modular frame 6 hood 2 module A-B (H) is a hinged frame accessory designed for the HARTING Han-Modular® connector system. This size 6B hinged frame accommodates 2 modules in positions A and B, providing a secure mounting solution for Han-Modular® inserts within Han 6B housings. The frame features integrated PE (protective earth) connections with separate conductor cross-section specifications for power and signal applications, enabling flexible modular connector configurations.

Key Features

• Series: Han-Modular®
• Category: Frame Accessory
• Type: Hinged frame
• Size: 6B
• Module Capacity: 2 modules (positions A-B)
• PE Conductor Cross-Section (Power): 4 - 10 mm²
• PE Conductor Cross-Section (Signal): 1 - 2.5 mm²
• Stripping Length: 8 - 10 mm
• Operating Temperature: -40°C to +125°C
• Design: Hinged construction for easy module access
• Compatibility: Han 6B housings and hoods

Technical Specifications

This hinged frame provides secure mounting for 2 Han-Modular® modules in positions A and B within size 6B housings. The frame features integrated protective earth (PE) connections with dual conductor cross-section specifications: 4-10 mm² for power applications and 1-2.5 mm² for signal applications. The operating temperature range spans -40°C to +125°C with stripping length requirements of 8-10mm. The hinged design allows for easy access to modules during installation, maintenance, and reconfiguration while maintaining secure positioning within the connector assembly. The frame enables flexible system configurations by combining different types of Han-Modular® inserts in a single connector housing.

Compliance & Environmental

• Operating temperature range: -40°C to +125°C
• Size 6B compatibility
• Integrated PE connections
• Dual conductor cross-section support
• Han-Modular® system compatibility
• Hinged design for accessibility
• Industrial-grade construction

Applications

Ideal for industrial automation systems, control panels, and machinery requiring flexible 2-module configurations within size 6B connector housings. Perfect for applications where different types of Han-Modular® inserts need to be combined in positions A and B, including power and signal combinations, data and pneumatic combinations, or mixed electrical connections. Excellent for control systems, manufacturing equipment, and industrial networks where modular flexibility and easy maintenance access are essential. The hinged design makes it particularly suitable for applications requiring frequent module changes, system upgrades, or field maintenance in demanding industrial environments.
