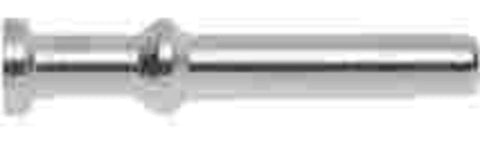

Harting Crimp contact, male, silver plated, c/s 2.5mm², 40A

Product Overview

The Han C-male contact-c 2.5mm² (SKU: 09320006105) is a high-quality turned crimp contact designed for demanding industrial connectivity applications. Part of the Han® C series, this male contact pin delivers reliable 40A current rating and is specifically engineered for 2.5mm² wire cross-section terminations in heavy-duty power connector applications.

Key Features:

• High Current Capacity: ≤40A rating for demanding power applications
• Male Contact Pin: Turned contact design for reliable connections
• Crimp Termination: Secure mechanical and electrical connection for 2.5mm² wires
• Silver Plated Finish: Superior conductivity and corrosion resistance
• Precision Manufacturing: High-quality turned contact construction
• AWG 14 Compatible: Designed for AWG 14 wire gauge applications
• Industrial Grade: Built for heavy-duty power connector applications

Technical Specifications:

• Article Number: 09 32 000 6105
• Category: Contacts
• Series: Han® C
• Type of Contact: Crimp contact
• Gender: Male (pin)
• Current Rating: ≤40A maximum
• Wire Cross-Section: 2.5mm²
• AWG Rating: AWG 14
• Contact Material: Copper alloy
• Contact Finish: Silver plated
• Manufacturing Process: Turned contacts
• Contact Design: Precision turned contact

Applications:

Essential for heavy-duty industrial power connector applications requiring reliable 40A current handling with 2.5mm² wire terminations. Ideal for Han-Com® combination connectors, industrial automation systems, power distribution equipment, motor control applications, and any system where robust crimp termination contacts are required for higher current power transmission.

Compatibility:

• Insert Compatibility: Designed for use with Han® C series inserts
• Connector Systems: Compatible with Han-Com® combination connectors
• Wire Specifications: Specifically designed for 2.5mm² / AWG 14 wire cross-sections
• Crimp Tools: Requires appropriate parallel action crimp tool for optimal crimp quality
• System Integration: Works with Han® C female contacts for complete connections
• Assembly Requirements: Professional crimping recommended for reliable connections

Installation & Tools:

• Recommended Crimp Tool: Parallel action crimp tool with rotating locator for optimal quality
• Crimp Quality: Professional crimping ensures maximum current carrying capacity
• Wire Preparation: Proper wire stripping length and preparation essential for reliable connection
• Quality Control: Precision turned manufacturing ensures consistent performance
• Assembly: Compatible with HARTING Crimp Advisor tool for optimal installation guidance
