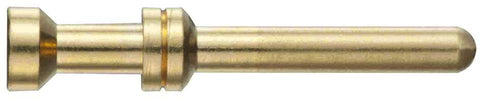

Harting Crimp contact, male, gold plated, c/s 1.5mm², 16A

Product Overview

The Han E M Crimp Contact Au 1.5 mm²/16 AWG (SKU: 09330006116) is a premium high-quality turned crimp contact designed for superior industrial connectivity applications. Part of the renowned Han® E series, this male contact pin delivers consistent 16A current rating and is specifically engineered for 1.5mm² wire cross-section terminations with gold plating, providing exceptional conductivity and corrosion resistance in demanding industrial connector applications.

Key Features:

• Reliable Current Capacity: 16A rating for dependable power applications
• Male Contact Pin: Precision turned contact design for secure mating connections
• Optimized Wire Capacity: Crimp termination for 1.5mm² wire cross-sections
• Gold Plated Finish: Premium gold plating for superior conductivity and maximum corrosion resistance
• Precision Manufacturing: High-quality turned contact construction
• AWG 16 Compatible: Designed for AWG 16 wire gauge applications
• Premium Performance: Gold finish ensures optimal signal integrity and longevity

Technical Specifications:

• Article Number: 09 33 000 6116
• Category: Contacts
• Series: Han® E
• Type of Contact: Crimp contact
• Gender: Male (pin)
• Current Rating: 16A maximum
• Wire Cross-Section: 1.5mm²
• AWG Rating: AWG 16
• Contact Material: Copper alloy
• Contact Finish: Gold plated (Au)
• Manufacturing Process: Turned contacts
• Contact Design: Precision turned contact
• Contact Resistance: ≤1 mOhm
• RoHS Compliance: Yes

Applications:

Essential for high-reliability industrial applications requiring superior connectivity with 1.5mm² wire terminations. Ideal for critical control systems, precision instrumentation, high-frequency signal transmission, sensitive electronic equipment, automation systems, and applications where gold plating's superior corrosion resistance and low contact resistance are essential for maintaining signal integrity and long-term reliability.

Compatibility:

• Insert Compatibility: Designed for use with Han® E series inserts
• Connector Systems: Compatible with Han® Industrial Connector systems
• Wire Specifications: Specifically designed for 1.5mm² / AWG 16 wire cross-sections
• Mating Contacts: Works with Han® E female contacts (09330006216) for complete connections
• Crimp Tools: Requires appropriate crimp tool for optimal crimp quality
• System Integration: Premium component for Han® E connector assemblies
• Housing Compatibility: Compatible with appropriate Han® hoods and housings

Installation & Tools:

• Recommended Crimp Tool: Parallel action crimp tool with rotating locator for optimal crimp quality
• Service Tool Option: Service crimp tool available for field installations and maintenance
• Wire Preparation: Precise wire stripping required for 1.5mm² conductors
• Quality Control: Precision turned manufacturing ensures consistent performance
• Assembly: Compatible with HARTING crimp tooling systems for professional installation
• Connection Security: Male pin design with gold plating provides superior insertion reliability
• Industrial Standards: Meets highest industrial requirements for premium connections
• Professional Grade: Designed for critical applications requiring maximum reliability
