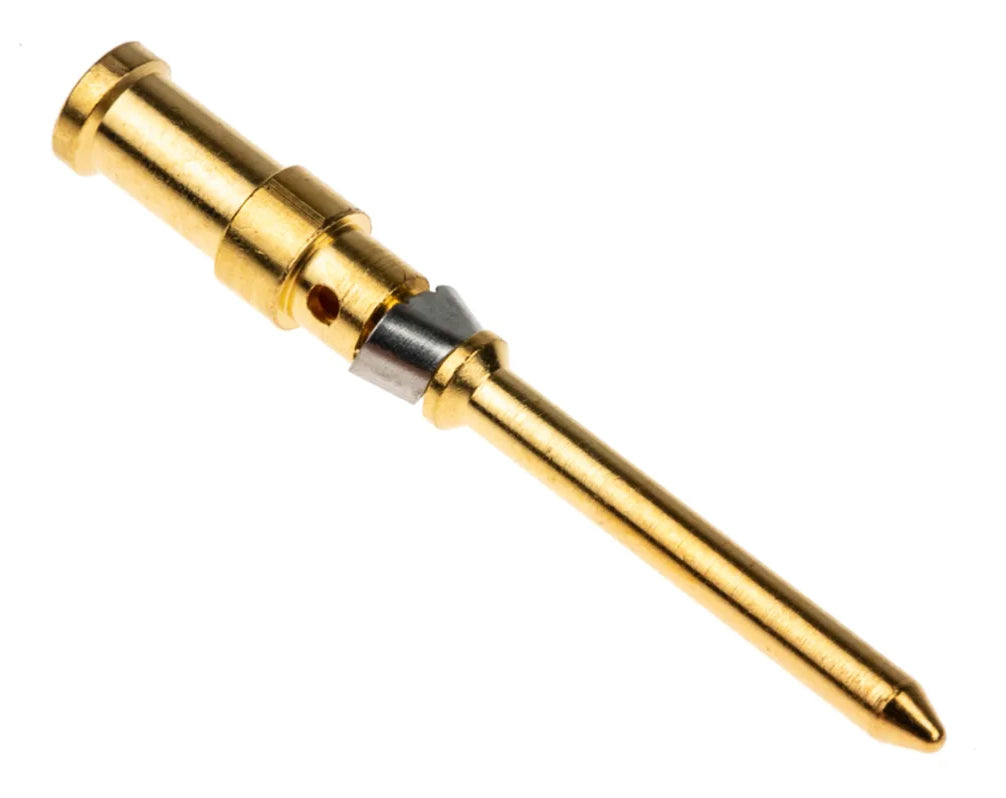

Harting Crimp contact, male, gold plated, c/s 0.14 - 0.37mm², 10A

Product Overview

The R 15-STI-C-0,14 QMM (AU) is a male crimp contact designed for the HARTING R 15 and Han D® connector series. This high-performance contact features gold-plated copper alloy construction with 0.14 ... 0.37 mm² conductor cross-section capability, engineered for reliable 10A electrical connections using crimp termination technology for AWG 26 ... AWG 22 wire applications in industrial circular connector systems.

Key Features

• Series: Han D®
• Category: Contacts
• Type: Crimp contact
• Gender: Male (pin contact)
• Current Rating: ≤10 A
• Conductor Cross-Section: 0.14 ... 0.37 mm²
• Wire Size: AWG 26 ... AWG 22
• Contact Material: Copper alloy
• Plating: Gold plated (AU)
• Termination Method: Crimp termination
• Application: R 15 series connectors
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤3 mΩ
• Wire Range: Multiple fine wire gauges supported

Technical Specifications

This R 15-STI-C male crimp contact provides reliable electrical connection with a rated current of up to 10A for 0.14 ... 0.37 mm² conductor cross-section (AWG 26 ... AWG 22) applications. The copper alloy construction with gold plating ensures excellent electrical conductivity, superior corrosion resistance, and long-term reliability with contact resistance ≤3 mΩ. The crimp termination method provides secure mechanical and electrical connection to the conductor without requiring soldering. The turned contact manufacturing process ensures precise dimensions and consistent performance. Compatible with R 15 series connector housings and inserts, this contact is designed for demanding industrial applications requiring dependable electrical connections with ultra-fine to fine wire compatibility across multiple gauge ranges.

Compliance & Environmental

• Rated current: ≤10 A
• Conductor cross-section: 0.14 ... 0.37 mm² (AWG 26 ... AWG 22)
• Contact resistance: ≤3 mΩ
• Gold-plated copper alloy construction
• Crimp termination technology
• Compatible with R 15 series connectors
• Compatible with Han D® series
• Turned contact manufacturing process
• Superior conductivity and corrosion resistance
• Multi-gauge wire compatibility
• Gold plating for enhanced performance

Applications

Ideal for precision instrumentation, signal transmission, and control applications requiring reliable electrical connections with ultra-fine to fine wire compatibility in R 15 circular connector assemblies. Perfect for applications where crimp termination provides secure wire connection for AWG 26 through AWG 22 conductors without soldering, such as sensor connections, data transmission lines, control signals, and low-power circuits. Suitable for high-density applications and precision instrumentation where gold-plated contacts ensure long-term reliability and minimal contact resistance. The 0.14 ... 0.37 mm² conductor capability makes it particularly useful for signal integrity applications requiring reliable connections with multiple fine wire gauges in demanding industrial environments. The broad wire gauge compatibility (AWG 26-22) provides exceptional flexibility for various application requirements while maintaining consistent performance.
