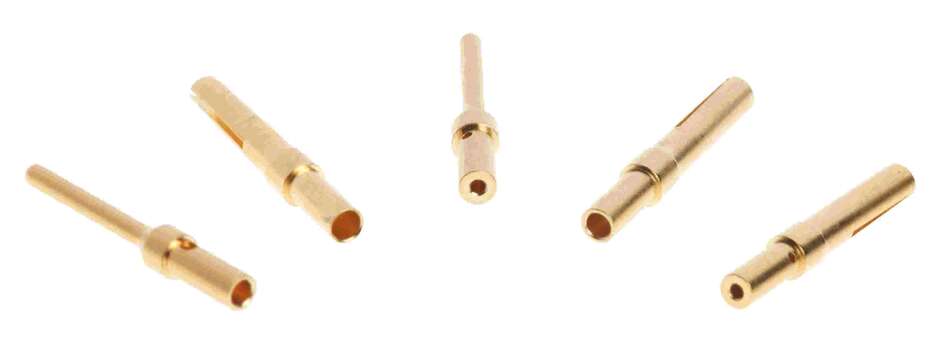

Harting Crimp contact, male, copper alloy, c/s 0.25 - 0.52mm²

Product Overview

The D-Sub MA AWG 20-24 crimp contact (article no. 09 67 000 8576) is a standard male crimp contact designed for D-Sub connector assemblies. Features precision turned manufacturing with noble metal over nickel plating for superior performance, accommodating wire gauges from AWG 20 to 24 for reliable electrical connections in industrial applications.

Key Features:

• Male (MA) crimp contact for D-Sub connectors
• Precision turned manufacturing process for enhanced quality
• Accommodates AWG 20-24 wire gauges (0.25-0.52 mm²)
• Copper alloy construction with noble metal over nickel plating
• Standard identification type for universal compatibility

Applications: D-Sub connector assemblies, industrial control systems, data communication interfaces, instrumentation connections, automation equipment, power and signal transmission.

Technical Specifications:

• Contact Type: Male (MA) crimp contact
• Wire Range: AWG 20-24 (0.25-0.52 mm²)
• Material: Copper alloy
• Plating: Noble metal over nickel (Ni)
• Manufacturing Process: Turned contacts
• Contact Resistance: ≤10 mΩ
• Stripping Length: 4.5mm
• Performance Level: 1 (acc. to CECC 75301-802)

Benefits:

• Precision turned manufacturing ensures superior contact performance
• Noble metal plating provides excellent corrosion resistance
• Secure crimp termination for reliable wire retention
• Medium wire gauge compatibility for versatile applications
• Low contact resistance for optimal electrical performance

Compliance: RoHS compliant with exemptions, ELV status compliant, REACH compliant
