Harting Crimp contact, male, c/s 0.09 - 0.25mm²

Product Overview

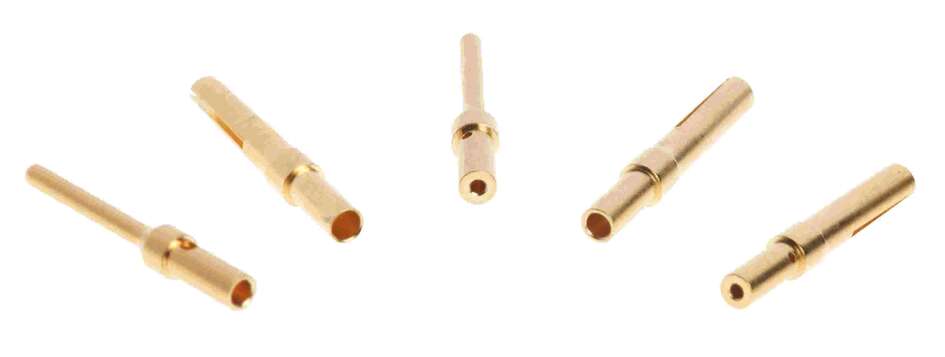

The D-SUB MA turned contact AWG 24-28 PL1 (article no. 09 67 000 7576) is a standard male crimp contact designed for D-Sub connector assemblies. Features precision turned manufacturing process for superior performance, accommodating wire gauges from AWG 24 to 28 with noble metal over nickel plating for enhanced reliability.

Key Features:

• Male (MA) turned contact for D-Sub connectors
• Precision turned manufacturing process for superior contact quality
• Accommodates AWG 24-28 wire gauges (0.09-0.25 mm²)
• Copper alloy construction with noble metal over nickel plating
• Standard identification type with PL1 specification

Applications: D-Sub connector assemblies, precision instrumentation, data communication interfaces, industrial control systems, automation equipment, signal transmission applications.

Technical Specifications:

• Contact Type: Male (MA) turned crimp contact
• Wire Range: AWG 24-28 (0.09-0.25 mm²)
• Material: Copper alloy
• Plating: Noble metal over nickel (Ni)
• Manufacturing Process: Turned contacts
• Series: D-Sub standard
• Specification: PL1

Benefits:

• Precision turned manufacturing ensures superior contact performance
• Noble metal plating provides excellent corrosion resistance
• Secure crimp termination for reliable wire retention
• Copper alloy construction for optimal conductivity
• Standard design ensures broad D-Sub connector compatibility

Compliance: RoHS compliant
