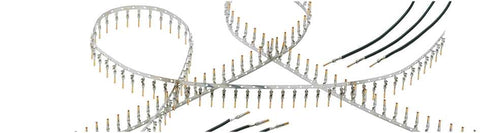

Harting Crimp contact, female, AWG24 - 20, c/s 0.25 - 0.52mm²

Product Overview

The DSUB-FE-CR-KON.AWG20-24;AFS2;EINZ (article no. 09 67 000 8278) is a standard female crimp contact designed for D-Sub connector assemblies. Features reliable crimp termination for wire gauges from AWG 20 to 24, constructed from copper alloy for secure electrical connections in industrial and commercial applications. EINZ designation indicates individual packaging.

Key Features:

• Female (FE) crimp contact for D-Sub connectors
• Accommodates AWG 20-24 wire gauges (0.25-0.52 mm²)
• Copper alloy construction for reliable conductivity
• Standard identification type for universal compatibility
• AFS2 specification with individual (EINZ) packaging

Applications: D-Sub connector assemblies, industrial control systems, data communication interfaces, instrumentation connections, automation equipment, signal transmission applications.

Technical Specifications:

• Contact Type: Female (FE) crimp contact
• Wire Range: AWG 20-24 (0.25-0.52 mm²)
• Material: Copper alloy
• Series: D-Sub standard
• Termination: Crimp connection
• Specification: AFS2;EINZ (individual packaging)
• Contact Resistance: ≤10 mΩ
• Stripping Length: 4.5mm

Benefits:

• Secure wire retention with crimp termination
• Medium wire gauge compatibility for versatile applications
• Reliable electrical conductivity from copper alloy construction
• Standard design ensures broad D-Sub connector compatibility
• Individual packaging for precise inventory control

Compliance: RoHS compliant with exemptions, ELV status compliant
