Harting Copper cable, PVC, 4x AWG 22/7, class D, 100m

Product Overview

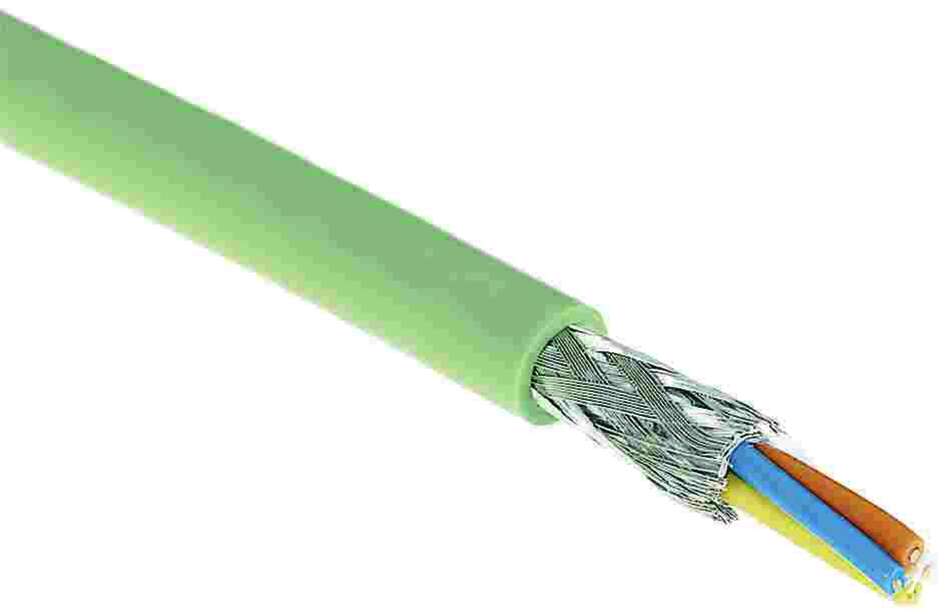

The HAR PROFINET Type B 4xAWG22/7 PVC 100m cable (article no. 09 45 600 0102) is an industrial Ethernet bulk cable for PROFINET applications. Features four twisted pairs of 22 AWG stranded conductors with green PVC jacket for reliable data transmission in industrial automation networks.

Key Features:

• PROFINET Type B compliant, Cat. 5 Class D up to 100 MHz
• 4-core AWG 22/7 stranded, shielded construction
• Flame retardant and sunlight resistant green PVC jacket
• 100-meter length, 6.3-6.7mm diameter
• Operating temperature: -40°C to +80°C

Applications: Industrial automation networks, factory floor communications, machine connectivity, control panel wiring, production line infrastructure.

Technical Specifications:

• Transmission: Cat. 5 Class D, 10/100 Mbit/s, 100Ω ±5% impedance
• Construction: 4 x AWG22/7 stranded, shielded, green PVC jacket
• Electrical: ≤120 Ω/km loop resistance, 2kV test voltage
• Environmental: -40°C to +80°C operating, 5x diameter bending radius
• Weight: 68 g/m, 5,400g total

Standards: EN 13602, EN 50290-2-23/22, UN/ECE-R 118, PROFINET compliant

Compliance: RoHS, ELV, China RoHS, REACH compliant. No SVHC or Proposition 65 substances.
