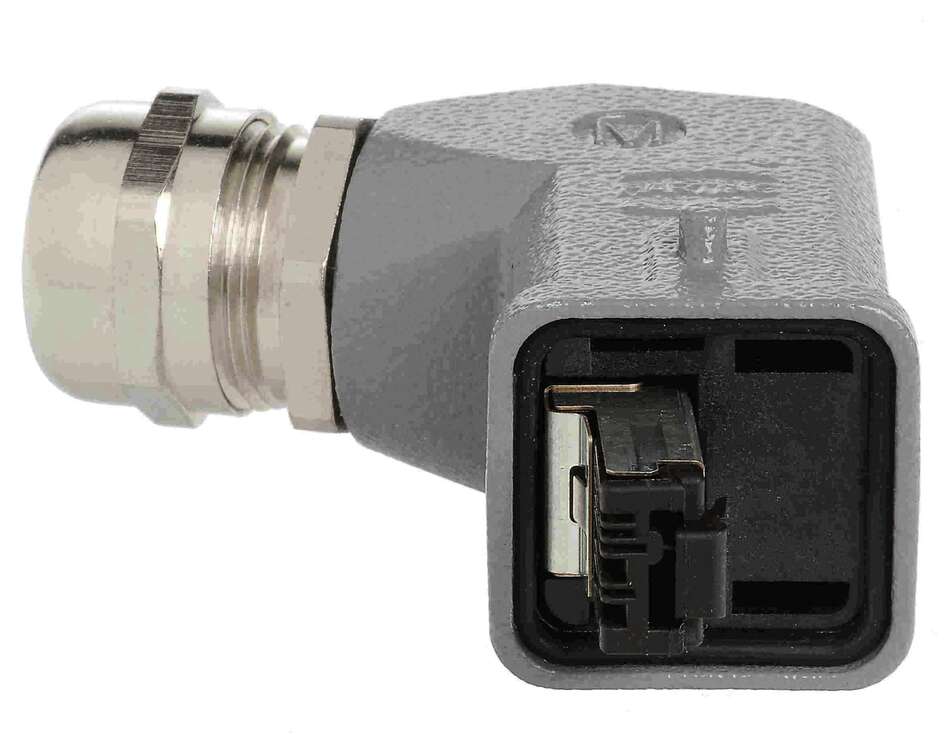

Harting Connector, IDC termination, angled, RJ45 CAT5 plug

Product Overview

The Han3A RJ45 Cat5 Plug 4p IDC Angled is an industrial-grade Ethernet connector designed for demanding networking applications requiring reliable Cat5 performance in harsh environments. Features angled configuration with insulation displacement connection (IDC) technology for quick and secure cable termination. Part of the Han3A series with RJ45 specification, providing robust connectivity for industrial Ethernet applications where space optimization and environmental protection are critical.

Key Features

• RJ45 connector with Cat5 transmission performance
• 4-pole configuration for Ethernet applications
• Angled design for space-efficient cable routing
• IDC (Insulation Displacement Connection) termination
• Industrial-grade construction for harsh environments
• Compatible with Han3A connector housings
• Cat5 Class D performance up to 100 MHz
• Temperature range: -40°C to +70°C
• Cable diameter range: 5-9 mm

Technical Specifications

• Connector Type: RJ45 plug connector
• Performance Category: Cat5 Class D up to 100 MHz
• Number of Poles: 4-pole
• Configuration: Angled plug
• Termination Method: IDC (Insulation Displacement Connection)
• Wire Compatibility: AWG 22-24 (stranded), AWG 22-23 (solid)
• Cable Diameter: 5-9 mm
• Temperature Range: -40°C to +70°C
• Series: Han3A
• Element Type: Cable connector
• Application Standard: RJ45

Installation Details

• IDC termination eliminates need for wire stripping
• Angled configuration for space-constrained installations
• Quick and reliable cable connection process
• Compatible with standard Cat5 network cables
• Suitable for both solid and stranded conductors

Applications

• Industrial Ethernet networks in manufacturing environments
• Automation systems requiring reliable data transmission
• Control panel installations with space constraints
• Process control networks requiring Cat5 performance
• Industrial communication systems
• Factory floor networking applications
• Equipment requiring angled cable connections

Compatibility

• Compatible with Han3A connector housings and frames
• Designed for standard RJ45 Ethernet applications
• Suitable for Cat5 network cable specifications
• Part of comprehensive Han3A connector system
• Compatible with industrial Ethernet protocols

Environmental Protection

• Temperature Range: -40°C to +70°C operational
• IP Protection: Dependent on housing selection
• Industrial Design: Robust construction for harsh environments
• Cable Sealing: Integrated strain relief and sealing
• Vibration Resistant: Secure IDC connection technology

Important Configuration

• Requires compatible Han3A housing for complete assembly
• Cable diameter must be within 5-9 mm range
• IDC termination requires proper cable preparation
• Angled design requires adequate space for cable bend radius
• Performance depends on proper installation and cable quality

Performance Characteristics

• Category: Cat5 Class D transmission performance
• Frequency Range: Up to 100 MHz
• Data Rate: Suitable for 100 Mbps Ethernet applications
• Connector Standard: RJ45 compatible
• Transmission Quality: Industrial-grade signal integrity

Wire Specifications

• Stranded Wire: AWG 22-24
• Solid Wire: AWG 22-23
• Cable Diameter: 5-9 mm
• Termination: IDC (no wire stripping required)
• Contact Material: Industrial-grade contacts for reliable connection

Certifications and Compliance

• Standards: RJ45 connector standard
• Performance: Cat5 Class D up to 100 MHz
• Industrial Standards: Designed for industrial environments
• Temperature Rating: -40°C to +70°C
• RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant design
• Industrial-grade materials and construction
• Designed for harsh environmental conditions
• Long-term reliability in demanding applications
