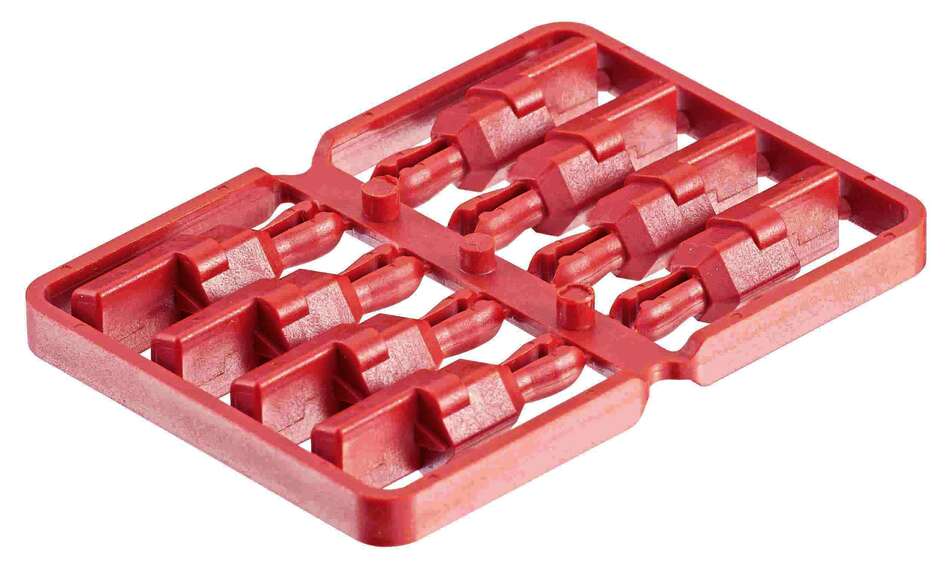

Harting Coding element, thermoplastic, 8 pieces per frame.

Product Overview

The Han-Yellock coding pin set (article no. 11 00 000 9501) is a professional coding accessory for Han-Yellock connector systems. Features 8 thermoplastic coding pins per frame that provide essential polarization and mating prevention capabilities, ensuring proper connector alignment and preventing incorrect connections in industrial applications.

Key Features:

• Set of 8 coding pins per frame for comprehensive polarization options
• Thermoplastic construction for durability and reliability
• Dedicated coding cavities preserve all electrical contact positions
• Multiple coding combinations available through strategic placement
• Compatible with all Han-Yellock connector sizes
• Professional-grade coding elements for industrial applications
• Easy installation and configuration
• Prevents incorrect connector mating and ensures proper alignment

Applications:

Han-Yellock connector installations, industrial automation systems, safety-critical applications, manufacturing assembly operations, multi-connector installations, field installations requiring error-proof assembly, control panel applications, production line infrastructure.

Technical Specifications:

• Category: Accessories for Han-Yellock series
• Type: Coding element/polarization pin
• Material: Thermoplastic construction
• Pack Contents: 8 pieces per frame
• Function: Polarization and mating prevention
• Installation: Dedicated coding cavities in Han-Yellock connectors
• Compatibility: All Han-Yellock connector systems (10, 30, 60 series)
• Application Environment: Industrial automation and control systems

Functionality:

Physical barrier system that creates mechanical interference when connectors are incorrectly aligned. Han-Yellock series features separate dedicated cavities specifically for coding elements, ensuring coding function does not consume electrical contact positions. Multiple positioning options enable custom coding schemes for complex installations.

System Benefits:

• No loss of electrical contact positions due to dedicated coding cavities
• Robust mechanical coding system prevents mating errors
• Multiple coding combinations for system differentiation
• Compatible with harsh industrial environments
• Precision-manufactured for consistent performance
• Easy field installation and maintenance

Standards:

Industrial connector standards compliant, RoHS compliant thermoplastic materials.

Compliance:

RoHS compliant materials, industrial automation standards, Harting quality specifications.
