Harting Cable gland, M25, clamping range 9 -18mm

Product Overview

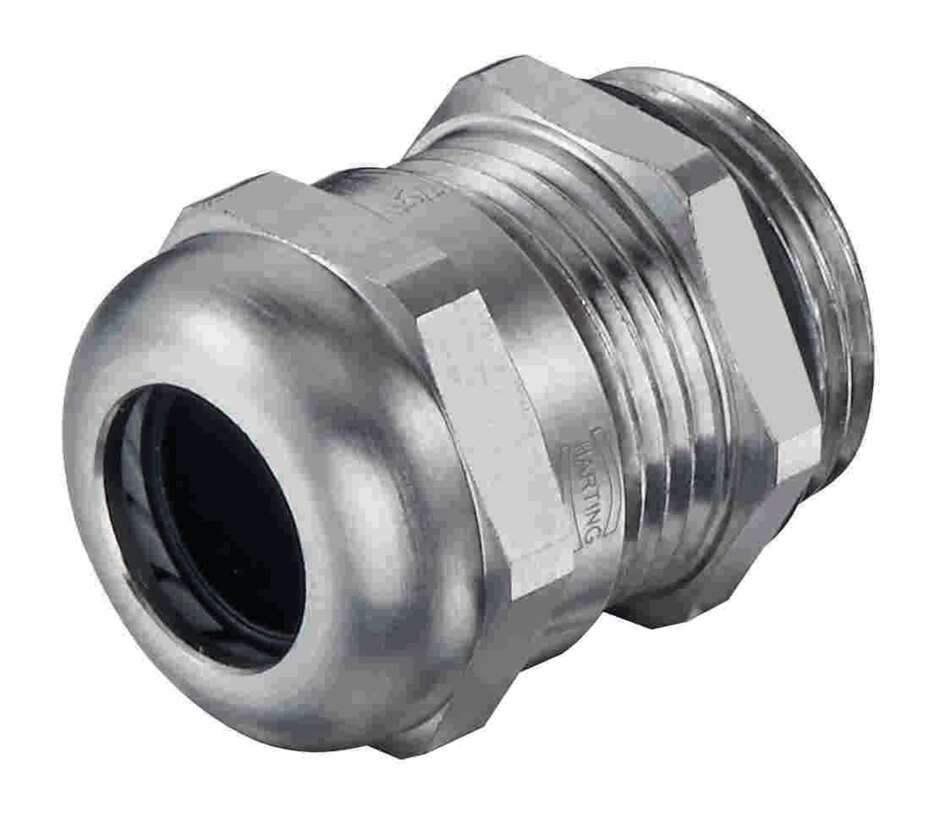

The Han CGM-M M25x1.5 cable gland (article no. 19 00 000 5091) is a versatile metal cable gland designed for Han series industrial connectors. Features nickel-plated brass construction with M25x1.5 metric thread and dual cable diameter range (9-16mm/13-18mm), providing IP68/IP69K environmental protection for flexible cable installation requirements.

Key Features:

• M25x1.5 metric thread for secure installation
• Dual cable diameter range: 9-16mm and 13-18mm for versatility
• Brass construction with nickel-plated surface finish
• IP68/IP69K protection rating (IEC 60529/ISO 20653)
• Polyamide (PA) clamping ring with NBR seal
• 30mm wrench size for easy installation
• Operating temperature range: -40°C to +100°C
• Compatible with Han CGM-M series connectors

Applications:

Han series industrial connectors, cable plug assemblies, panel mounting housings, surface mounting applications, industrial automation systems, control cabinets, manufacturing equipment, process control installations requiring flexible cable diameter options.

Technical Specifications:

• Category: Cable glands for industrial connectors
• Series Compatibility: Han CGM-M
• Thread: M25x1.5 metric thread
• Cable Diameter Range: 9-16mm / 13-18mm (dual range)
• Overall Clamping Range: 9-18mm
• Material: Brass with nickel-plated finish
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Clamping Ring: Polyamide (PA)
• Protection Rating: IP68, IP69K/IPX9K
• Operating Temperature: -40°C to +100°C
• Tightening Torque: ≤12 Nm (cable dependent)
• Wrench Size: 30mm
• Width Across Corners: 33.5mm
• Length: 33mm

Environmental Protection

Provides complete sealing from dust and water ingress with IP68 rating for submersion protection and IP69K/IPX9K rating for high-pressure, high-temperature wash-down applications. The NBR seal and polyamide clamping ring ensure reliable long-term environmental protection across the full cable diameter range.

System Benefits:

• Dual cable diameter range reduces inventory requirements
• Excellent cable retention and strain relief for various cable sizes
• Waterproof and dust-tight sealing across full diameter range
• Corrosion-resistant nickel-plated finish
• Easy field installation with standard tools
• Compatible with non-armoured cables in multiple sizes

Standards:

• IEC 60529 (IP68 protection rating)
• ISO 20653 (IP69K/IPX9K high-pressure wash-down rating)
• Industrial connector accessory standards
• Marine certification compliance
• Metric thread specifications

Compliance:

• RoHS compliant with exemptions
• ELV compliant
• China RoHS 50
• Industrial automation standards
• Marine environment approved
• Contains lead and nickel as per regulatory disclosures
