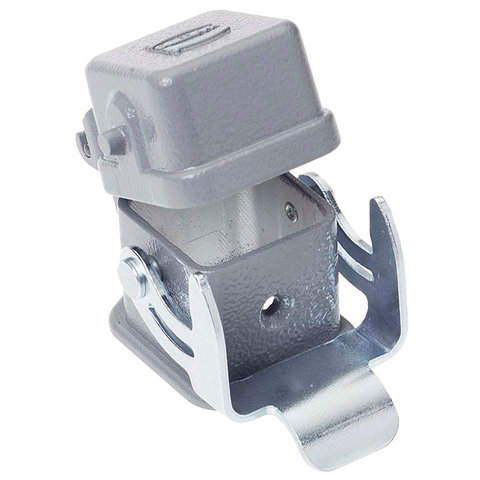

Harting Bulkhead housing with metal cover, size 3A

Product Overview

The Han 3A-HBM-SL-C cap with seal (Article No.: 09 20 003 0306) is a hinged connector hood with integrated seal from HARTING's Han A® series. This metal body dust cap/cover features a spring-loaded hinged design with seal for reliable protection of industrial connectors in demanding environments.

Key Features:

• Belongs to the Han A® series of hoods and housings
• Hinged cap design with integrated seal for enhanced environmental protection
• Spring-loaded mechanism with secure locking functionality
• Compatible with bulkhead mount applications
• Metal body construction for superior durability and longevity
• Gray color finish for industrial aesthetics
• IP rated protection when properly mated

Technical Specifications:

• Article Number: 09 20 003 0306
• Category: Hoods / Housings
• Series: Han A®
• Type: Hinged cap with seal
• Mounting Type: Bulkhead Mount Compatible
• Material: Metal body construction
• Color: Gray
• Weight: 0.06432 kg
• Country of Origin: Romania
• RoHS Compliant: Yes

Applications: This connector hood is designed for industrial applications requiring reliable protection against environmental factors including dust, moisture, and mechanical stress. The hinged cap with seal provides convenient access during maintenance while maintaining optimal protection when closed. Ideal for use in automation, process control, and industrial machinery applications.

Benefits:

• Quick and easy access with hinged design
• Reliable sealing protection against environmental ingress
• Durable metal construction for long service life
• Spring-loaded mechanism ensures secure closure
• Compatible with standard Han A® connector systems

Download existing graphical data for this product:

• Technical Data Sheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD & Engineering Data
