Harting Bulkhead housing with metal cover, size 16B

Product Overview

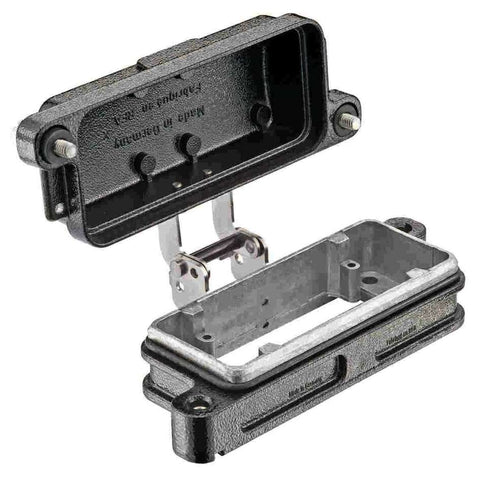

The Han 16HPR Base Panel Screw Lock Cover is a protective housing cover designed for harsh outdoor environments requiring secure panel-mounted connector protection. Features aluminum die-cast construction with screw locking mechanism for reliable environmental sealing. Part of the Han® HPR series with size 16B configuration, providing superior protection for bulkhead-mounted connector installations where maximum environmental resistance is critical.

Key Features

• Base panel cover for bulkhead-mounted installations
• Screw locking mechanism for secure environmental sealing
• Size 16B configuration for larger connector applications
• Aluminum die-cast construction for superior durability
• Multiple IP protection ratings: IP65/IP68/IP69
• Powder-coated surface in RAL 9005 (jet black)
• NBR sealing material for optimal environmental protection
• Designed specifically for harsh outdoor environments

Technical Specifications

• Housing Size: 16B
• Cover Type: Base panel screw lock cover
• Locking Type: Screw locking mechanism
• Temperature Range: -40°C to +125°C
• IP Protection: IP65/IP68/IP69 (IPX9K per ISO 20653)
• UL Type Rating: 4, 4X, 12 (per UL 50/UL 50E)
• Housing Material: Aluminum die-cast
• Surface Finish: Powder-coated
• Housing Color: RAL 9005 (jet black)
• Seal Material: NBR (Nitrile rubber)
• Series: Han® HPR
• Application Standard: IEC 61984

Installation Details

• Designed for panel-mounted connector installations
• Screw locking mechanism ensures secure environmental seal
• Compatible with Han 16HPR base panel housings
• Requires proper installation for optimal protection ratings
• NBR gasket provides reliable environmental sealing

Applications

• Outdoor industrial equipment requiring weatherproof protection
• Marine and offshore installations
• Food processing equipment with washdown requirements
• Transportation and rail system connections
• Heavy machinery in harsh environmental conditions
• Control panels exposed to extreme weather conditions

Compatibility

• Compatible with Han 16HPR base panel housing (09400160311)
• Designed for size 16B connector configurations
• Part of comprehensive Han® HPR connector system
• Suitable for various Han 16 series insert configurations

Environmental Protection

• IP65: Complete dust protection and water jet resistance
• IP68: Dust-tight and submersion protection
• IP69: High-pressure, high-temperature washdown protection
• Temperature Range: -40°C to +125°C operational
• Corrosion Resistant: Aluminum construction with protective coating
• Weatherproof: Designed for harsh outdoor environments

Important Configuration

• Must be used with compatible Han 16HPR base panel housing
• Proper installation critical for environmental protection ratings
• Environmental sealing depends on correct assembly procedures
• Regular inspection recommended for harsh environment applications
• Follow manufacturer specifications for optimal performance

Certifications and Compliance

• Standards: IEC 61984, IEC 60529
• UL Type Rating: UL 50/UL 50E (Type 4, 4X, 12)
• CSA Certification: CSA-C22.2 No. 182.3
• Environmental: IP65/IP68/IP69 per IEC 60529
• ISO 20653: IPX9K high-pressure washdown protection
• RoHS: Compliant
• ELV: Compliant
• China RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant with applicable exemptions
• REACH Annex XVII: No restricted substances
• REACH Annex XIV: No authorization required substances
• ELV directive compliant
• China RoHS environmental compliance
