Harting Bulkhead housing, single locking, size 16A

Product Overview

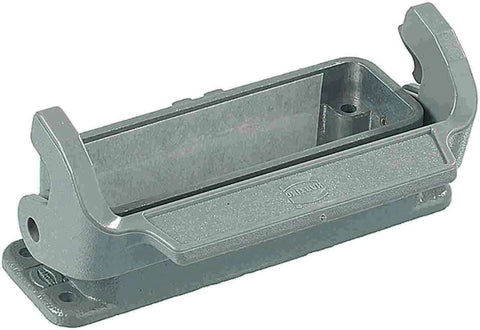

The Han 16A-HBM-SL (Article No.: 09 20 016 0301) is a bulkhead housing from HARTING's Han A® series featuring low construction design with single locking lever. This size 16A panel mount housing provides straight feed-through configuration with IP65 protection for industrial connector applications.

Key Features:

• Han A® series bulkhead housing, size 16A
• Low construction design with single locking lever (Han-Easy Lock®)
• Straight panel mounting for feed-through applications
• Aluminium die-cast construction with powder coating
• IP65 protection rating with NBR seal
• Stainless steel and polycarbonate components

Technical Specifications:

• Article Number: 09 20 016 0301
• Category: Hoods/Housings
• Series: Han A®, Size 16A
• Type: Bulkhead housing (panel mount)
• Construction: Low construction
• Locking: Single locking lever (Han-Easy Lock®)
• Entry Configuration: Straight (panel feed-through)
• Material: Aluminium die-cast (housing), Stainless steel, Polycarbonate (PC)
• Finish: Powder-coated
• Color: RAL 7037 (dust grey)
• Seal Material: NBR (nitrile rubber)
• Protection Rating: IP65
• NEMA Rating: NEMA 4/4X/12 (acc. to UL 50)
• Operating Temperature: -40°C to +125°C
• Flammability Rating: UL94 V-0
• Panel Cut-out: 24 x 73 mm
• Dimensions: 96 mm L x 51.1 mm W

Applications: Designed for industrial panel mounting applications requiring robust bulkhead solutions for Han A® connector systems. Ideal for control cabinets, automation equipment, and industrial machinery where secure panel feed-through connections with 16A current ratings are needed.

Benefits:

• Bulkhead design enables secure panel mounting with feed-through capability
• Low construction profile minimizes space requirements behind panels
• IP65 protection ensures reliability in demanding industrial environments
• Single locking lever (Han-Easy Lock®) provides secure and easy operation
• Aluminium die-cast construction ensures excellent durability and corrosion resistance
• NBR seal provides excellent sealing performance across wide temperature ranges
• Wide operating temperature range (-40°C to +125°C) for extreme conditions
• Compatible with Han A® and D series 16A inserts for flexible system integration

Compatibility: Compatible with Han 16A inserts and hoods. Works with appropriate inserts to provide comprehensive connectivity solutions for industrial applications requiring 16A current ratings and panel mounting capabilities.
