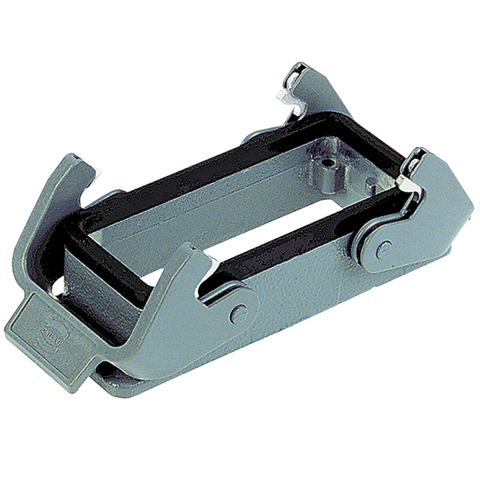

Harting Bulkhead housing, double locking, dust grey, size 24B

Product Overview

The Han 24B-HBM-DL (SKU: 09300240301) is a heavy-duty aluminum die-cast bulkhead mounting housing designed for the largest industrial connector applications. Features double locking lever mechanism with Han-Easy Lock technology and provides maximum connectivity capacity for size 24B applications in demanding industrial environments.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for high-density applications
• Double Locking Lever (DL): Secure dual-lever locking mechanism with Han-Easy Lock
• Bulkhead Mounting (HBM): Panel-mount design for through-wall installations
• Aluminum Die-Cast Construction: Durable housing with powder-coated finish
• NBR Sealing: High-performance nitrile rubber seals for environmental protection
• IP65 Protection: Superior environmental sealing for industrial applications

Technical Specifications:

• Article Number: 09 30 024 0301
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (largest capacity)
• Type: Bulkhead housing with double locking lever
• Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)
• Locking: Double locking lever with Han-Easy Lock
• Sealing Material: NBR (Nitrile Butadiene Rubber)
• Protection Rating: IP65

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Marine Certification: DNV GL approved
• Industrial Standards: UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076

Applications: Essential for the most demanding high-power industrial applications, large-scale manufacturing equipment, and complex automation systems requiring maximum connectivity capacity. Ideal for applications with multiple high-current circuits and extensive signal routing requirements.

Compatibility:

• Compatible with Han® B series size 24B inserts and mating connectors
• Supports maximum insert configurations for complex connectivity requirements
• Works with Han-Easy Lock technology for simplified connections
• Alternative metal lever version available (04300240301)

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
