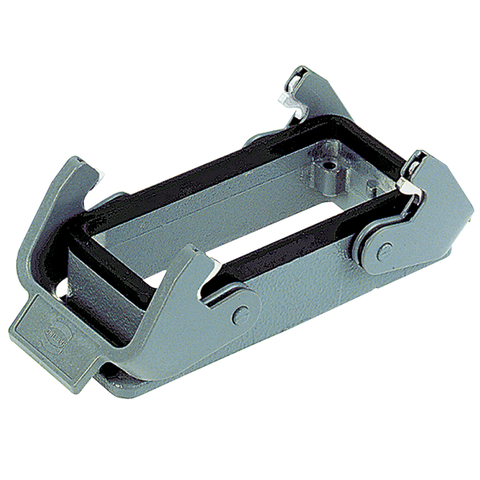

Harting Bulkhead housing, double locking, dust grey, size 16B

Product Overview

The Han 16B-HBM-DL (SKU: 09300160301) is a heavy-duty aluminum bulkhead mounting housing designed for industrial connector applications. Features double locking lever mechanism with Han-Easy Lock technology and provides robust connectivity solutions for size 16B applications in demanding industrial environments.

Key Features:

• Double Locking Lever (DL): Secure dual-lever locking mechanism with Han-Easy Lock
• Bulkhead Mounting (HBM): Panel-mount design for through-wall installations
• Aluminum Construction: Lightweight yet durable die-cast aluminum body
• Size 16B: Large capacity housing for high-density applications
• Low Profile Design: Space-efficient mounting configuration
• Industrial Grade: Built for demanding industrial environments

Technical Specifications:

• Article Number: 09 30 016 0301
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Bulkhead housing with double locking lever
• Material: Die-cast aluminum
• Mounting Type: Panel mount (bulkhead)
• Locking: Double locking lever with Han-Easy Lock

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: UL, CSA, SEV certified

Applications: Ideal for high-density industrial machinery, automation equipment, and control panels where reliable electrical connections through panel walls are required. The size 16B configuration supports multiple insert options for complex connectivity requirements.

Compatibility: Compatible with Han® B series size 16B inserts from DD, EE, E, ES, EAV, Com and modular series. The bulkhead mounting design provides versatile installation options for panel-mounted applications.
