Harting Bulkhead housing, double locking, dust grey, size 10B

Product Overview

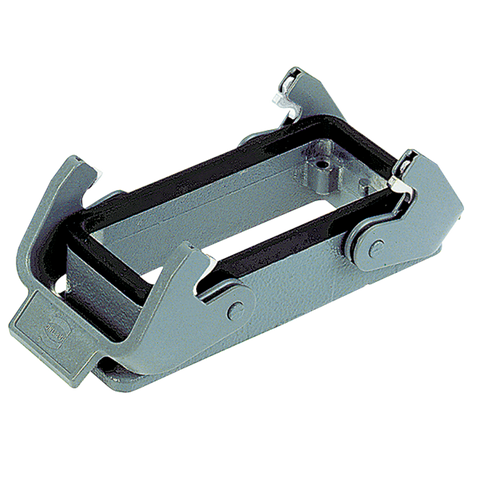

The Han 10B-HBM-DL (SKU: 09300100301) is a heavy-duty bulkhead mounting housing designed for industrial connector applications. This die-cast aluminum housing features a double locking lever mechanism and provides robust connectivity solutions for demanding industrial environments with IP65 protection rating.

Key Features:

• Double Locking Lever (DL): Secure dual-lever locking mechanism for reliable connection
• Bulkhead Mounting (HBM): Panel-mount design for through-wall installations
• Die-Cast Aluminum Construction: Powder-coated finish for durability and corrosion resistance
• IP65 Protection: Superior sealing against dust and water ingress
• Size 10B: Compatible with Han B series inserts and accessories
• Panel Cut-out: 35 x 60 mm mounting dimensions

Technical Specifications:

• Article Number: 09 30 010 0301
• Category: Hoods/Housings
• Series: Han® B
• Type: Bulkhead housing with double locking lever
• Size: 10B
• Material: Die-cast aluminum, powder coated
• Mounting Type: Panel mount (bulkhead)
• Panel Cut-out Dimensions: 35 x 60 mm
• Degree of Protection: IP65
• Approvals: UL, CSA, SEV certified

Compatibility: This housing is compatible with appropriate inserts from the Han DD®, EE, E, ES, EAV, Com and modular series. The housing provides a versatile platform for various insert configurations to meet specific application requirements.

Applications: Ideal for industrial machinery, automation equipment, and control panels where reliable electrical connections through panel walls are required. The robust construction and double locking mechanism make it suitable for applications with vibration, moisture, and harsh environmental conditions.

Installation Notes:

• Requires 35 x 60 mm panel cutout
• Should not be mated or unmated under electrical load
• Connectors in line arrangements should be polarized to prevent wrong connections
• Compatible with Han B series inserts (sold separately)
