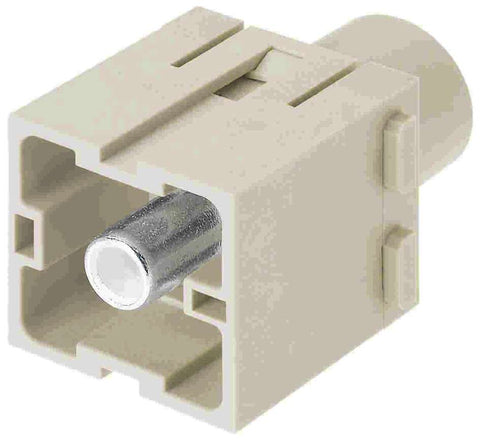

Harting Axial module, male, 1 contact, c/s 25 - 40mm²

Product Overview

The Han 200A axial module male is a high-performance heavy-duty power connector designed for the HARTING Han-Modular® connector system with axial termination and high-current capability. This precision-engineered module features polycarbonate construction with 25-40mm² conductor compatibility and is optimized for industrial high-power applications requiring reliable 200A current transmission, superior electrical performance, and robust mechanical retention in demanding power distribution systems.

Key Features

• Series: Han-Modular®
• Type: 200A Axial Module
• Category: High-Current Power Module
• Gender: Male
• Current Rating: 200A
• Voltage Rating: 1000V
• Conductor Cross-Section: 25-40 mm²
• Termination: Axial termination
• Material: Polycarbonate
• Contacts: 1 contact
• Mating Cycles: >500 cycles
• Operating Temperature: -40°C to +125°C
• Construction: Robust polycarbonate body
• Application: High-power transmission
• Compatibility: Han-Modular® system integration

Technical Specifications

This 200A axial module is part of the Han-Modular® system, featuring precision-molded polycarbonate construction for secure and reliable high-current power transmission. The module accommodates conductor cross-sections from 25-40mm² with axial termination method for heavy-duty power applications. Rated for 200A at 1000V with over 500 mating cycles, this module maintains consistent electrical performance in demanding industrial environments. The axial configuration provides direct cable entry for high-current applications with superior electrical contact integrity. The robust polycarbonate body ensures excellent electrical insulation and mechanical durability across a wide temperature range of -40°C to +125°C for long-term reliability in heavy-duty power distribution systems.

Compliance & Environmental

• High-current industrial standards compliant
• RoHS compliant construction
• ELV status compliant
• REACH compliant materials
• Industrial-grade polycarbonate construction
• Han-Modular® system compatibility
• Wide operating temperature range: -40°C to +125°C
• High-voltage rating: 1000V
• High-current rating: 200A
• 500+ mating cycle durability
• Heavy-duty power application rated

Applications

Ideal for industrial power distribution, heavy machinery, and high-current applications requiring reliable 200A power transmission with modular connectivity. Perfect for manufacturing equipment, power distribution systems, and industrial installations where high-current male connections and modular flexibility are critical. The 200A rating with axial termination makes it essential for heavy-duty power applications, large motor connections, and industrial power systems where reliable high-current transmission and modular connectivity are mandatory for operational efficiency and safety.

Download existing graphical data for this product:

• Product Datasheet (EN)
• Product Declaration Certificate (EN)
• Technical Drawing
• HARTING eCatalogue
