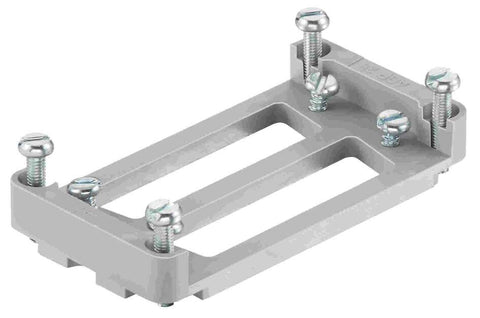

Harting Adapter plate for 2x D-Sub, thermoplastic, size 10B

Product Overview

The Adapter Han 10B - 2x D-Sub 25 is a high-density interface adapter from HARTING that enables simultaneous connection of two standard D-Sub 25-pin connectors within a single Han® 10B industrial connector housing. This thermoplastic adapter plate maximizes connectivity density while providing reliable interface conversion for demanding industrial applications.

Key Specifications

• Article Number: 09 30 000 9972
• Category: Accessories
• Type: Adapter plate
• Description: Interface adapter for 2x D-Sub connectors
• Material: Thermoplastic construction
• Size: 10B
• D-Sub Configuration: Dual 25-pin D-Sub (2x D-Sub 3)
• Compatibility: Han® 10B series connectors

Technical Features

• Dual Interface Conversion: Accommodates two 25-pin D-Sub connectors simultaneously
• Thermoplastic Construction: Durable and lightweight material
• High-Density Design: Maximum connectivity in single 10B housing
• Precision Fit: Designed for exact compatibility with Han® 10B housings
• Professional Installation: Integrates seamlessly with existing connector systems

Applications & Usage Ideal for high-density applications requiring multiple D-Sub 25-pin connections within a single industrial connector. Perfect for complex control systems, data acquisition equipment, and industrial automation where space efficiency and multiple parallel connections are critical. Commonly used in multi-channel data communication and parallel interface applications.

Compatibility

• Series Compatibility: Han® 10B series connectors and housings
• D-Sub Type: Dual 25-pin D-Sub connectors (DB25)
• Installation: Direct mounting in Han® 10B housings
• Interface Standard: Standard D-Sub 25-pin configuration (2x)

Download existing graphical data for this product:

• Product Datasheet
• Product Declaration Certificate
• EPLAN Data Portal - CAD Models & Technical Data
