Harting Adapter, panel feed, female, zinc die cast, RJ45, M12, 8-pole

Product Overview

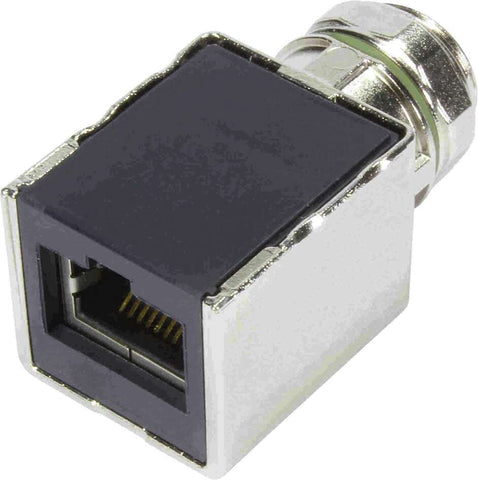

The HARTING M12 to RJ45 Cat 6a straight adapter provides seamless connectivity between industrial M12 circular connectors and standard RJ45 Ethernet connections. This inline adapter features Cat 6a transmission characteristics up to 500 MHz for high-speed industrial Ethernet applications with IP65/IP67 environmental protection when mated.

Key Features

• Cat 6a Class EA transmission characteristics up to 500 MHz
• M12 8-position receptacle to RJ45 8-position jack configuration
• Straight inline adapter design for direct connections
• IP65/IP67 degree of protection in mated condition
• Panel mount capability with variable panel thickness accommodation
• UL 94 V-0 flame retardant material construction

Technical Specifications

• Series: Circular connectors M12, RJ45
• Category: Accessories
• Connector Type: Inline adapter
• Connector A: M12 8-position receptacle
• Connector B: RJ45 8-position jack
• Configuration: Straight
• Product Range: har-speed series

Transmission Characteristics

• Category: Cat 6a Class EA performance
• Frequency Range: Up to 500 MHz
• Data Rate: Supports 10 Gigabit Ethernet applications
• Positions: 8-way connectivity
• Shielding: Industrial-grade shielded construction
• Standards Compliance: Meets Cat 6a performance specifications

Installation Details

• Panel Thickness: 2.1 ... 4.5 mm accommodation range
• Mounting: Panel mount configuration
• Connection Method: Direct inline adapter connection
• Gender Configuration: M12 receptacle to RJ45 jack
• Assembly: Ready-to-use adapter requiring no field assembly

Environmental Specifications

• Operating Temperature: -40°C to +85°C
• Protection Rating: IP65/IP67 when mated
• Material Flammability: UL 94 V-0 rated
• Construction: Industrial-grade materials for harsh environments
• Durability: Designed for demanding industrial applications

Applications

• Industrial Ethernet network connections
• Factory automation systems requiring M12 to RJ45 conversion
• Machine vision and camera systems
• Industrial communication networks
• Automation equipment interface applications
• Data acquisition and control systems
• Manufacturing and process control environments

Standards and Compliance

• Safety Standards: CSA-C22.2 No. 182.3 ECBT8.E102079
• Performance Standards: Cat 6a Class EA up to 500 MHz
• Flame Rating: UL 94 V-0 material compliance
• Environmental: IP65/IP67 protection rating
• RoHS Compliance: RoHS compliant construction

Compatibility

• Compatible with M12 D-coded and X-coded connections
• Standard RJ45 Ethernet interfaces
• Industrial Ethernet protocols and standards
• Cat 6a cable assemblies and infrastructure
• Industrial automation and control systems
• Machine vision and imaging applications

Download existing graphical data for this product:

• Product Data Manager
• HARTING Download Center
• Technical Documentation Portal
