Werma Twinlight design, green light, 24VAC/DC, 70 x 66mm

Product Information

Article Number: 647.230.75

Voltage: 24V AC/DC

Product Description

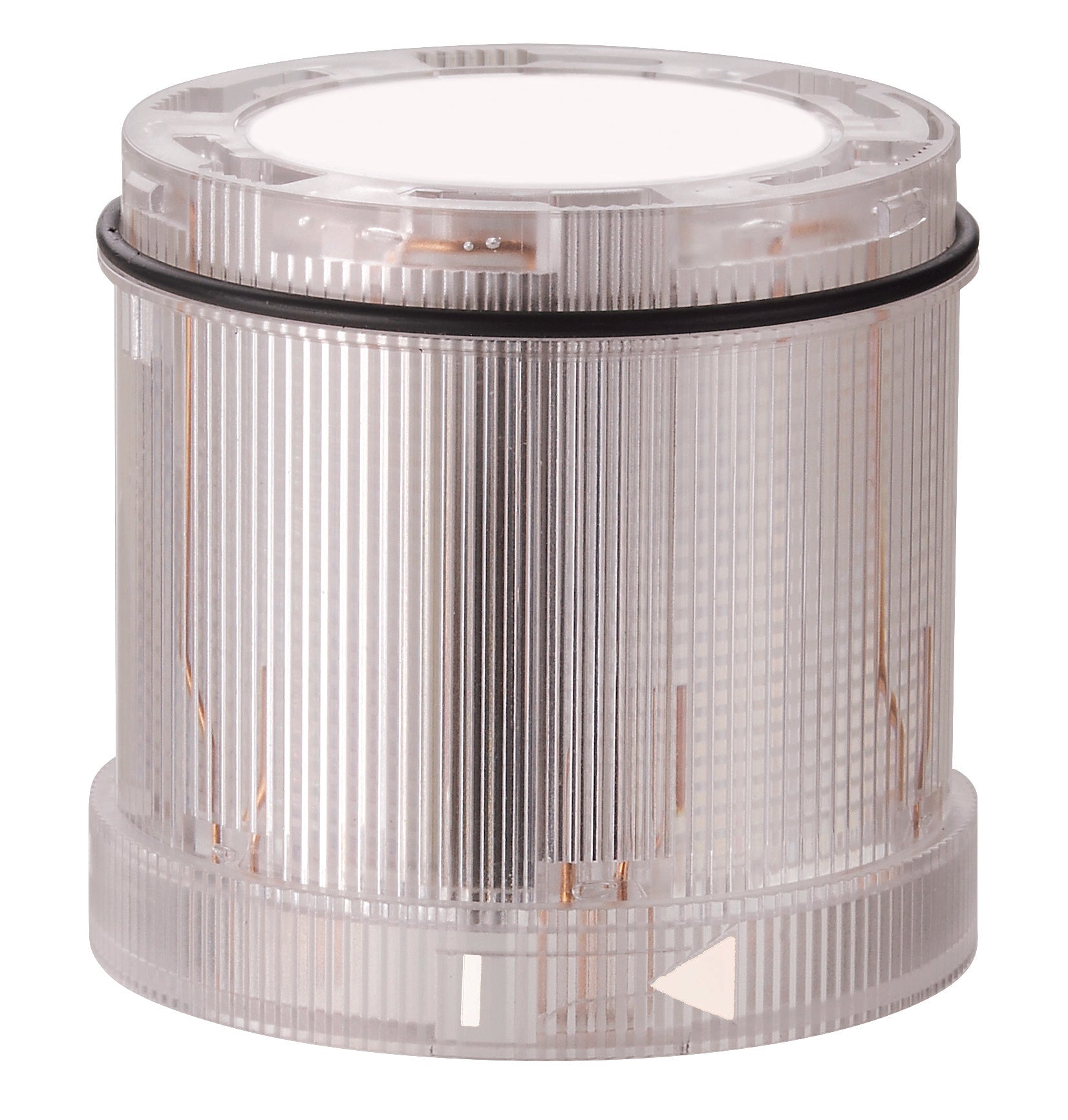

LED TwinLIGHT element suitable for KombiSIGN 72

• The TwinLIGHT light element combines two light image functions
• Light colour green is generated via coloured LEDs.
• Suitable for the modular KombiSIGN 72 signal tower in DesignLOOK.
• Please order the required connection element separately.

Technical Data

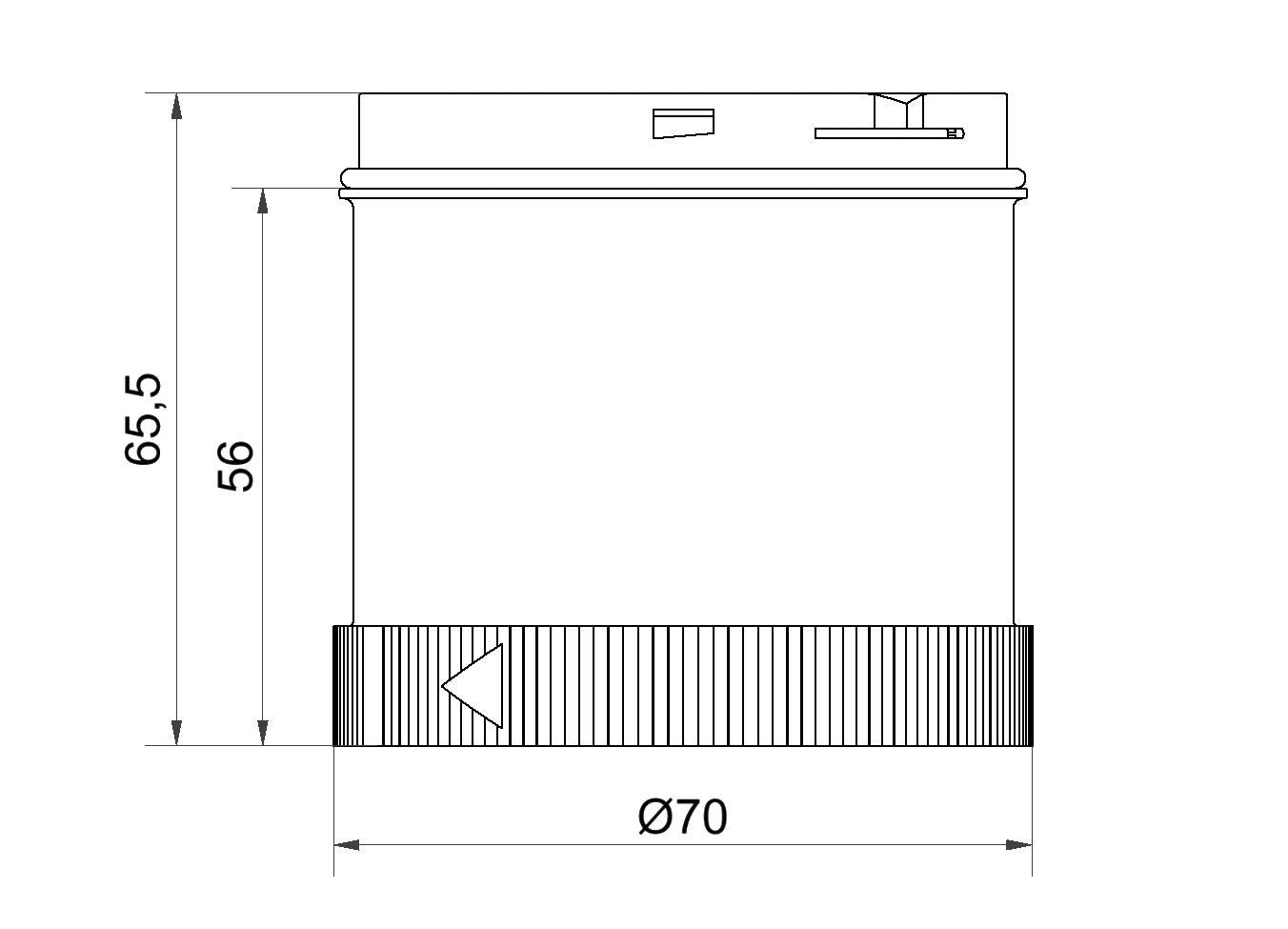

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome colour: Clear
• Protection category: IP65
• Working temperature minimum: -30°C
• Working temperature maximum: +60°C
• Weight with packaging: 90.00 g
• Product weight: 78.00 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 80.00 mA
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3

Optical Data

• Light source: LED
• Optical signal image: Blink; Permanent; TwinLight
• Blink frequency: 1 Hz
• Service life optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• MTTF-value [years]: No
• Conforms with TÜV: No
