K37 plug EM 24VAC/DC GN/RD

Product Information

Article Number: 698.220.75

Type of Fixing: Built-in mounting

Product Info

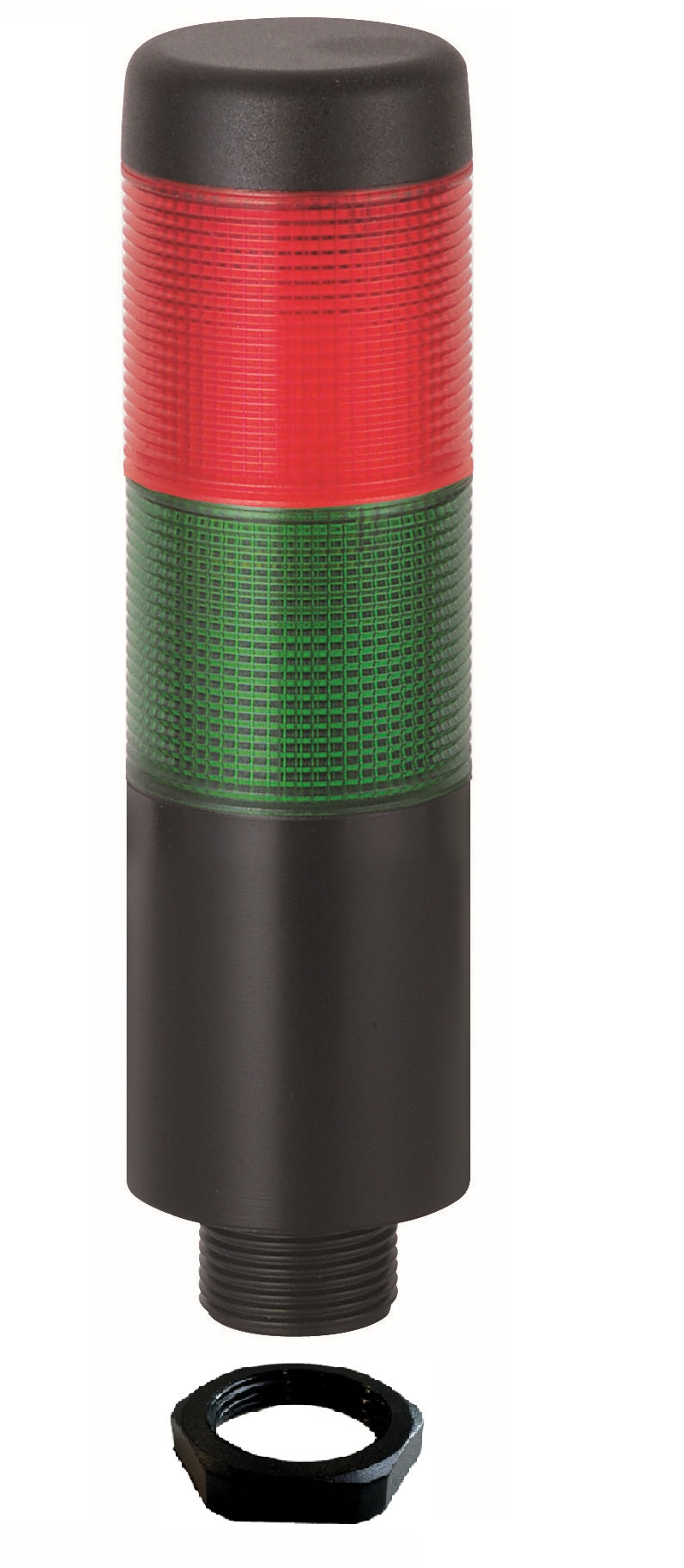

Ready-configured signal tower with 2 optical levels (green/red)

• LED permanent light with M12 connector
• Also available in attractive metallic design and clear dome

Technical Data

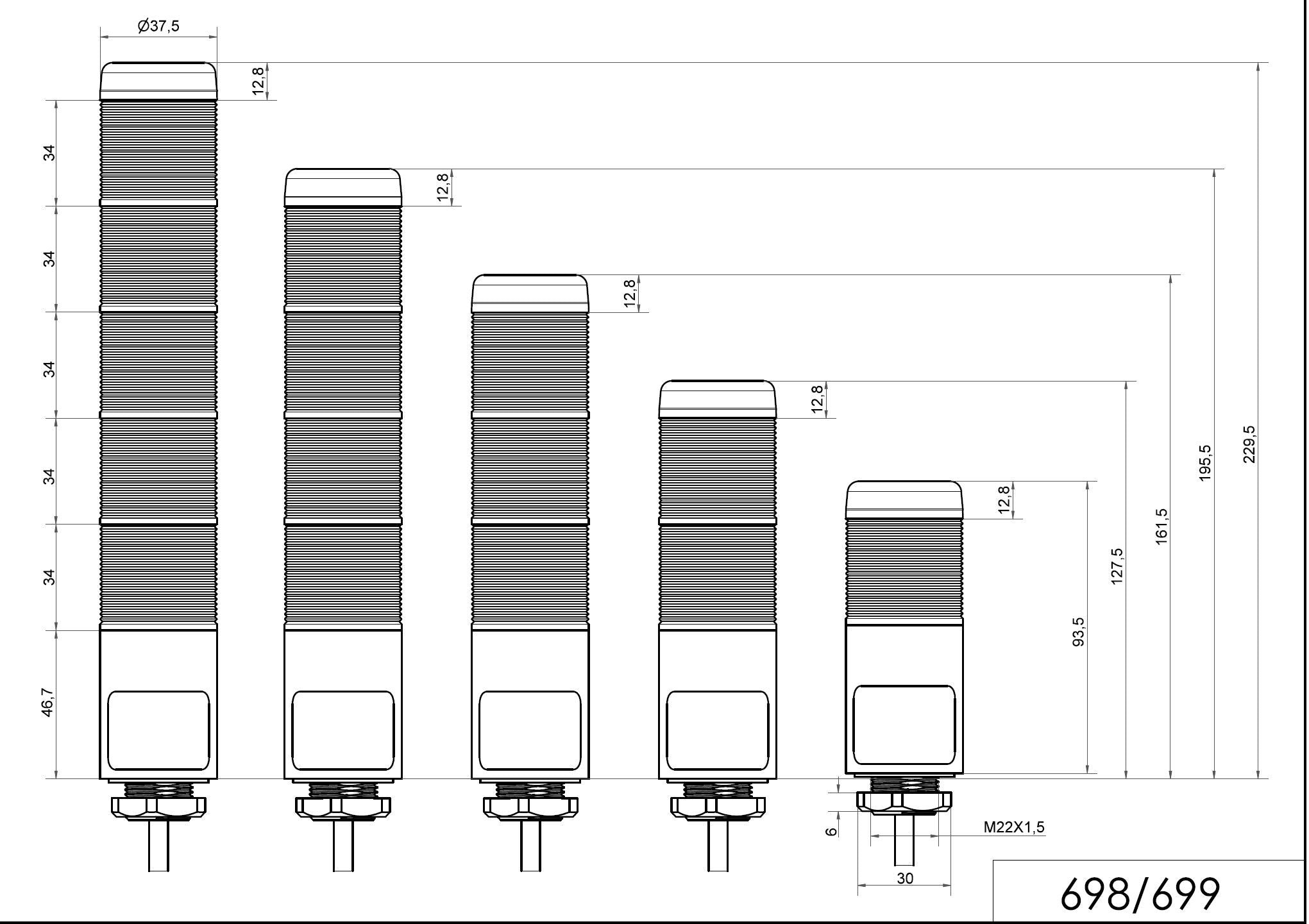

Mechanical Data

• Height: 141.00 mm
• Diameter: 38.00 mm
• Materials: PC
• Housing Colour: Black
• Dome Colour: Green; Red
• Protection Category: IP65
• Connection: M12 plug 5-pole
• Cable Entry: Membrane grommet
• Cable Entry Minimum: d = 1 mm
• Type of Fixing: Built-in mounting
• Cable Entry Maximum: d = 9 mm
• Working Temperature Minimum: -20°C
• Cable Length: 150.00 mm
• Working Temperature Maximum: +50°C
• Tension Relief: Pull-out protection
• Weight with Packaging: 112.00 g
• Product Weight: 73.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 70.00 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3; In the connection area: 2

Optical Data

• Light Source: LED
• Optical Signal Image: Permanent
• Service Life Optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
