Product Information

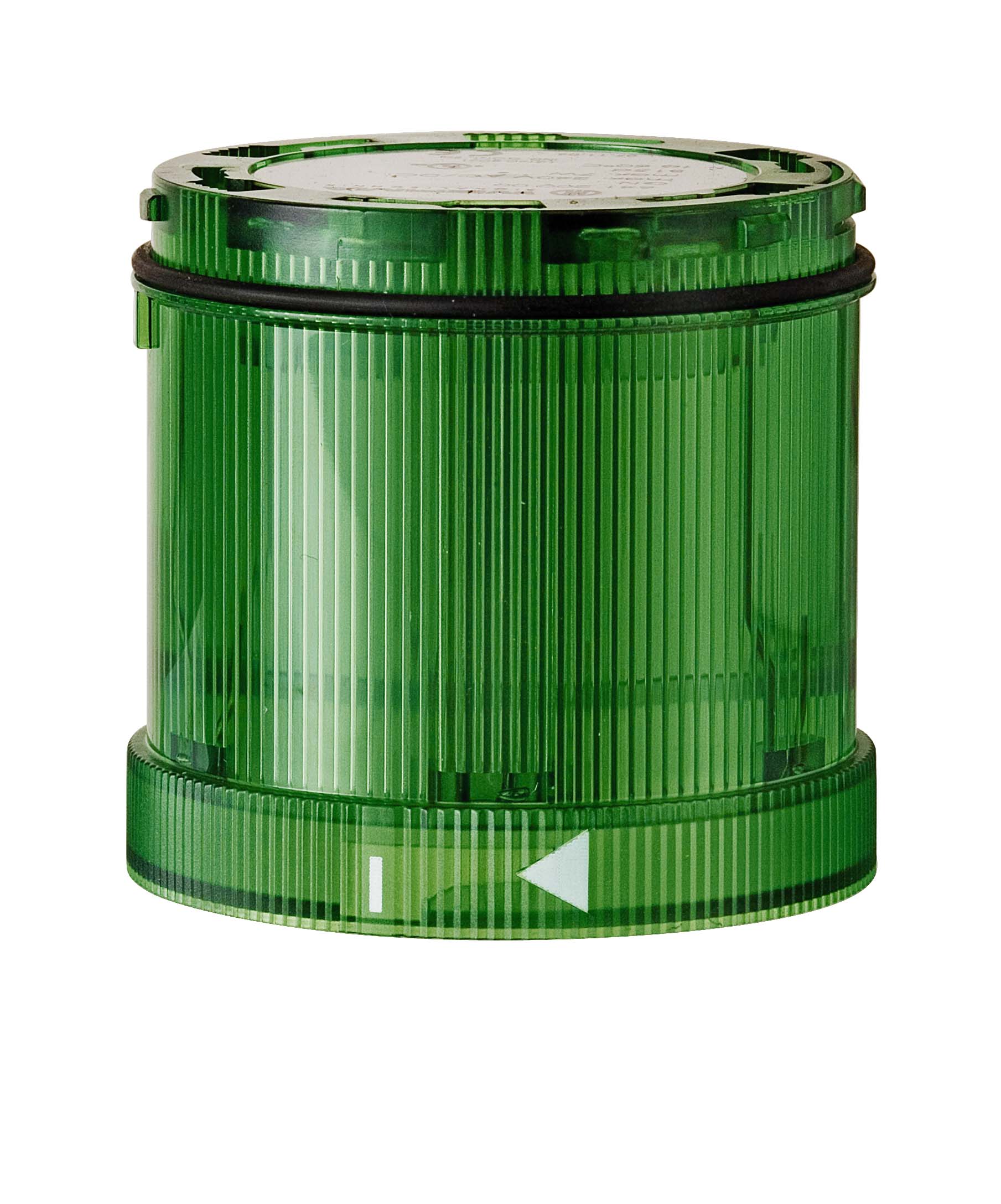

LED Rotating light el. 24VAC/DC GN

Article Number: 644.230.75

Product Info

LED running light from the KombiSIGN series

• The chaser control of the LEDs increases the signalling effect.
• Intensive all-round effect with very low power consumption.

Technical Data

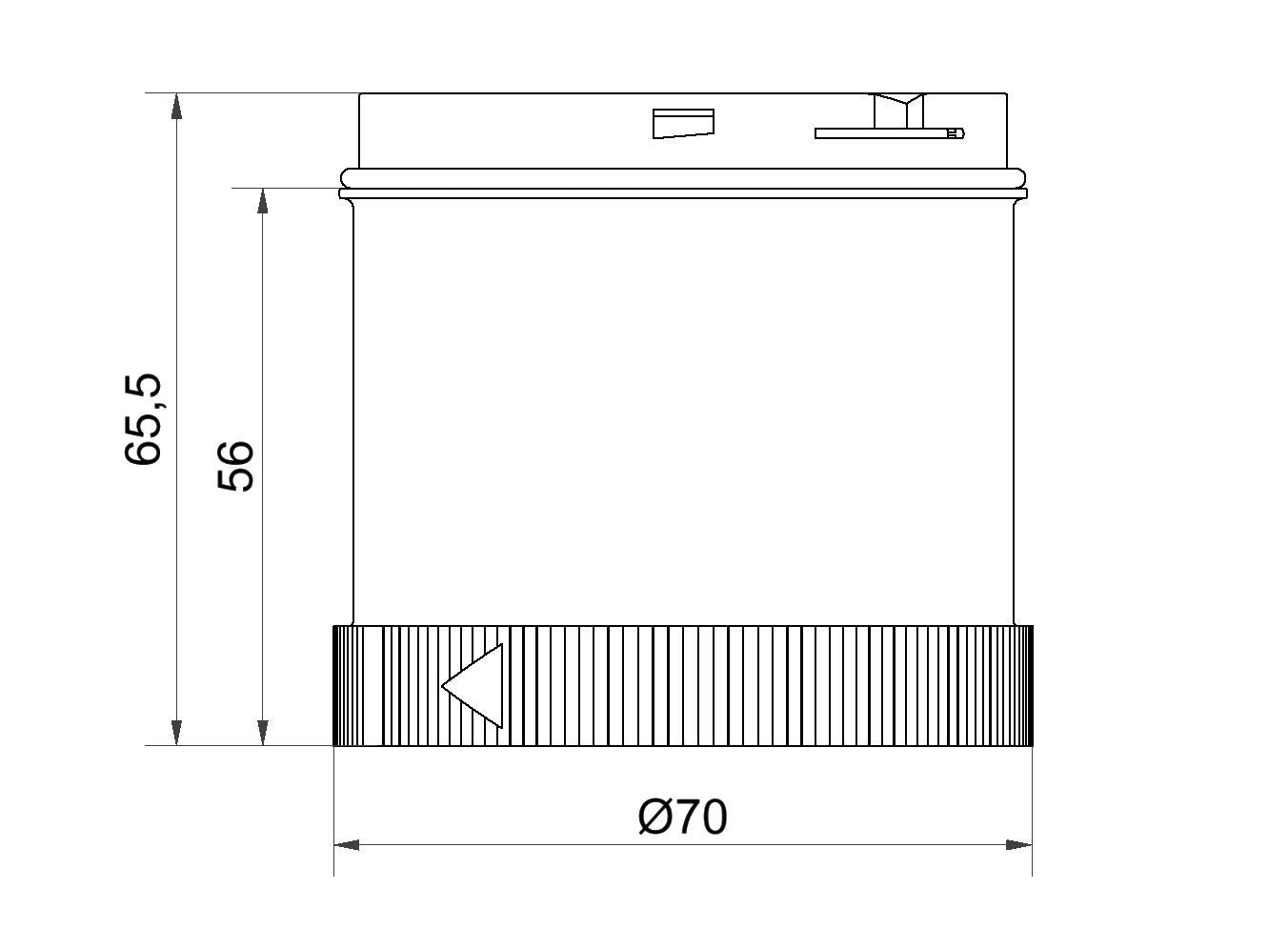

Mechanical Data

• Height: 66 mm
• Diameter: 70 mm
• Materials: PC
• Dome Colour: Green
• Protection Category: IP65
• Working Temperature Minimum: -20°C
• Working Temperature Maximum: +50°C
• Weight with Packaging: 84 g
• Product Weight: 69 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: AC/DC
• Operating Voltage Frequency: 50Hz
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 40 mA
• Rated Inrush Current: 500 mA
• Protection Class: Protection class 2
• Pollution Degree: 3

Optical Data

• Light Source: LED
• Optical Signal Image: Revolving
• Service Life Optical: 100,000 h maximum
• Rotation Speed: 120 rpm

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.21 MB)
• Operating Instructions (1.16 MB)
• Dimensional Drawing (0.06 MB)
• CAD Model STP (1.75 MB)
