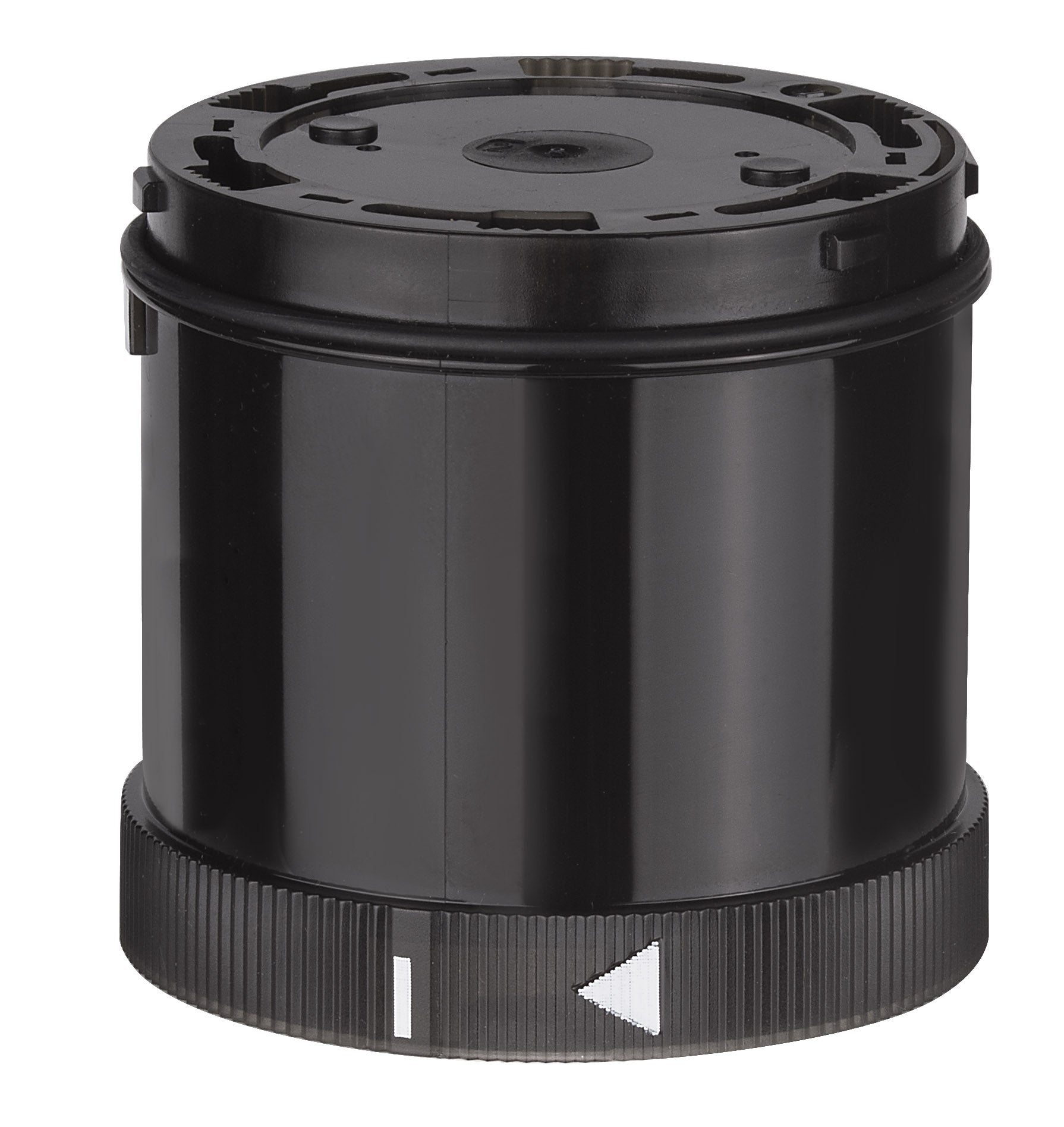

Element IO-Link KS71/72 24VDC BK

Article Number: 646.840.55

Product Info

Description: IO-Link element suitable for KombiSIGN 71 series

• Element with integrated IO-Link interface.
• Simplified control of the complete signal tower via an IO-Link master.
• Suitable for the modular signal towers KombiSIGN 71 and KombiSIGN 72.
• Please order the required connection element separately.

Technical Data

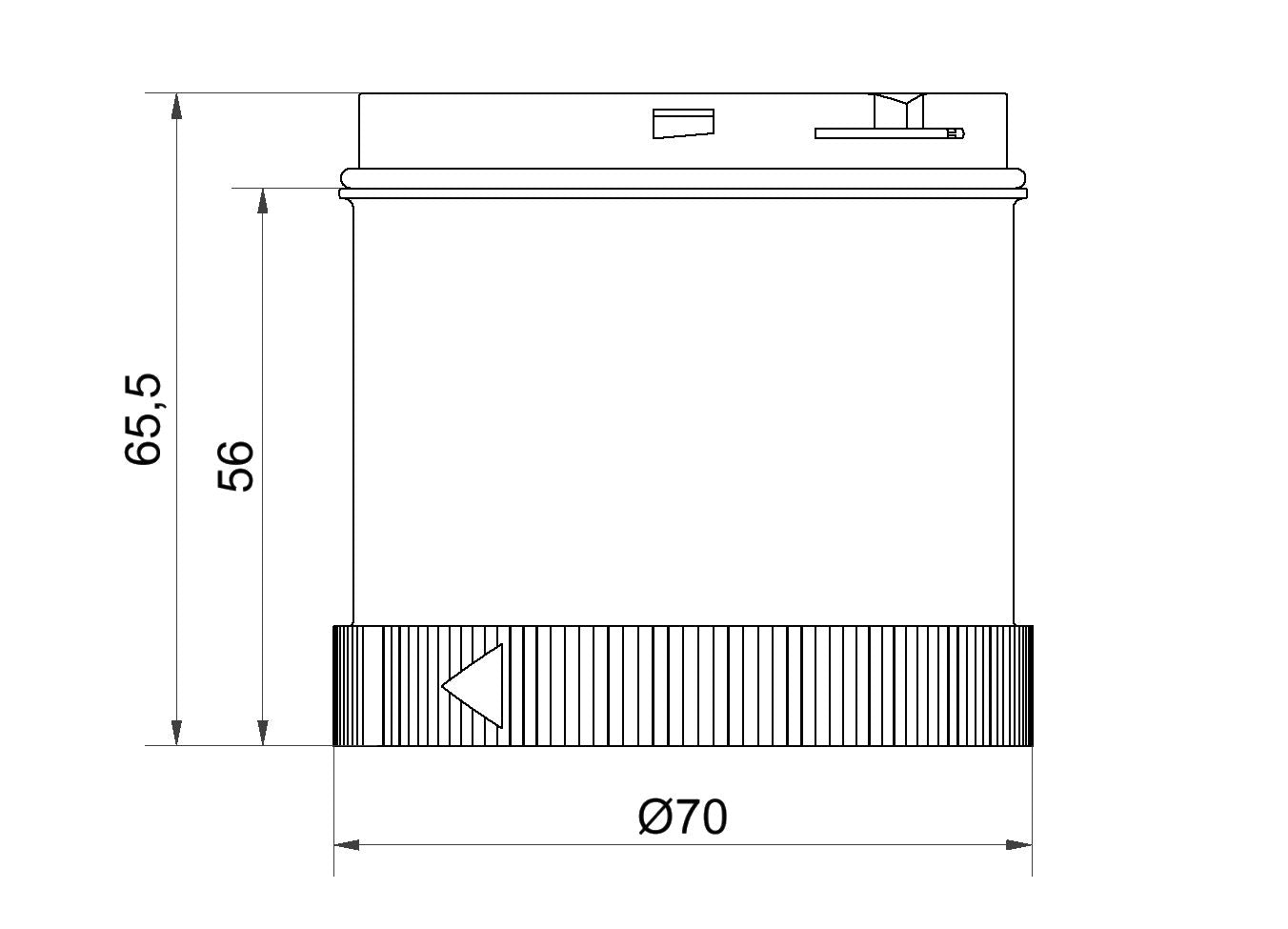

Mechanical Data

• Height: 66.00 mm
• Diameter: 70.00 mm
• Materials: PC
• Dome Colour: Black
• Protection Category: IP65
• Connection: IO-Link
• Working Temperature Minimum: -30°C
• Working Temperature Maximum: +60°C
• Weight with Packaging: 78.00 g
• Product Weight: 59.00 g

Electrical Data

• Operating Voltage: 24V
• Operating Voltage Type: DC
• Operating Voltage Tolerance: +/- 10%
• Rated Operational Voltage: 24 VDC
• Rated Operational Current: 6.00 A
• Protection Class: Protection class 2
• Pollution Degree: 3
• Connectivity: IO-Link

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• MTTF Value [years]: No
• Conforms with TÜV: No
