Product Information

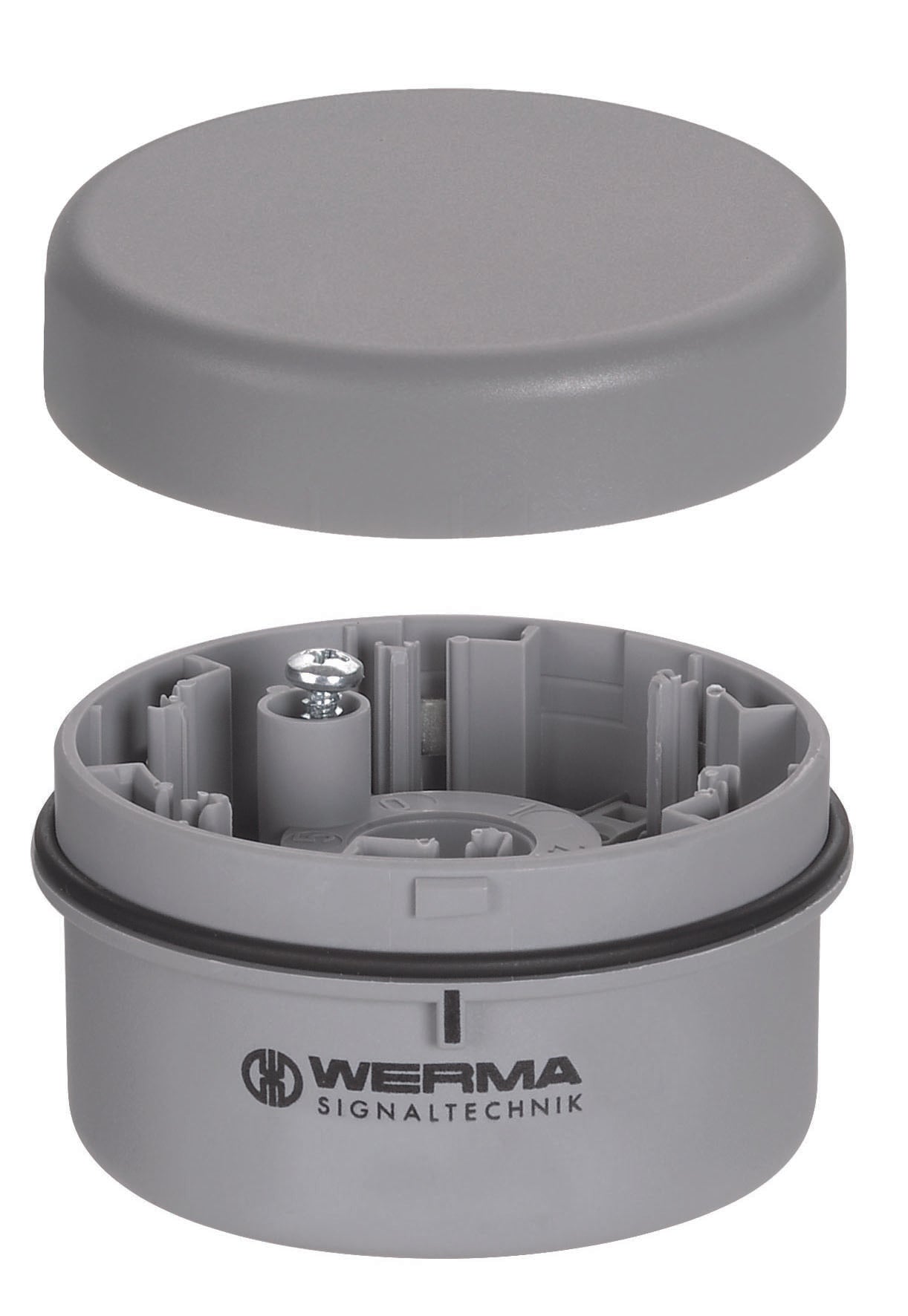

Terminal element RM 12-230VAC/DC GY

Article Number

640.910.00

Type of Fixing

Tube mounting

Product Info

Suitable for the KombiSIGN 72 modular signal tower in DesignLOOK.

• Connection element for tube mounting (tube Ø 25 mm).
• Please order accessories separately.

Technical Data

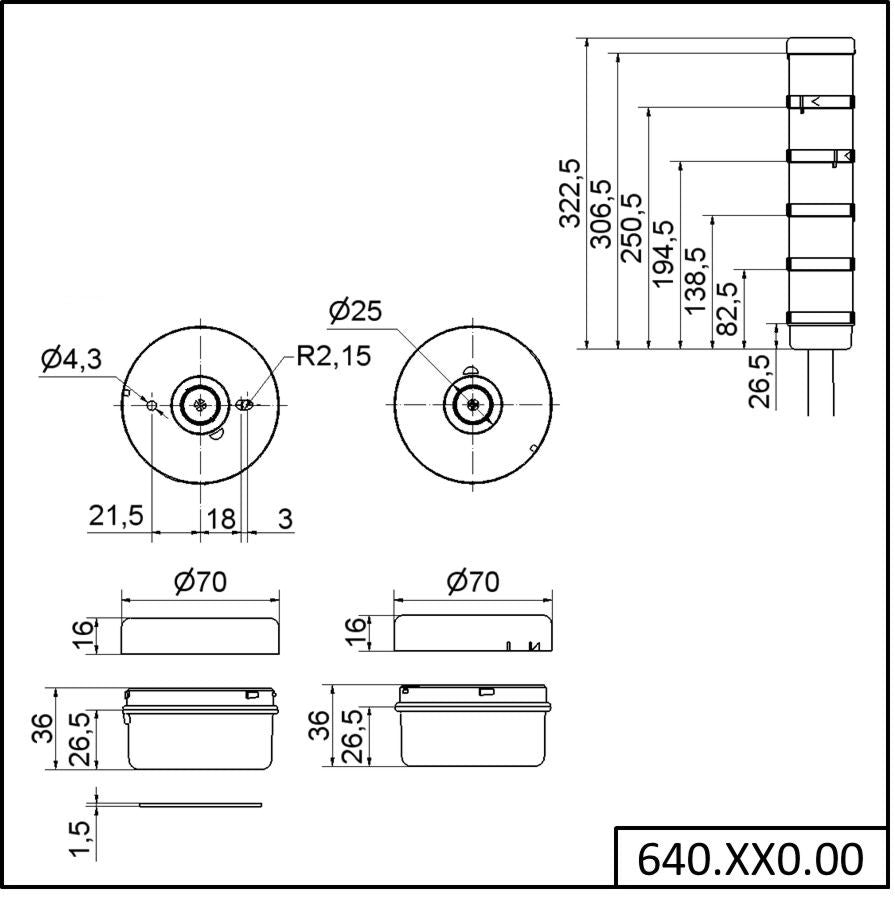

Mechanical Data

• Height: 36.00 mm
• Diameter: 70.00 mm
• Materials: PA-GF; PC
• Housing Colour: Grey
• Protection Category: IP65
• Connection: Spring-type terminal
• Cross-sectional area minimum: 0.25 mm² / 24 AWG
• Cross-sectional area maximum: 1.50 mm² / 16 AWG
• Type of fixing: Tube mounting
• Cable entry maximum: d = 11 mm
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Weight with packaging: 96.00 g
• Product weight: 78.00 g

Electrical Data

• Operating voltage: 12-230V
• Operating voltage type: AC/DC
• Protection class: Protection class 2
• Pollution degree: 3
• Overvoltage category: II
• Isolation voltage: Ui = 250V; Uimp = 2.500V

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with CMIM: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
