Product Information

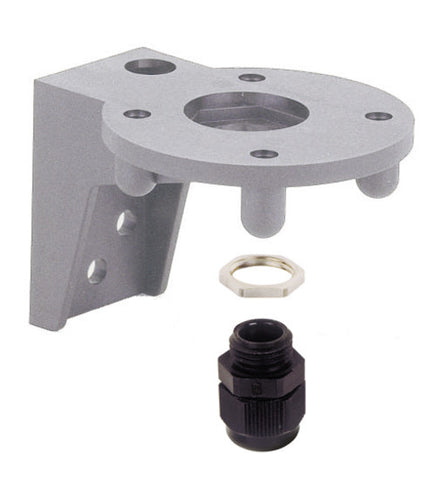

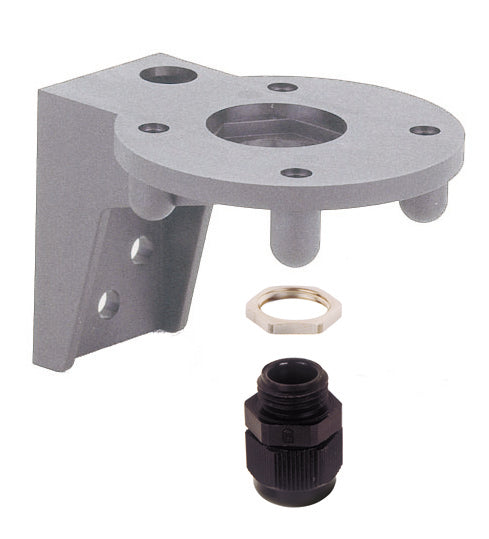

Bracket for base mount. GY

Article Number: 960.000.54

Product Info

Cable gland is included in delivery.

Technical Data

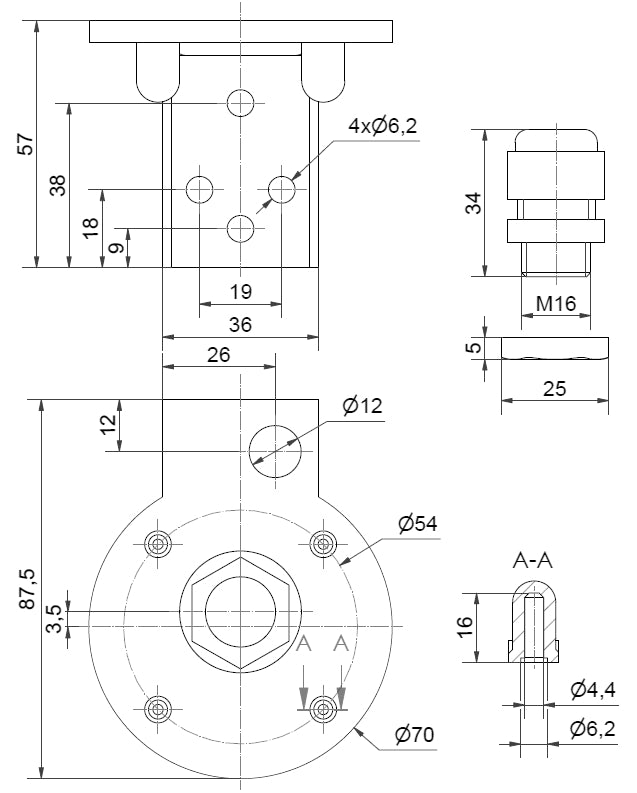

Mechanical Data

• Length: 70.00 mm
• Diameter: 71.00 mm
• Width: 88.00 mm
• Height: 57.00 mm
• Materials: PA-GF
• Housing Colour: Grey
• Weight with Packaging: 60.00 g
• Product Weight: 60.00 g

Authorisation Data

• Conforms with CE: No
• Conforms with RoHS directive: No
• WEEE: No
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: No
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: No
• Conforms with UKCA (Importer): No
• ICAO Certification: No
• Conforms with AS-I: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.23 MB)
• CAD Model STP (0.21 MB)
• CAD Model STP (0.87 MB)
