K37cl sr plug EM 24VAC/DC GN/YE/RD

Article Number: 698.410.75

Type of fixing: Built-in mounting

Product Information

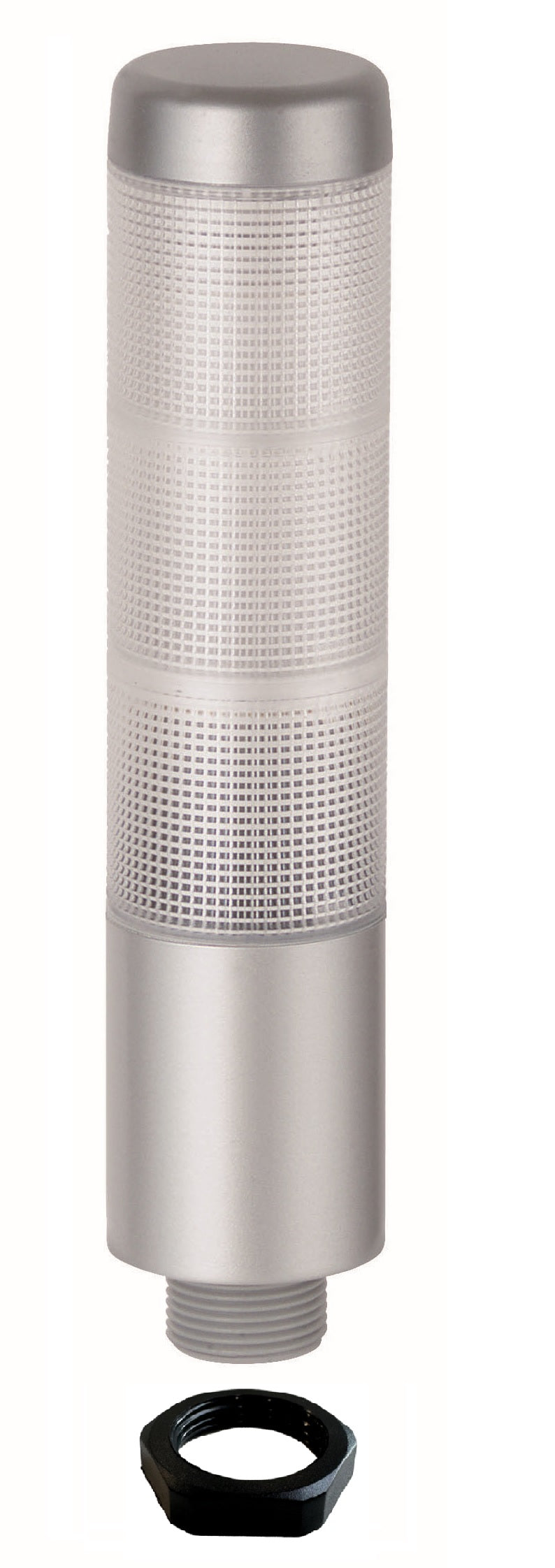

Ready-configured signal tower with 3 optical levels (green/yellow/red)

• LED permanent light
• With M12 connector

Technical Data

Mechanical Data

• Height: 175.00 mm
• Diameter: 38.00 mm
• Materials: PC
• Housing colour: Silver
• Dome colour: Clear
• Protection category: IP65
• Connection: M12 plug 5-pole
• Cable entry: Membrane grommet
• Cable entry minimum: d = 1 mm
• Type of fixing: Built-in mounting
• Cable entry maximum: d = 9 mm
• Working temperature minimum: -20°C
• Working temperature maximum: +50°C
• Cable length: 150.00 mm
• Tension relief: Pull-out protection
• Weight with packaging: 131.00 g
• Product weight: 87.00 g

Electrical Data

• Operating voltage: 24V
• Operating voltage type: AC/DC
• Operating voltage frequency: 50Hz
• Operating voltage tolerance: +/- 10%
• Rated operational voltage: 24 VDC
• Rated operational current: 100.00 mA
• Rated inrush current: 500 mA
• Protection class: Protection class 2
• Pollution degree: 3; In the connection area: 2

Optical Data

• Light source: LED
• Optical signal image: Permanent
• Service life optical: 50,000 h maximum

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS directive: Yes
• WEEE: Yes
• Conforms with ATEX-directive: No
• Conforms with CCC: No
• Conforms with UL: cULus
• UL Type Rating: Type 12
• Conforms with FCC: No
• Conforms with IC: No
• EAC certificate available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• ICAO Certification: No
• Conforms with DNV: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No

Downloads and Tone Type

• Datasheet (0.45 MB)
• Operating instructions (0.85 MB)

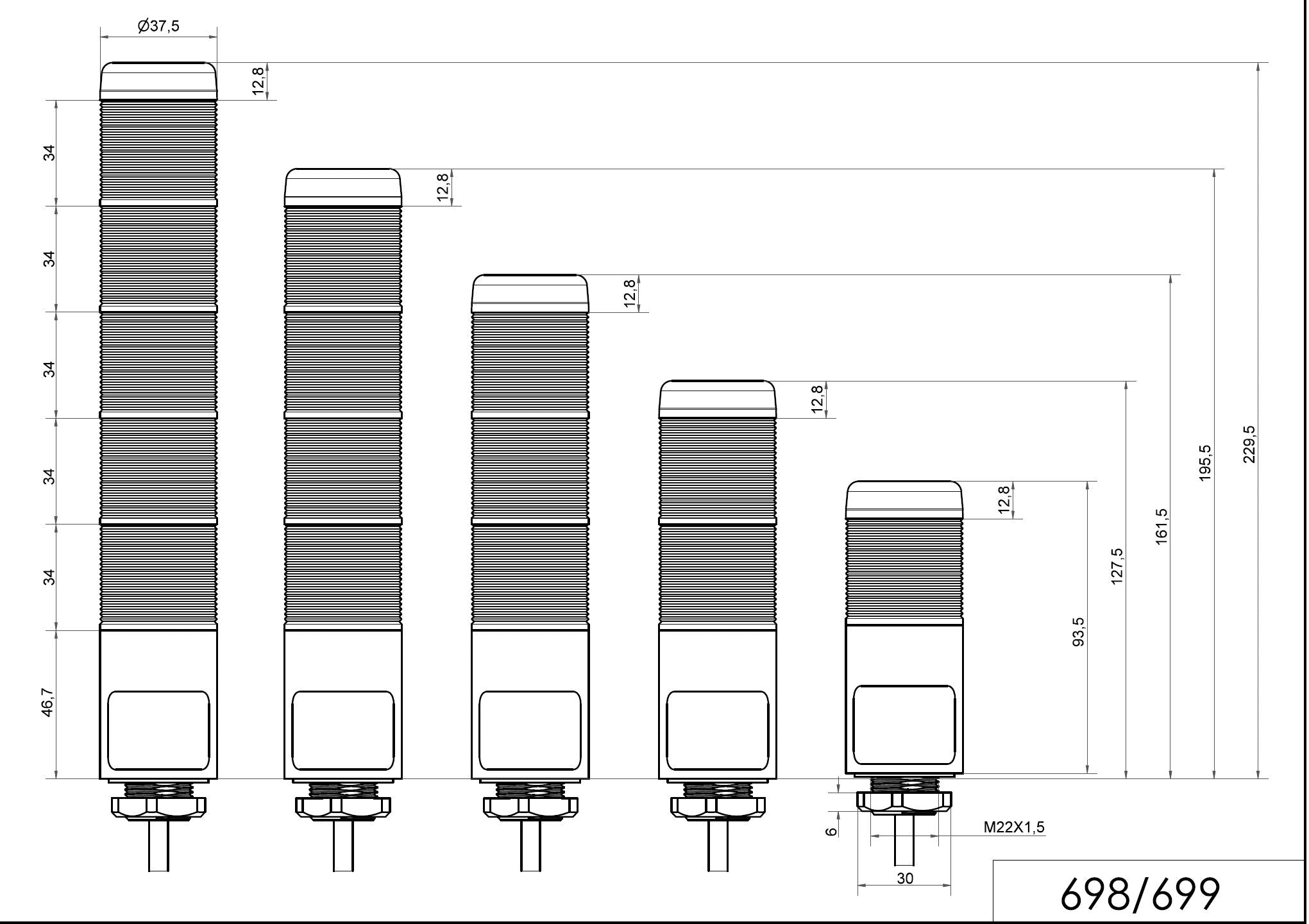

• Dimensional drawing (0.24 MB)
• CAD Model STP (2.78 MB)
