Description

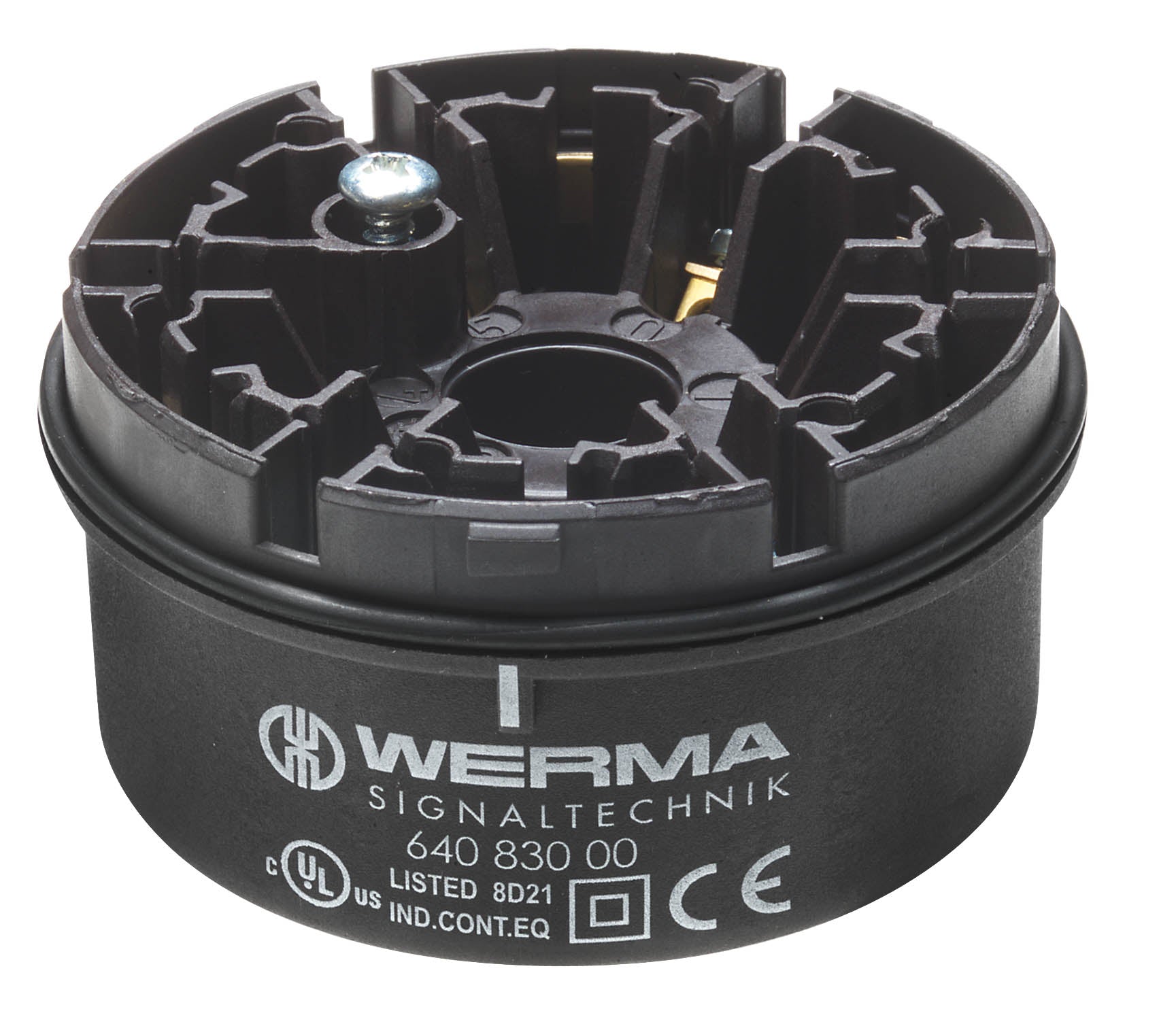

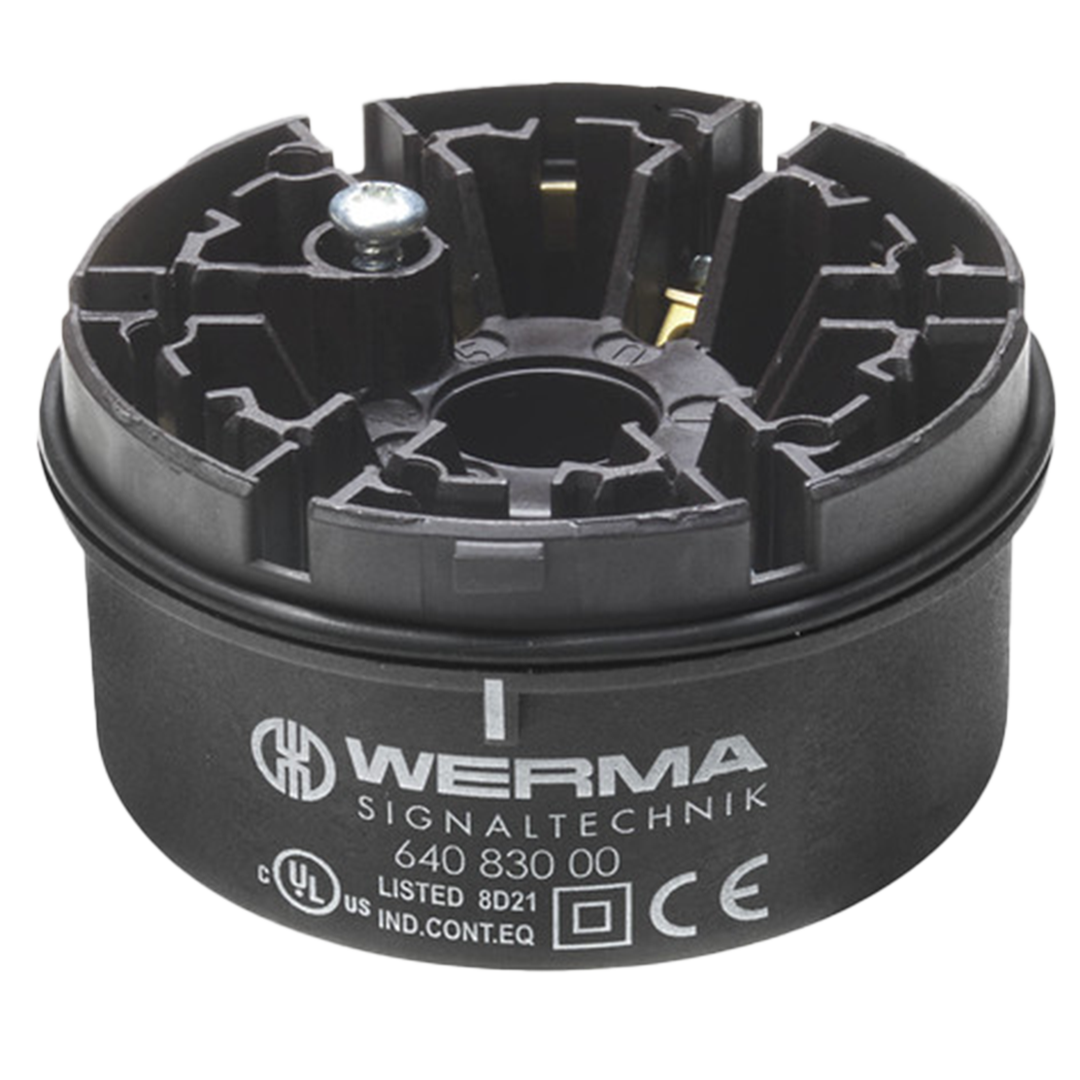

xWerma's Terminal element screwable conn. RM 12-2 is the right solution for any type of mounting due to a wide range of accessories. Designed with a bayonet fixture ensures simple screw terminals mounting and removal of signal elements. The Terminal element works with both KombiSIGN 71 and KombiSIGN 74.
Specifications
x| IP Rating | IP65 |
| Protection Against Impact | Class II |
| Temperature: Operating / Dynamic | -20°C to 50°C |
| Material: Housing / Grip | PA-GF PC |
| Part Height (mm) | 43mm |
| Part Diameter (mm) | 70mm |
| Weight (g) | 88g |
| Conductor Cross-section | 0,25mm²; 24AWG / 1,50mm²; 16AWG |
| Connection Style | Screw terminals |
| Operating Voltage | 12 - 230 V (AC / DC) |
| Mounting Type | Tube mounting |
| Colour | Black |
