Product Information

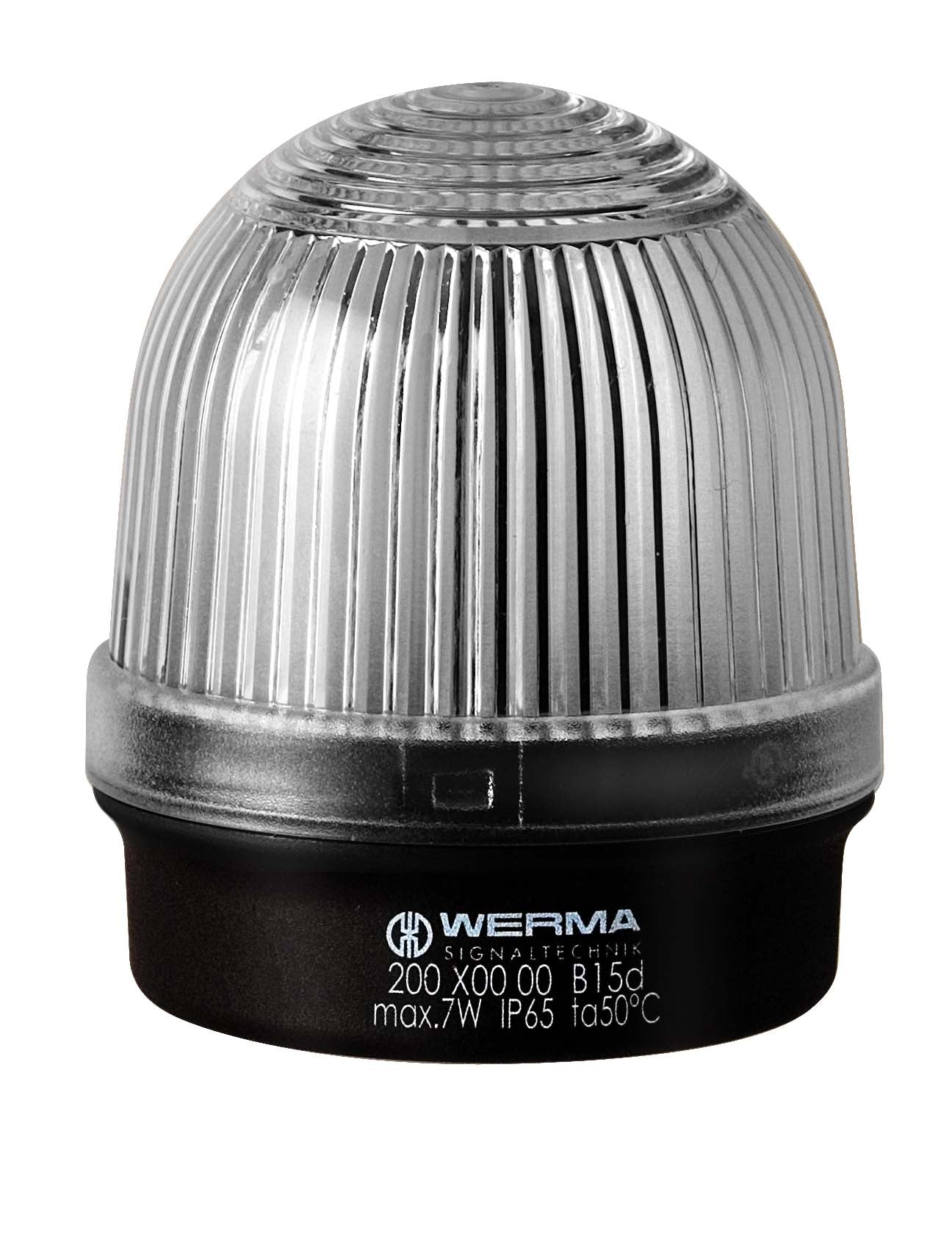

Permanent Beacon BM 12-230VAC/DC CL

Article Number

200.400.00

Type of Fixing

Base mounting

Light Colour

Choose a Light colour

Voltage

12-230V AC/DC

Technical Data

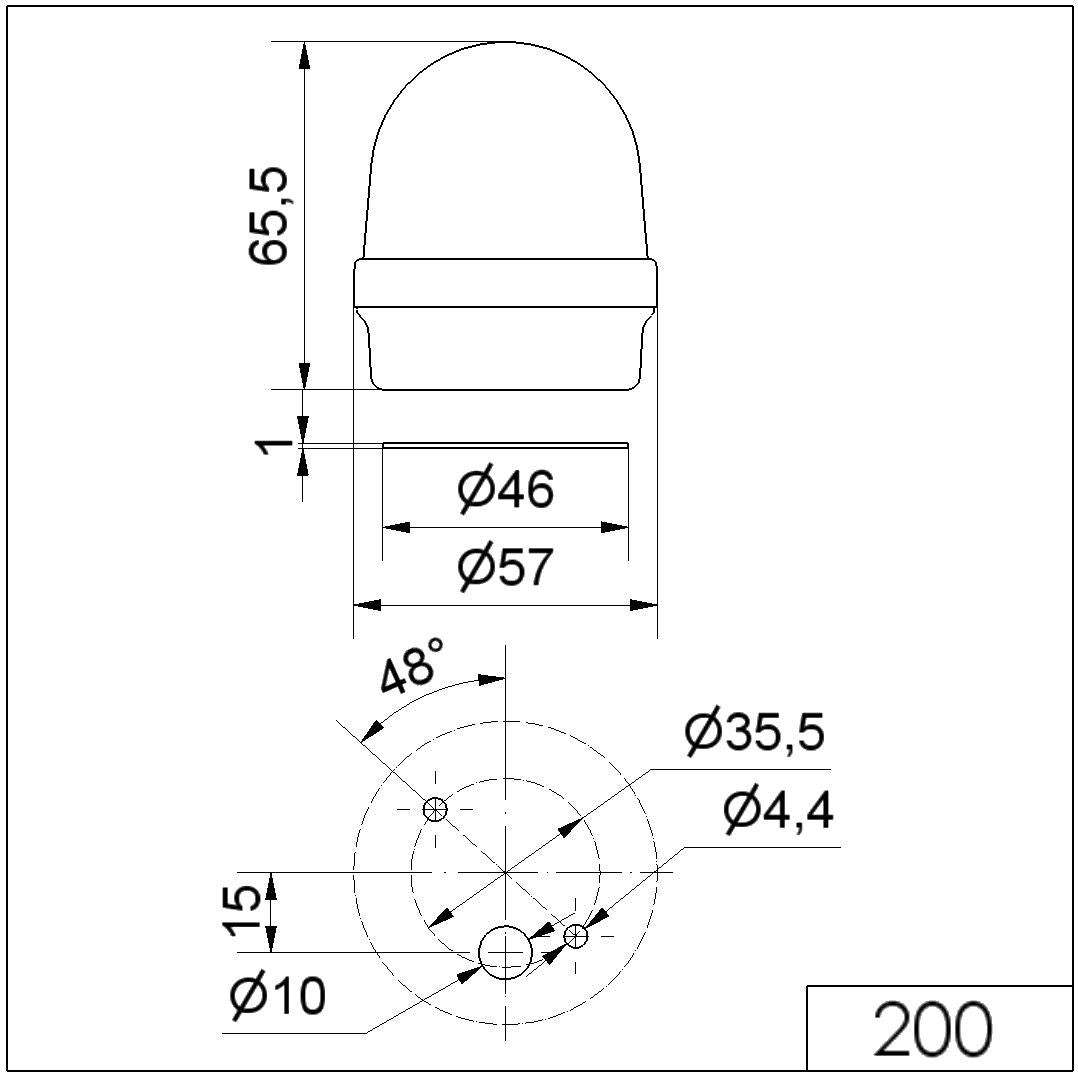

• Height: 66.00 mm
• Housing Colour: Black
• Diameter: 57.00 mm
• Protection Category: IP65
• Materials: PA-GF; PC
• Working Temperature Minimum: -20°C
• Dome Colour: Clear
• Working Temperature Maximum: +50°C
• Weight with Packaging: 69.00 g
• Product Weight: 47.00 g
• Connection: Spring-type terminal
• Cross-sectional Area Maximum: 2.50 mm² / 14 AWG
• Cable Entry: Through hole
• Cable Entry Maximum: d = 10 mm

Electrical Data

• Operating Voltage: 12-230V
• Operating Voltage Type: AC/DC
• Protection Class: Protection class 2
• Pollution Degree: 3
• Isolation Voltage: Ui = 250V; Uimp = 2.500V
• Overvoltage Category: II

Optical Data

• Optical Signal Image: Permanent
• Lamp Fitting/Socket: B15d
• Service Life Optical: Depends on bulb

Authorisation Data

• Conforms with CE: Yes
• Conforms with RoHS Directive: Yes
• WEEE: Yes
• Conforms with ATEX Directive: No
• Conforms with CCC: Yes
• Conforms with UL: cULus
• Conforms with FCC: No
• UL Type Rating: Type 12
• Conforms with IC: No
• EAC Certificate Available: Yes
• Conforms with UKCA (Importer): Yes
• Conforms with AS-I: No
• Conforms with DNV: No
• ICAO Certification: No
• Conforms with RoHS CN: No
• Conforms with VdS: No
• Conforms with TÜV: No
